50 A2 straight connector
Item no. 6066629 | EAN 4012195863861
- Product description
-
Product description

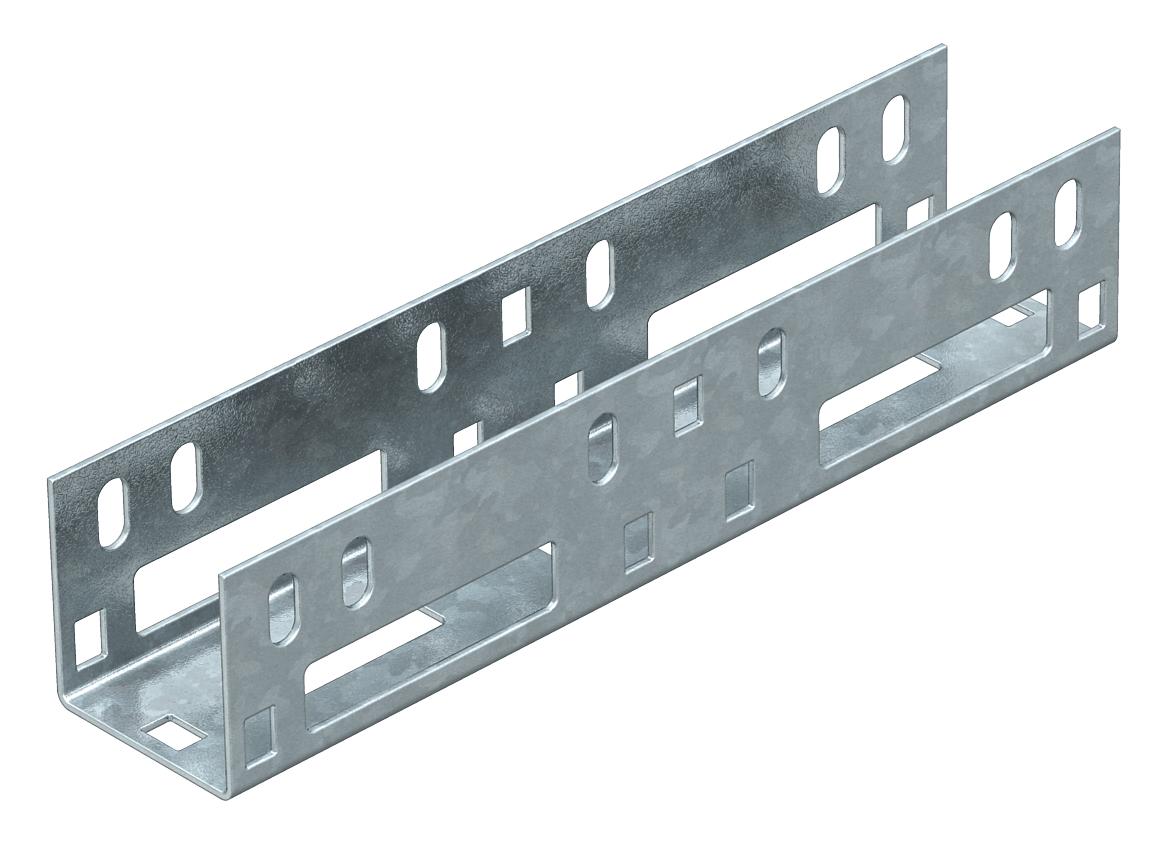

Straight connector for connection of luminaire support channels and AZ channels.
-
- Technical data
-
Technical data

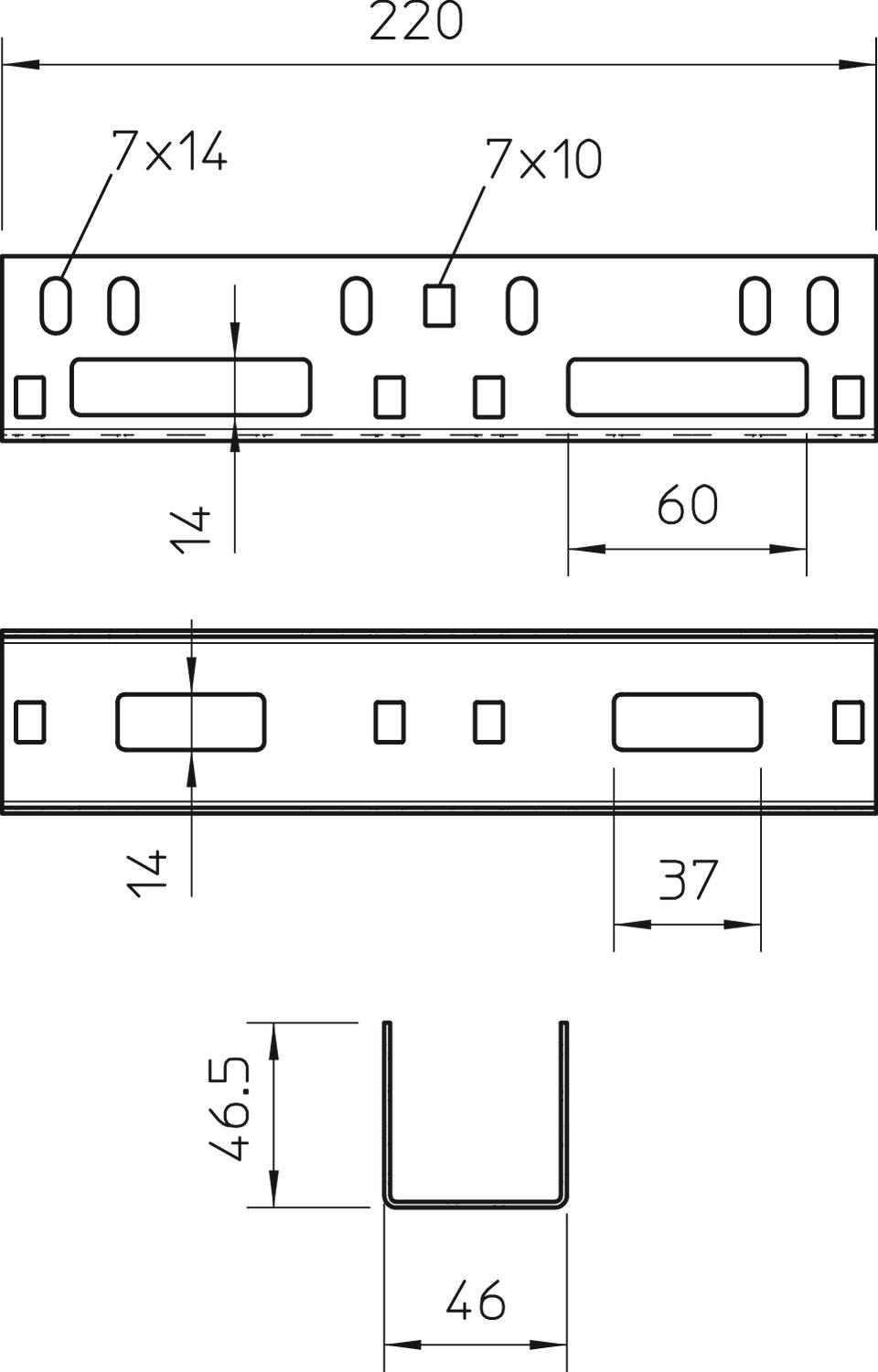

Adjustable connector, horizontal no Articulated connector, vertical no Colour stainless steel Connection type Screw connector Dimension 45x45x220 Dimension 45x45x220 Height 45 mm Material Stainless steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 45 mm Suitable for mesh cable tray no Surface Bright, treated Version for Straight connector Width 45 mm - All types
- Downloads
-
Data sheet VF AZK 50 A2 / 6066629 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity VF AZK 50 A2 / 6066629 , 0.13MB , pdfREACH Declaration of conformity VF AZK 50 A2 / 6066629 , 0.12MB , pdfRoHS Declaration of conformity VF AZK 50 A2 / 6066629 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
