90° bend 160 FT

Item no. 6229425 | EAN 4012196172092

2 mm
Product description
Product description

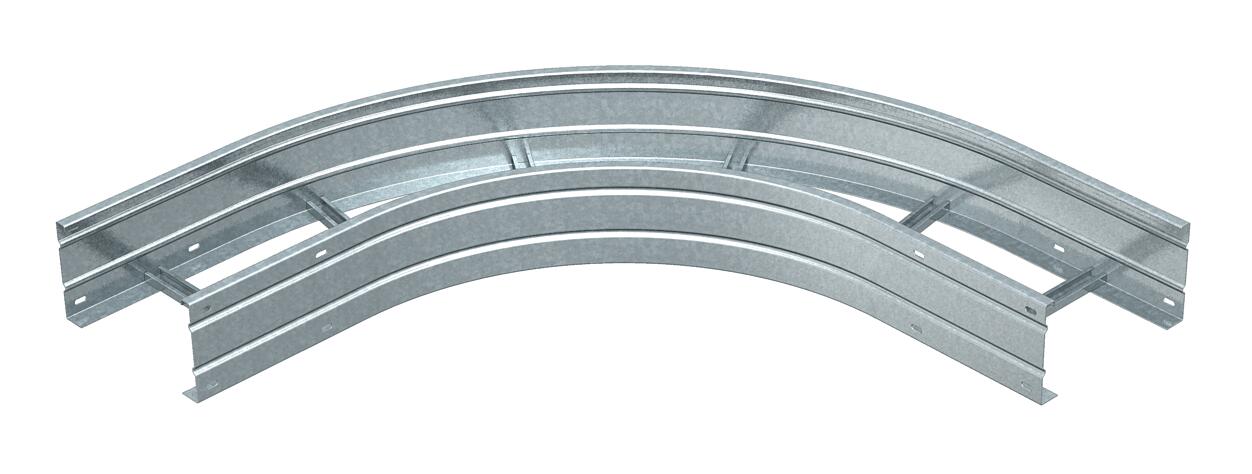

90° bend, horizontal, for all wide span cable ladders of 160 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 160 mm
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Colour zinc
Dimension 160x200
Dimension B 200 mm
Dimension R 200 mm
Height 160 mm
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile unperforated
Wide-span version yes
Width 200 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
WLB 90 162 FT 200 mm 2 mm 6229425
1 piece
WLB 90 163 FT 300 mm 2 mm 6229433
1 piece
WLB 90 164 FT 400 mm 2 mm 6229441
1 piece
WLB 90 165 FT 500 mm 2 mm 6229468
1 piece
WLB 90 166 FT 600 mm 2 mm 6229476
1 piece
Downloads

Download

EU declaration of conformity WLB 90 162 FT / 6229425 , 0.11MB , pdf
Download
UK Declaration of Conformity WLB 90 162 FT / 6229425 , 0.09MB , pdf
Download
REACH Declaration of conformity WLB 90 162 FT / 6229425 , 0.12MB , pdf
Download
RoHS Declaration of conformity WLB 90 162 FT / 6229425 , 0.12MB , pdf
Download

Download
Download

WLB 90 162 FT / 6229425
