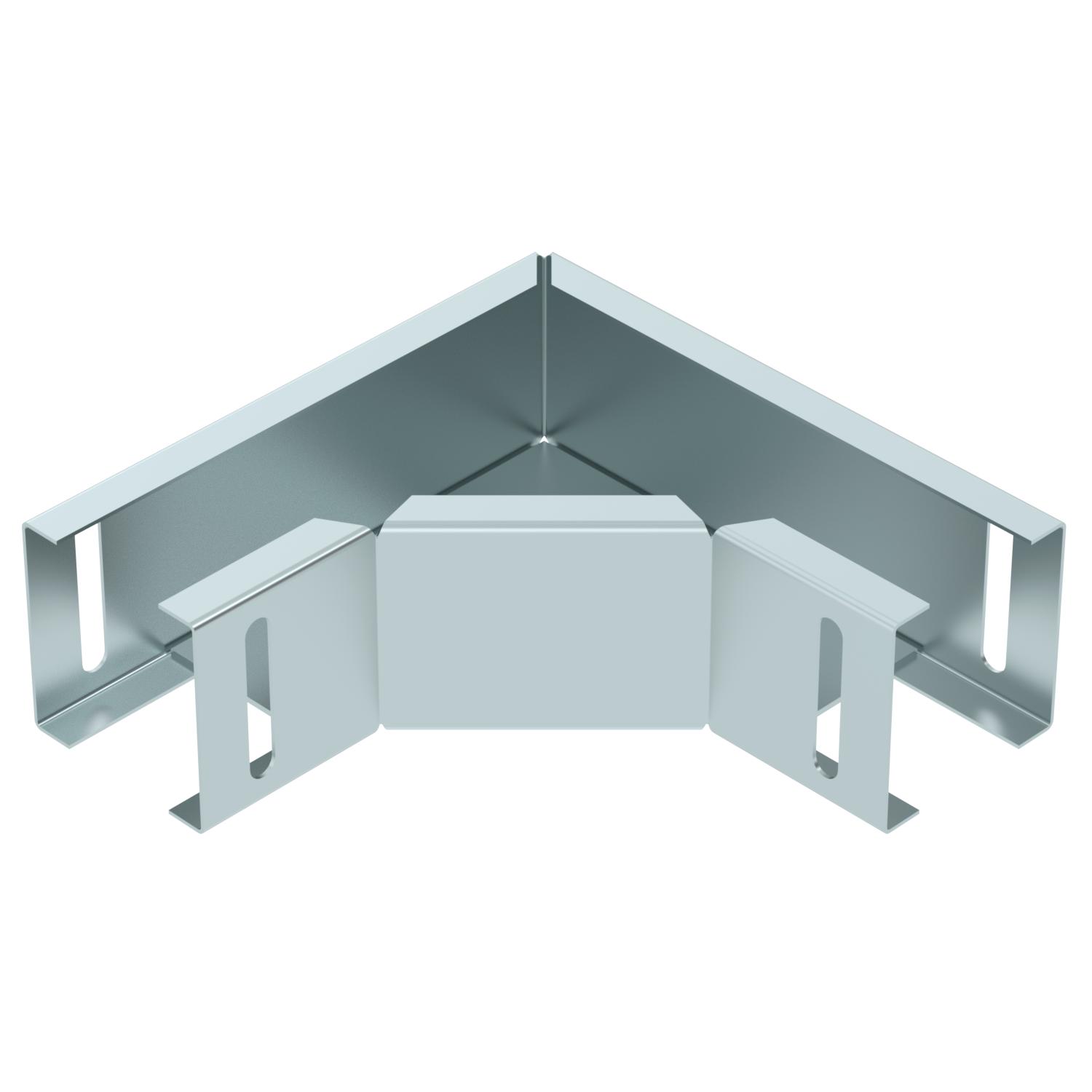

90° bend
Item no. 6074901 | EAN 4012195453451
- Product description
-
Product description90° bend, horizontal, for AZ small duct AZK 050 and luminaire support channel LTS 50.
-
- Technical data
-
Technical data

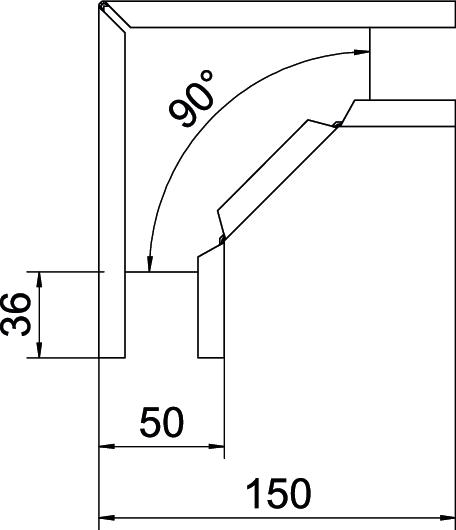

Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension 50x50 Height 50 mm Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanised zinc/aluminium, Double Dip Wide-span version no Width 50 mm - All types
- Downloads
-
Data sheet LTS B DD / 6074901 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LTS B DD / 6074901 , 0.13MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
