90° mesh cable tray bend FT

Item no. 6002323 | EAN 4012196002177

no
Product description
Product description
90° bend, horizontal, for all mesh cable trays of 105 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 105 mm
Technical data

Technical data

Bend (angle) 90°
Colour zinc
Connector version Without connectors

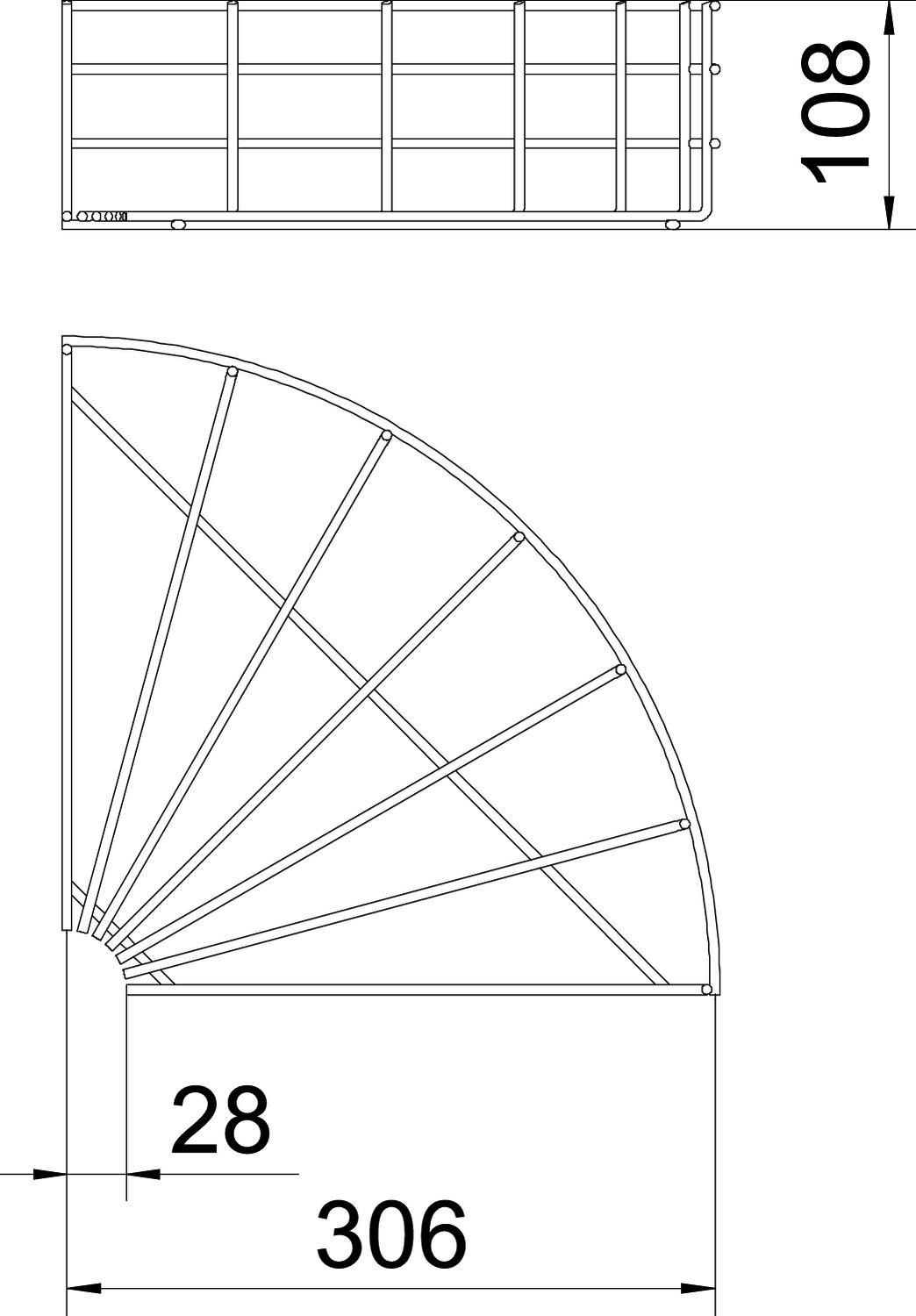

Dimension 105x300
Dimension A 28 mm
Dimension B 306 mm
Dimension H 108 mm
Height 105 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Type Horizontal bend
Width 300 mm
Width 11,81 in
Wire diameter 4,8 mm
All types

All types

Types Width Wire diameter Maintain electrical functions Item no. Quantity SSU
GRB 90 110 FT 100 mm 3.9 mm no 6002307
1 piece
GRB 90 115 FT 150 mm 3.9 mm no 6002311
1 piece
GRB 90 120 FT 200 mm 4.8 mm no 6002315
1 piece
GRB 90 130 FT 300 mm 4.8 mm no 6002323
1 piece
GRB 90 140 FT 400 mm 4.8 mm no 6002331
1 piece
GRB 90 150 FT 500 mm 4.8 mm no 6002358
1 piece
GRB 90 160 FT 600 mm 4.8 mm no 6002366
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Joint connector FT Joint connector FT GSV 34 FT 6016634
20 piece
Downloads

Download

Download
Download

EU declaration of conformity GRB 90 130 FT / 6002323 , 0.10MB , pdf
Download
REACH Declaration of conformity GRB 90 130 FT / 6002323 , 0.12MB , pdf
Download
RoHS Declaration of conformity GRB 90 130 FT / 6002323 , 0.12MB , pdf
