90° mesh cable tray bend FT

Item no. 6002250 | EAN 4012196001934

no
Product description
Product description

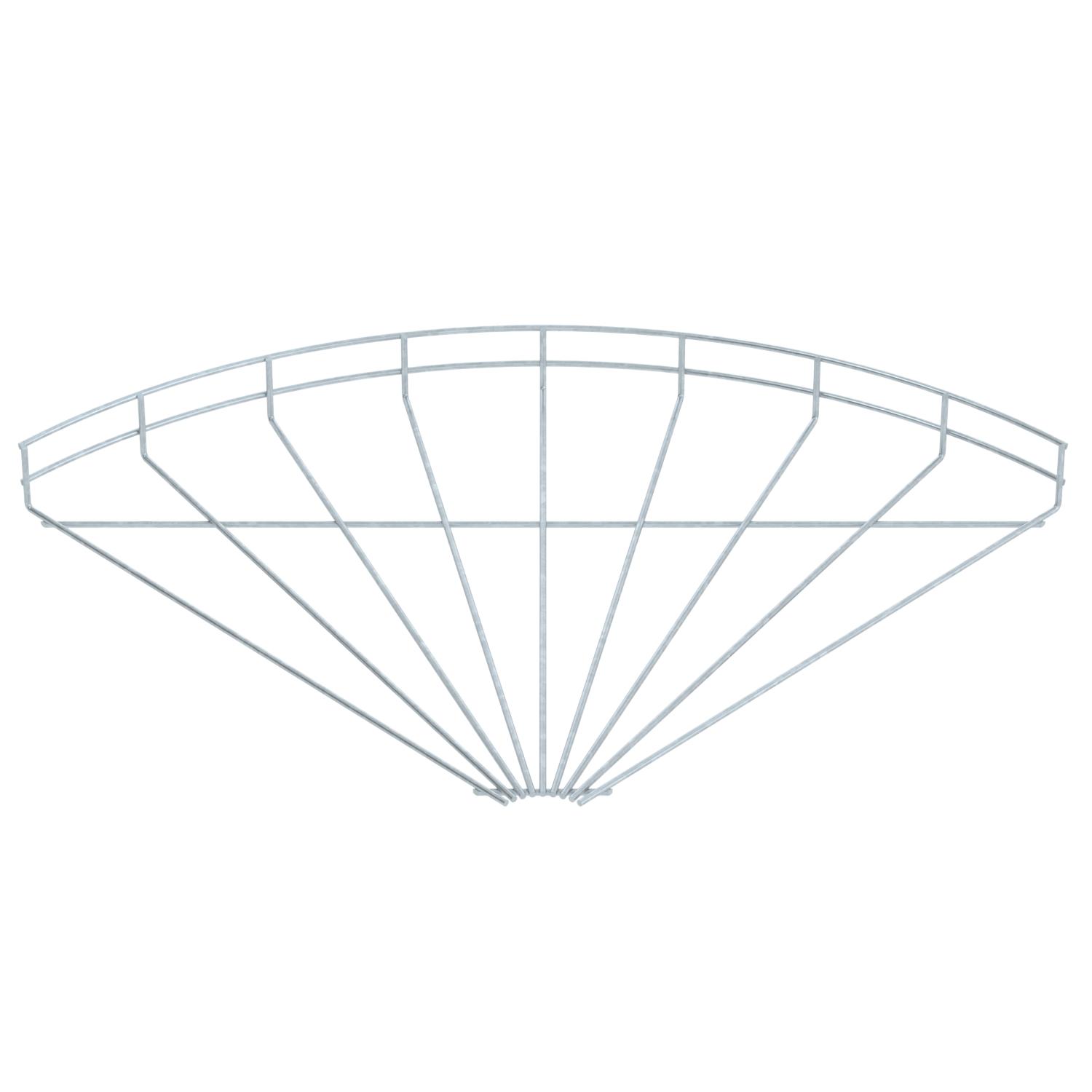

90° bend, horizontal, for all mesh cable trays of 55 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 55 mm
Technical data

Technical data

Bend (angle) 90°
Colour zinc
Connector version Without connectors

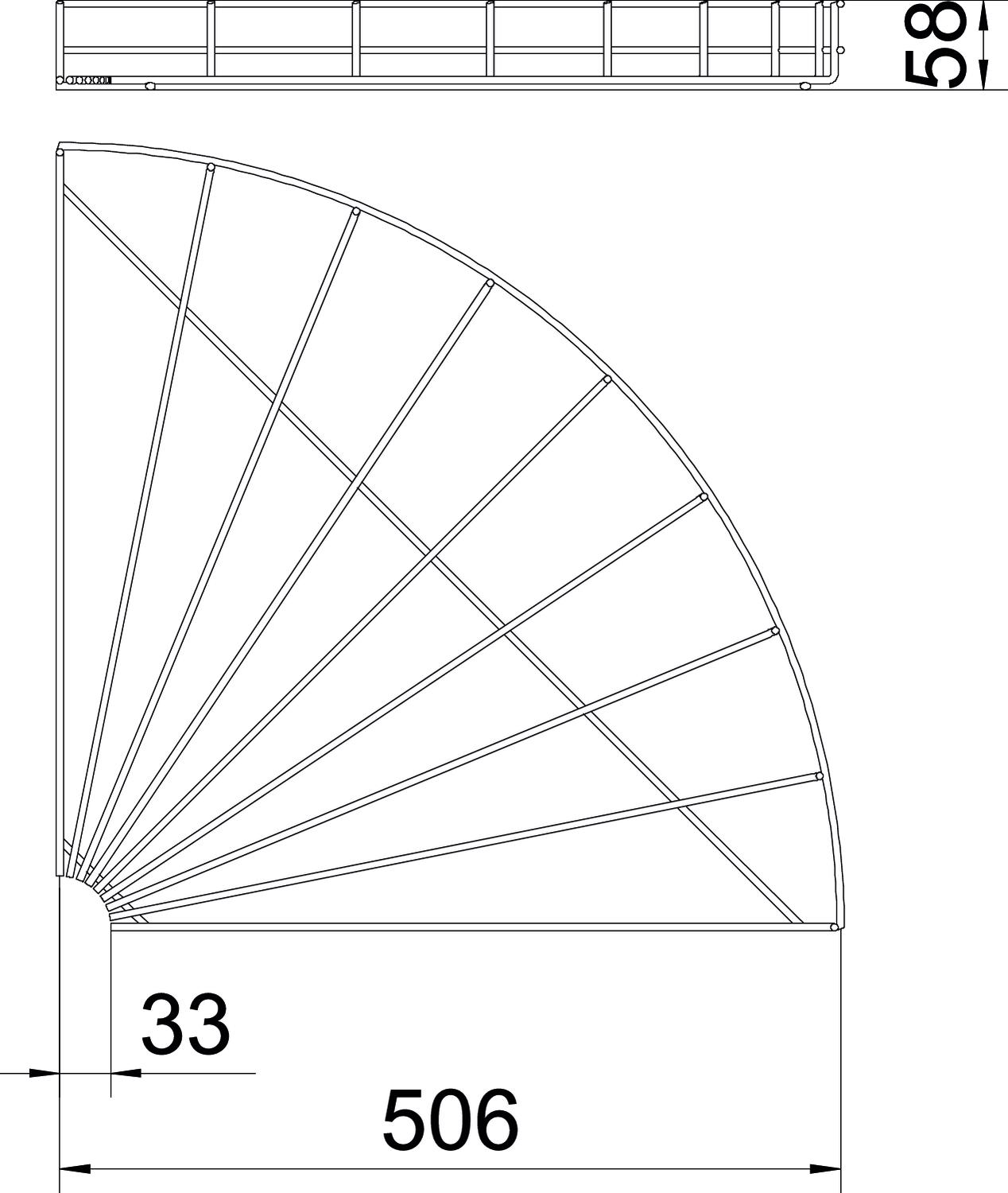

Dimension 55x500
Height 55 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Type Horizontal bend
Width 19,69 in
Width 500 mm
Wire diameter 4,8 mm
All types

All types

Types Width Wire diameter Maintain electrical functions Item no. Quantity SSU
GRB 90 510 FT 100 mm 3.9 mm no 6002218
1 piece
GRB 90 515 FT 150 mm 3.9 mm no 6002222
1 piece
GRB 90 520 FT 200 mm 3.9 mm no 6002226
1 piece
GRB 90 530 FT 300 mm 4.8 mm no 6002234
1 piece
GRB 90 540 FT 400 mm 4.8 mm no 6002242
1 piece
GRB 90 550 FT 500 mm 4.8 mm no 6002250
1 piece
GRB 90 560 FT 600 mm 4.8 mm no 6002269
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Joint connector FT Joint connector FT GSV 34 FT 6016634
20 piece
