Adapter expansion M - PG 40 | | | 29 | 43
morepic-1 morepic-2

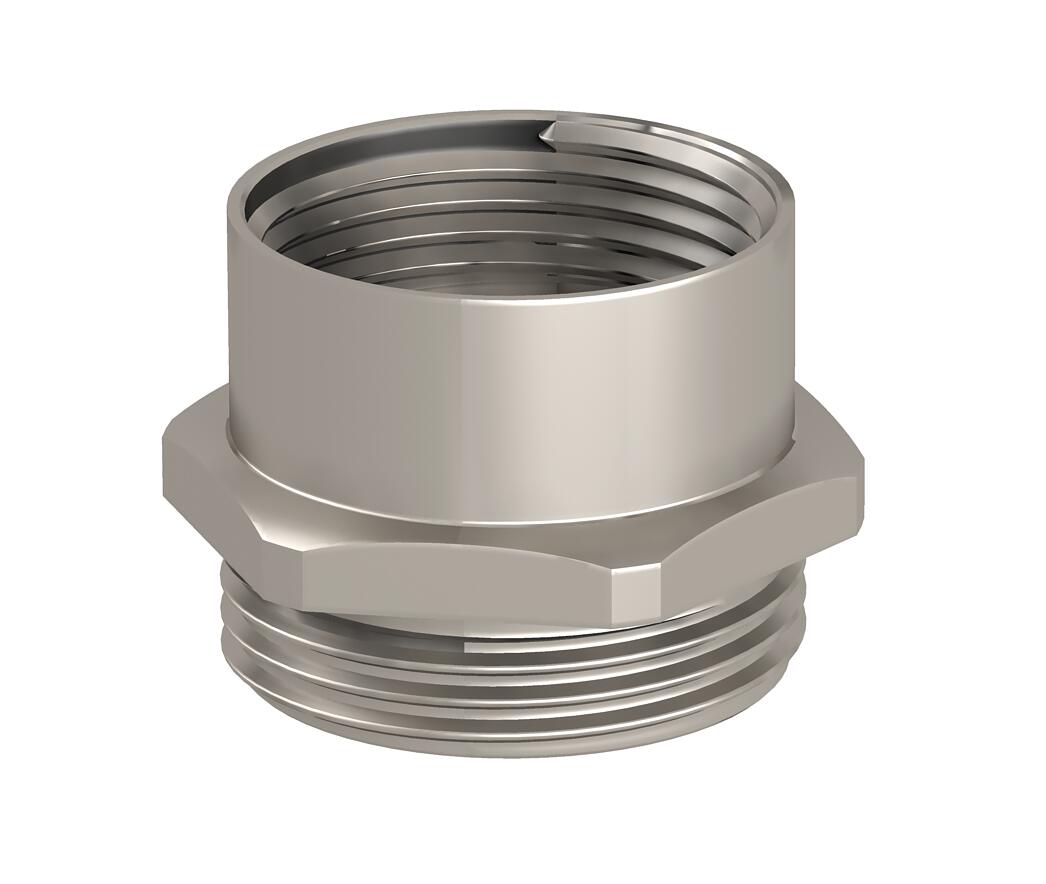

Adapter expansion M - PG

Item no. 2088306 | EAN 4012195372400

29
Product description
Product description
Adapter for converting a metric threaded drill hole to a Pg threaded drill hole.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

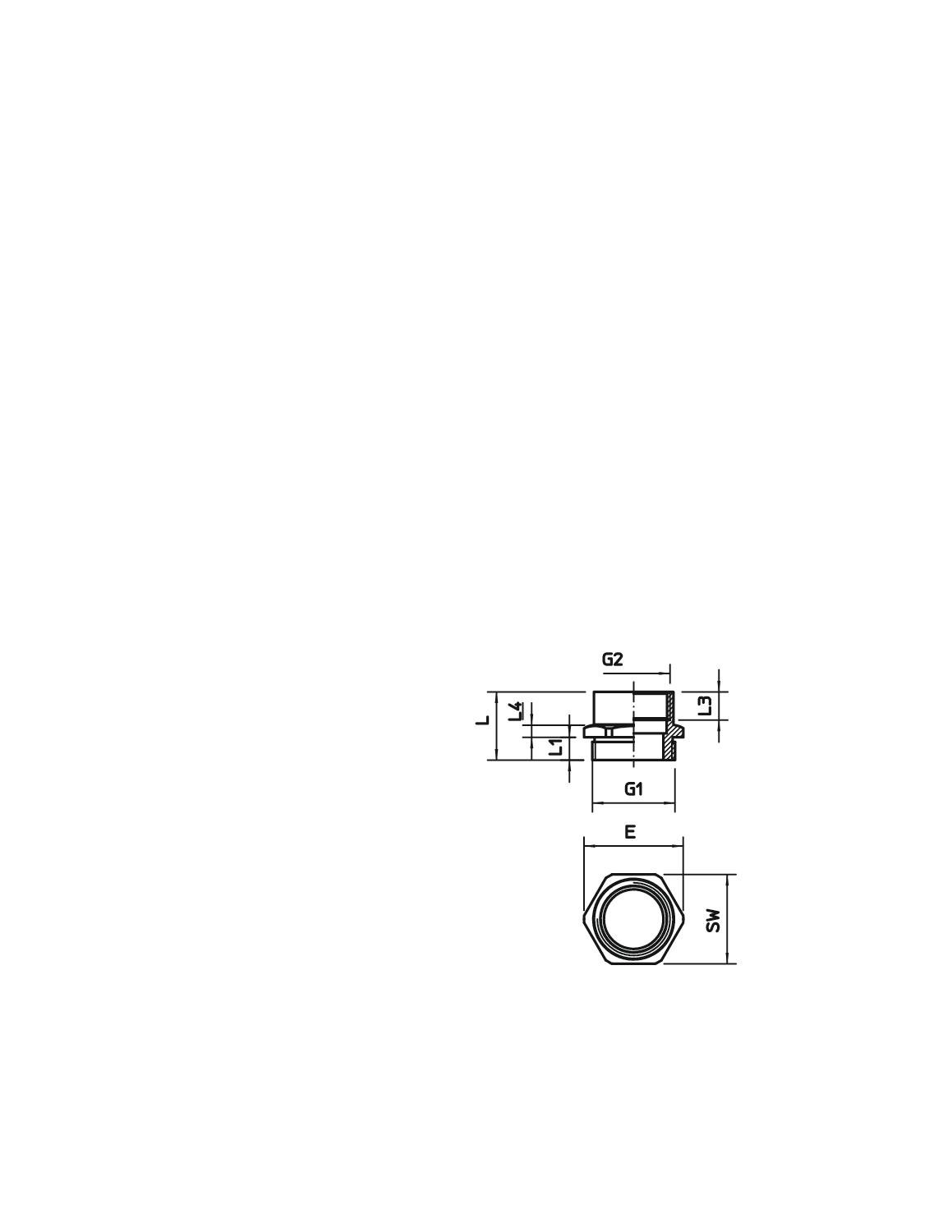

Dimension M40-PG29
Dimension D 31,8 mm
Dimension E 46,2 mm
Dimension L 24,4 mm
Dimension L1 8 mm
Dimension L3 15 mm
Dimension L4 5 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, external 40
Thread dimension, PG, internal 29
Thread type: External thread Metric
Thread type: Internal thread PG
WAF 43
All types

All types

Types Thread dimension, metric, external Thread dimension, PG, internal WAF Item no. Quantity SSU
165 ADA M40-PG29 40 29 43 2088306
10 piece
165 ADA M32-PG29 32 29 40 2088330
10 piece
