Adapter reduction M - PG 40 | | | 21 | 43
morepic-1 morepic-2

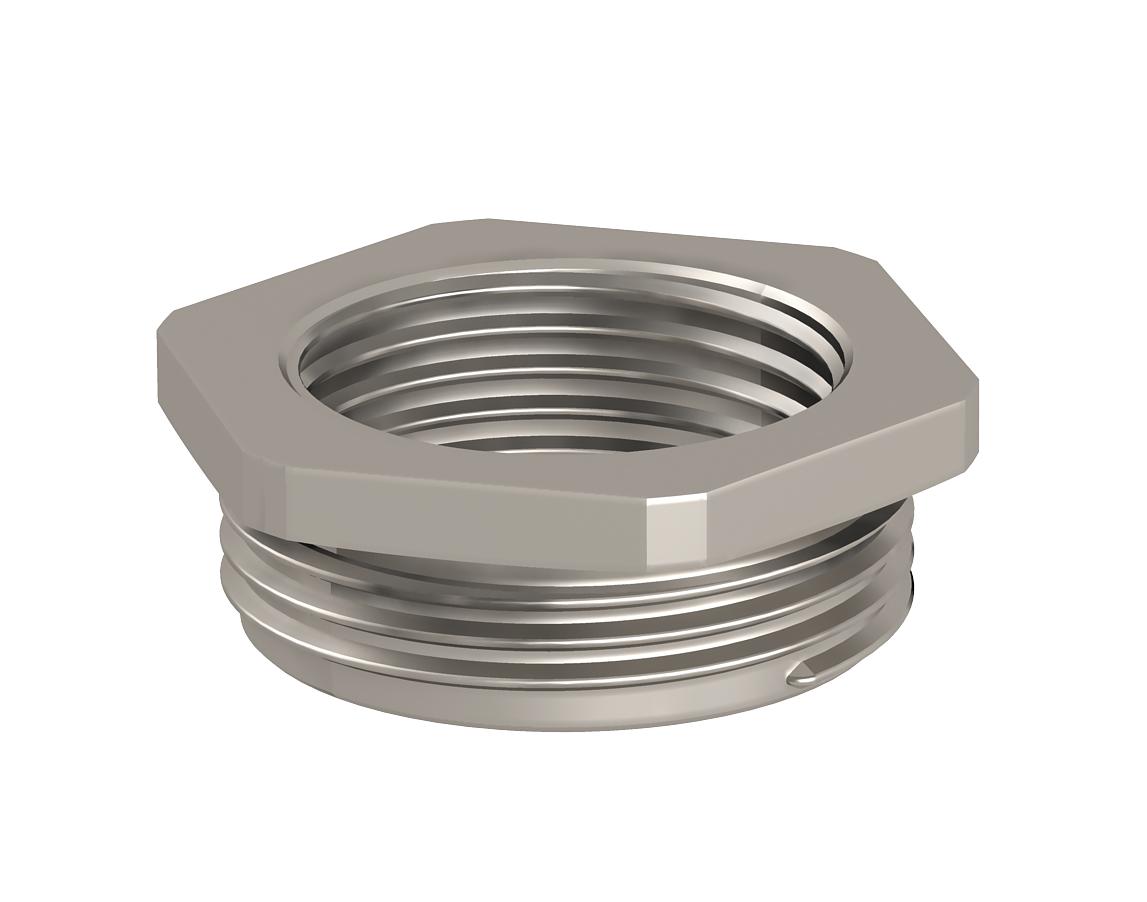

Adapter reduction M - PG

Item no. 2088334 | EAN 4012195391081

21
Product description
Product description
Adapter for reducing a metric threaded drill hole to a smaller Pg threaded drill hole.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

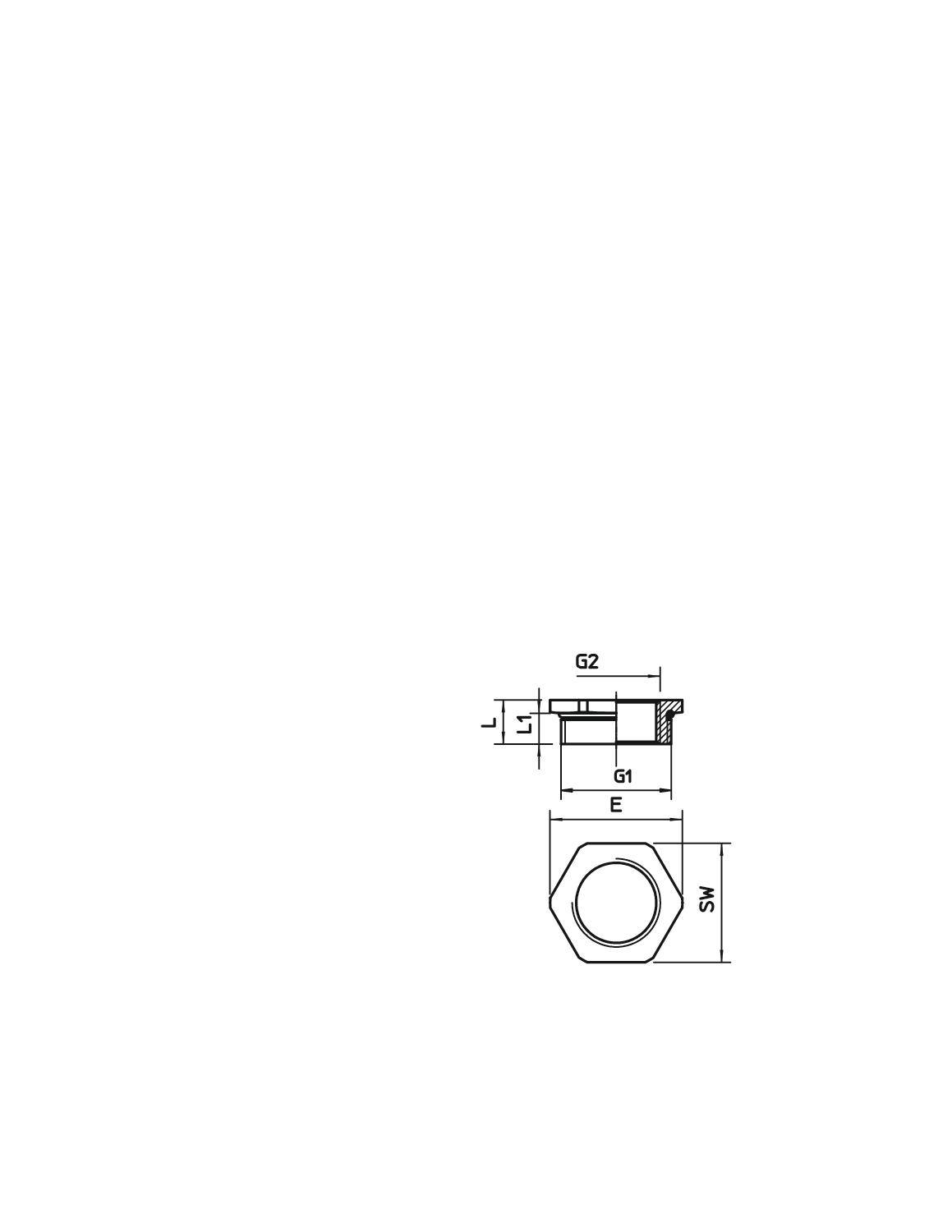

Dimension M40-PG21
Dimension E 46 mm
Dimension L 12 mm
Dimension L1 8 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, external 40
Thread dimension, PG, internal 21
Thread type: External thread Metric
Thread type: Internal thread PG
WAF 43
All types

All types

Types Thread dimension, metric, external Thread dimension, PG, internal WAF Item no. Quantity SSU
165 ADA M32-PG21 32 21 34 2088305
10 piece
165 ADA M40-PG21 40 21 43 2088334
10 piece
Downloads

Download

Download

EU declaration of conformity 165 ADA M40-PG21 / 2088334 , 0.05MB , pdf
Download
REACH Declaration of conformity 165 ADA M40-PG21 / 2088334 , 0.12MB , pdf
Download
RoHS Declaration of conformity 165 ADA M40-PG21 / 2088334 , 0.12MB , pdf
Download

165 ADA M40-PG21 / 2088334
