- Product description
-

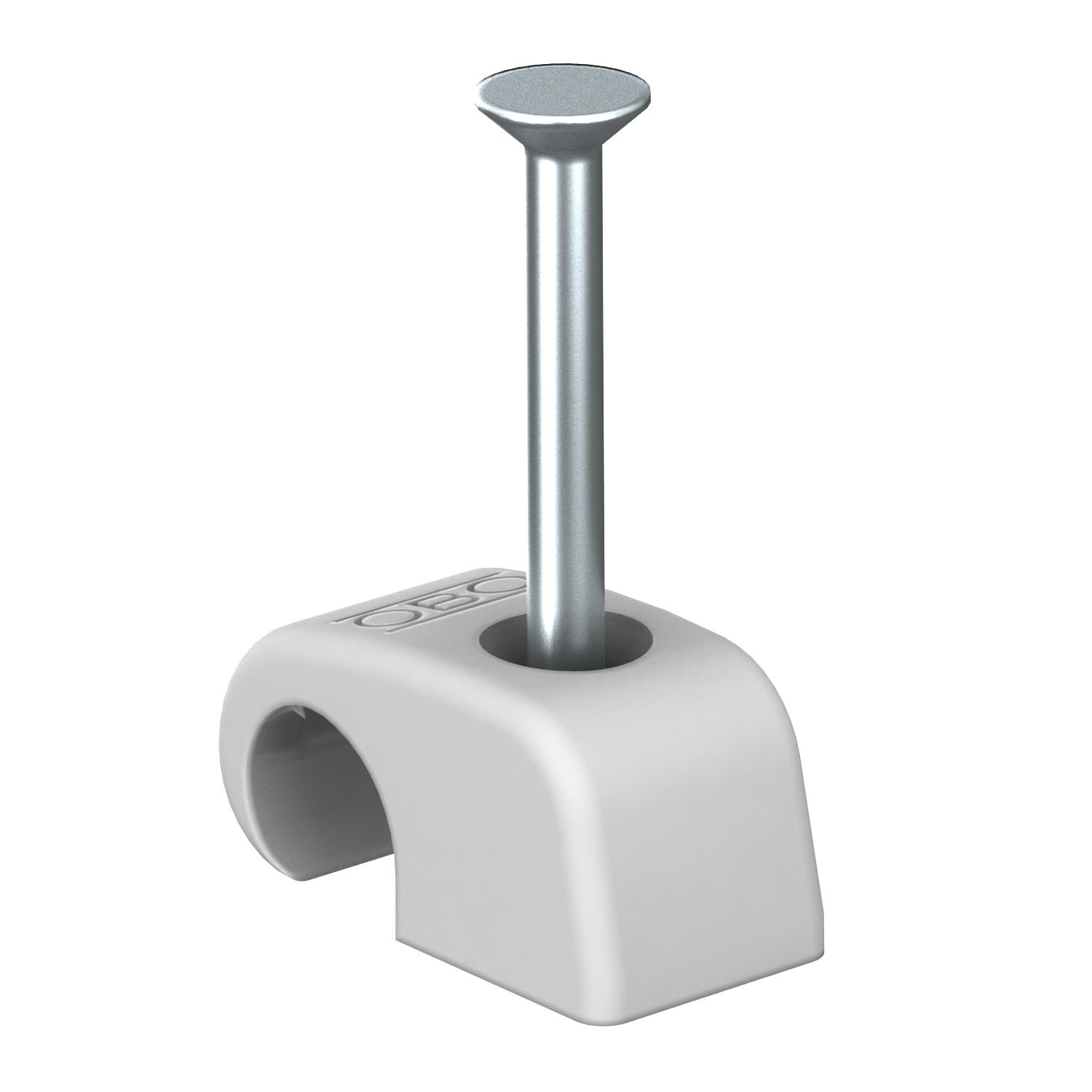

Product descriptionAdhesive clip, for clamping to the cable.
- Technical data
-
Technical data

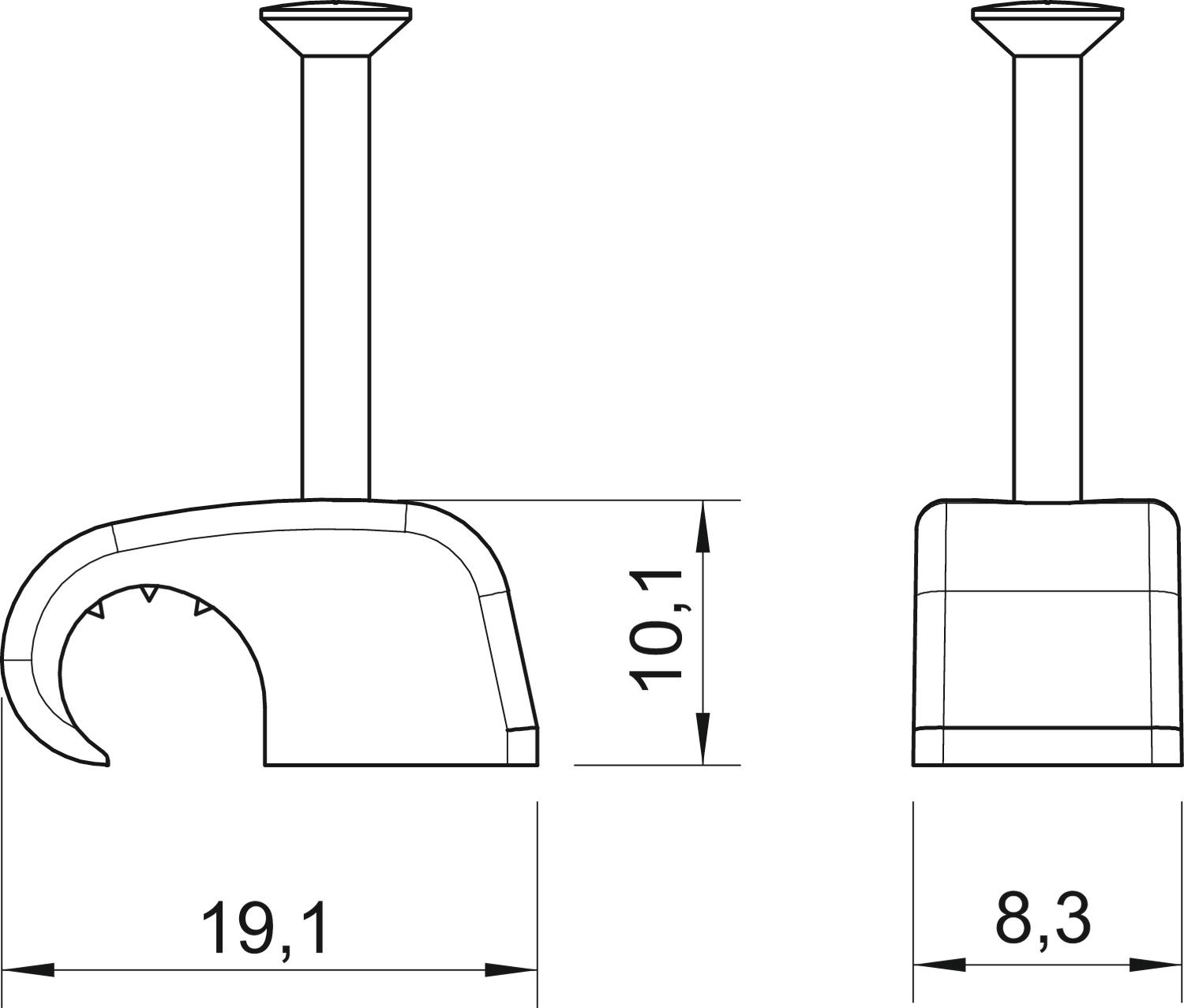

Colour Light grey; RAL 7035 Dimension 7-12mm, L25 Dimension B 8,3 mm Dimension H 10,1 mm Dimension L 19,1 mm Double clip no for cable diameter, max. 12 mm for cable diameter, min. 7 mm For nail diameter 2 x 25 Halogen-free yes Hardened yes Impact-resistant yes Material Polypropylene Nail length 25 mm Pipe locking no Shape Round (for round conductor) With nail yes - All types
-
All types
- Downloads
-
Data sheet 2026 25 LGR SP / 2228432 , 0.21MB , pdfEU declaration of conformity 2026 25 LGR SP / 2228432 , 0.06MB , pdfREACH Declaration of conformity 2026 25 LGR SP / 2228432 , 0.12MB , pdfRoHS Declaration of conformity 2026 25 LGR SP / 2228432 , 0.12MB , pdf
