Adjustable bend element 60 A2
Item no. 6225468 | EAN 4012196567270
- Product description
-
Product descriptionAdjustable bend element with welded rung for use in cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data

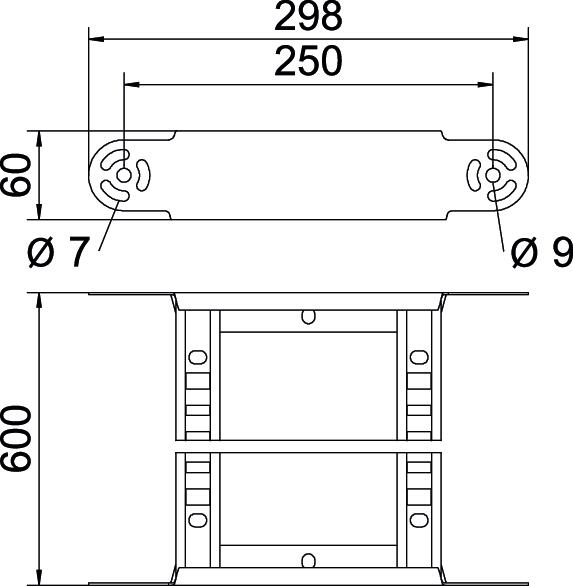

Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour stainless steel Connector version Integrated connector Dimension 60x600 Dimension B 600 mm Dimension R 600 mm Height 60 mm Hinged no Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Width 600 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A2
FRSB 6x12 A2 6406138 100 piece
Adjustable connector A2
LGVG 60 A2 6208947 10 piece - Downloads
-
Data sheet LGBE 660 A2 / 6225468 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LGBE 660 A2 / 6225468 , 0.10MB , pdfUK Declaration of Conformity LGBE 660 A2 / 6225468 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
