Adjustable bend element 60 A4
Item no. 6225480 | EAN 4012196567287
- Product description
-

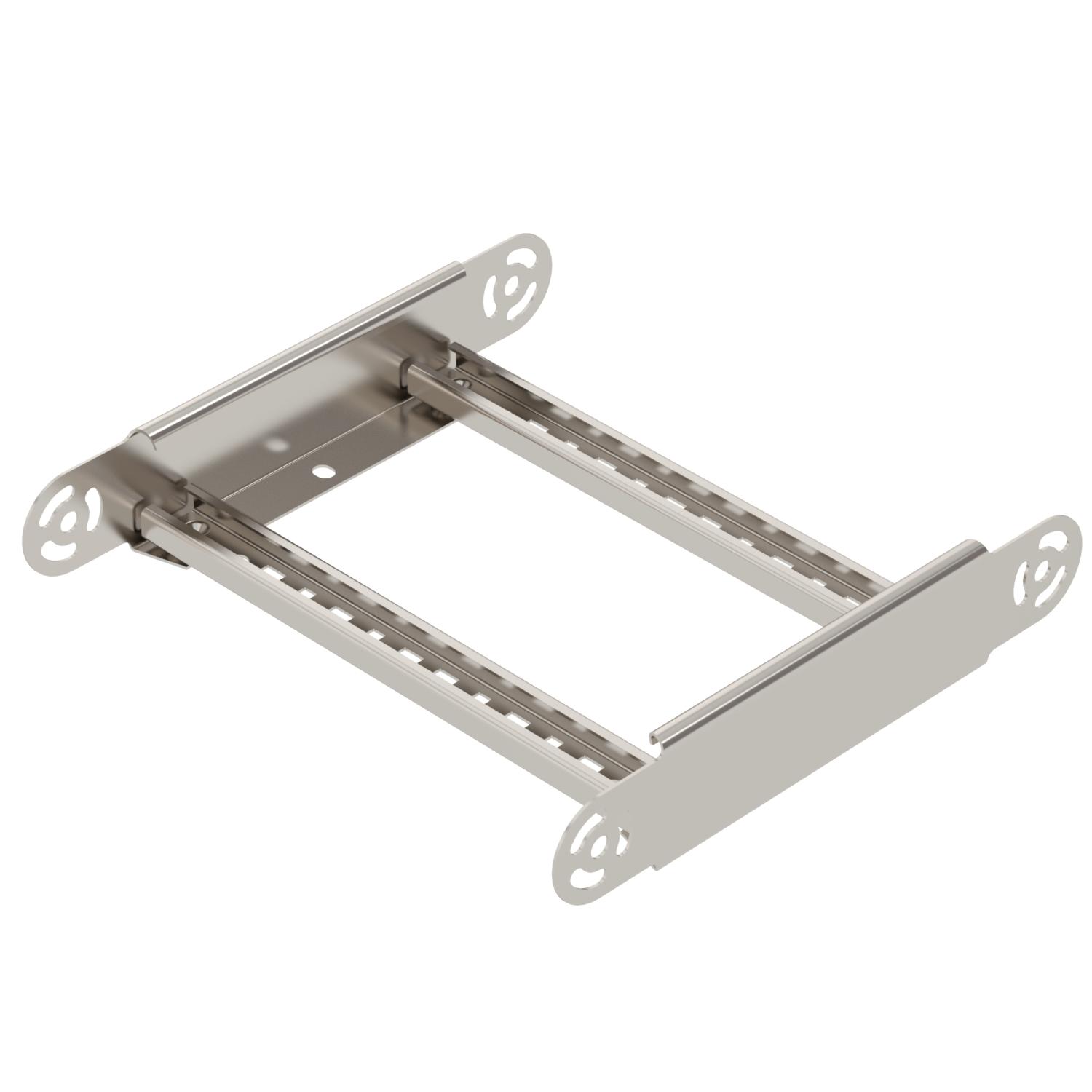

Product descriptionAdjustable bend element with welded rung for use in cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data

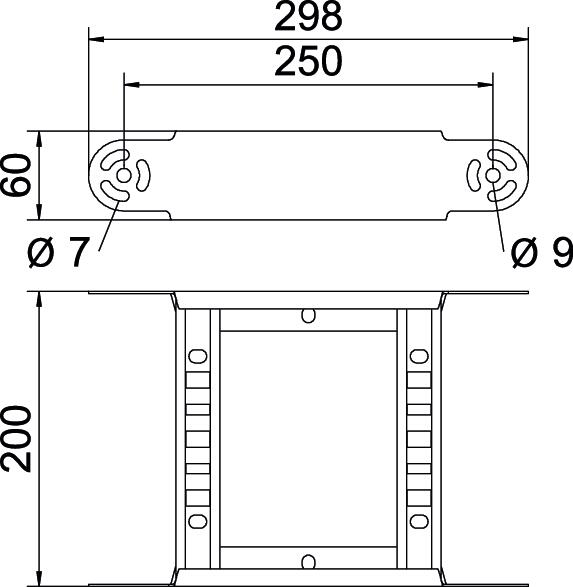

Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour stainless steel Connector version Integrated connector Dimension 60x200 Dimension B 200 mm Dimension R 200 mm Height 60 mm Hinged no Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A4
FRSB 6x12 A4 6406142 100 piece

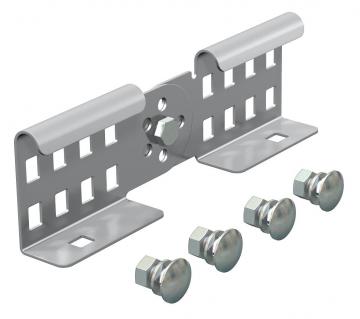

Adjustable connector A4
LGVG 60 A4 6208932 10 piece - Downloads
-
Data sheet LGBE 620 A4 / 6225480 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LGBE 620 A4 / 6225480 , 0.10MB , pdfUK Declaration of Conformity LGBE 620 A4 / 6225480 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
