Adjustable bend element 60 FT 500 | 1.5
morepic-1 morepic-2 video-1 video-2

Adjustable bend element 60 FT

Item no. 6225476 | EAN 4012196445028

1.5 mm
Product description
Product description
Adjustable bend element with welded rung for use in the cable ladder types with a side height of 60 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Bend (angle) Adjustable
Change of direction Vertical, rising/falling
Colour zinc
Connector version Integrated connector

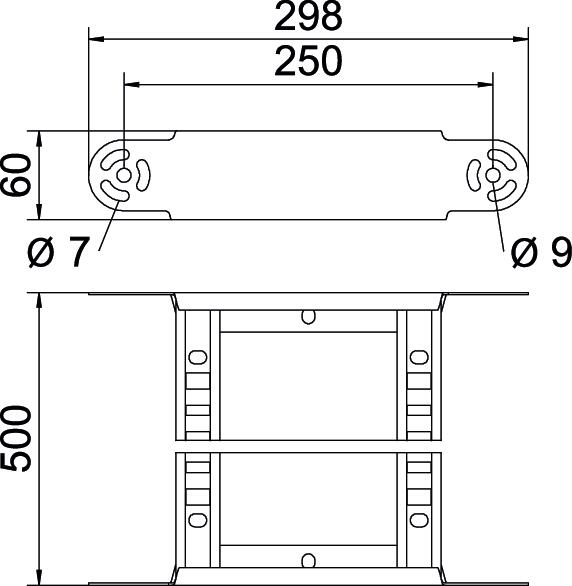

Dimension 60x500
Dimension B 500 mm
Dimension R 500 mm
Height 60 mm
Hinged no
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile perforated
Wide-span version no
Width 500 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LGBE 620 FT 200 mm 1.5 mm 6225470
1 piece
LGBE 630 FT 300 mm 1.5 mm 6225472
1 piece
LGBE 640 FT 400 mm 1.5 mm 6225474
1 piece
LGBE 650 FT 500 mm 1.5 mm 6225476
1 piece
LGBE 660 FT 600 mm 1.5 mm 6225478
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Adjustable connector FT Adjustable connector FT LGVG 60 FT 6208944
10 piece
