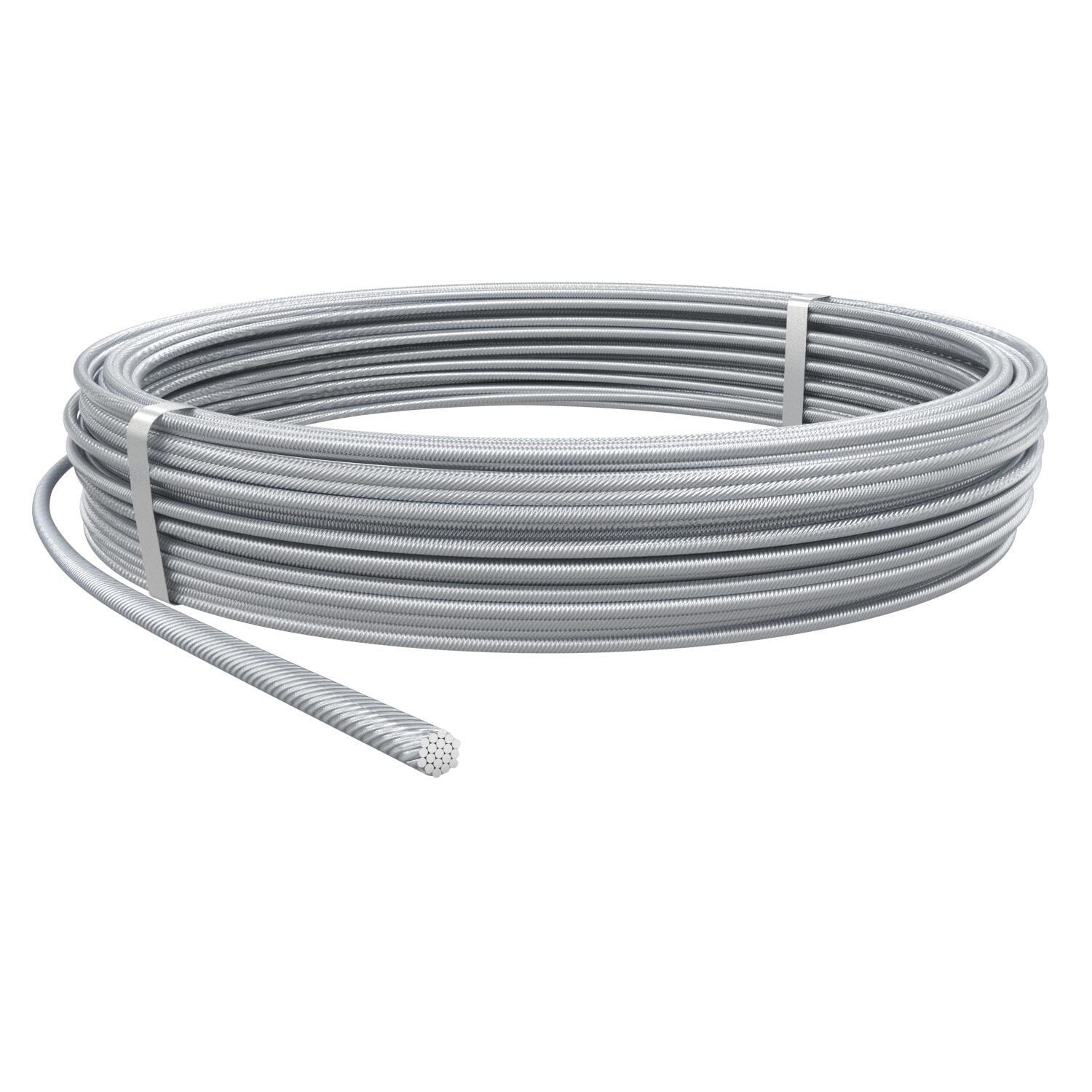

Aluminium bare stranded conductor 50 mm²

Item no. / Types	5021700 / S 9-AL

Nominal size Ø	9 mm

Product description

Product description

Aluminium bare stranded conductor for use as air-termination system or conductor according to DIN EN 62561-2 (VDE 0185-561-2).

Technical data

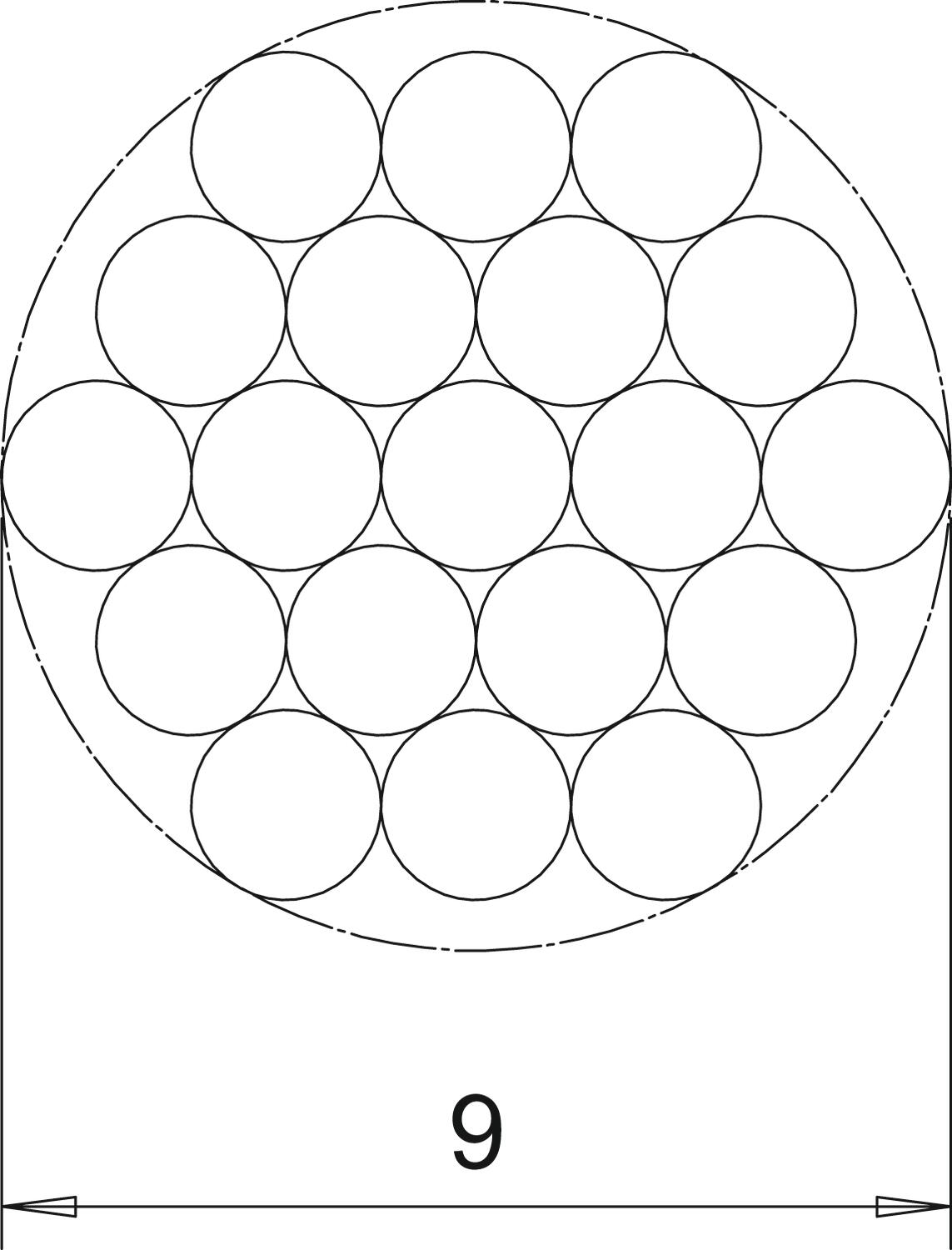

Dimension	19x1,8
Material	Aluminium

Nominal size Ø	9 mm

All types

All types

Types	Nominal size Ø	Item no.	Quantity	SSU
S 9-AL	9 mm	5021700	m	100 m

Downloads

Data sheet S 9-AL / 5021700 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

S 9-AL / 5021700
