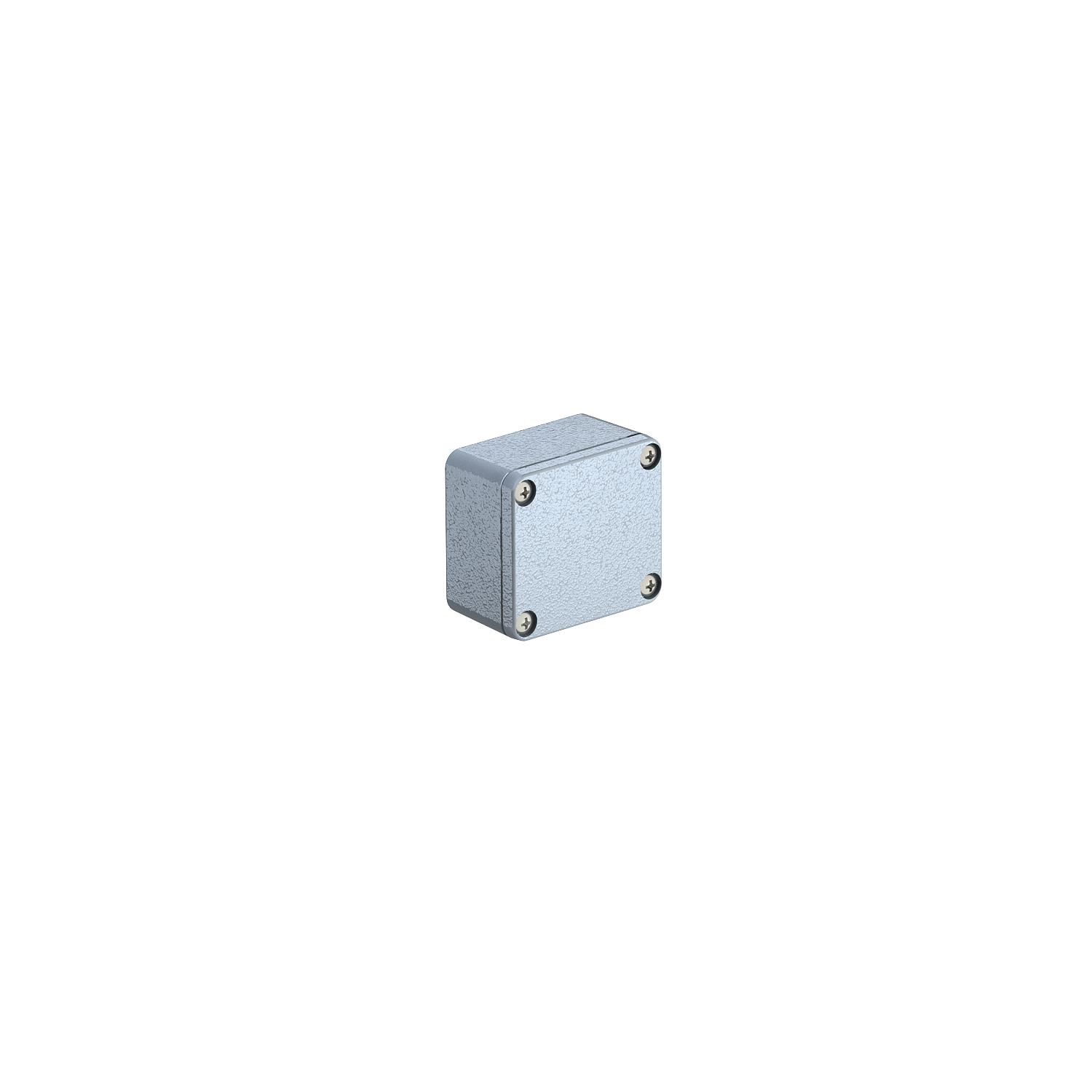

Aluminium empty housing Mx06, powder coated

Item no. 2011304 | EAN 4012196030774

Product description

Product description

Robust aluminium empty housing for mechanical engineering and automation technology.

The OBO Mx series’ excellent mechanical and thermal features make it most suitable for extreme demands in many different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.

The products protect the electrical installation against high-grade strains. They withstand both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels.

With an IP66 protection class, they are optimally protected against the intrusion of dust and water.

The aluminium housings are powder-coated (RAL 7001) and are delivered with a cover including stainless steel screws, a seal and two or four earthing screws.
Temperature: -40°C  to +125°C
  • Protection rating IP 66
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Halogen-free; without chlorine, fluorine and bromine
  • EurAsian Conformity
  • Bolt-firing tool
  • Nail device
Technical data

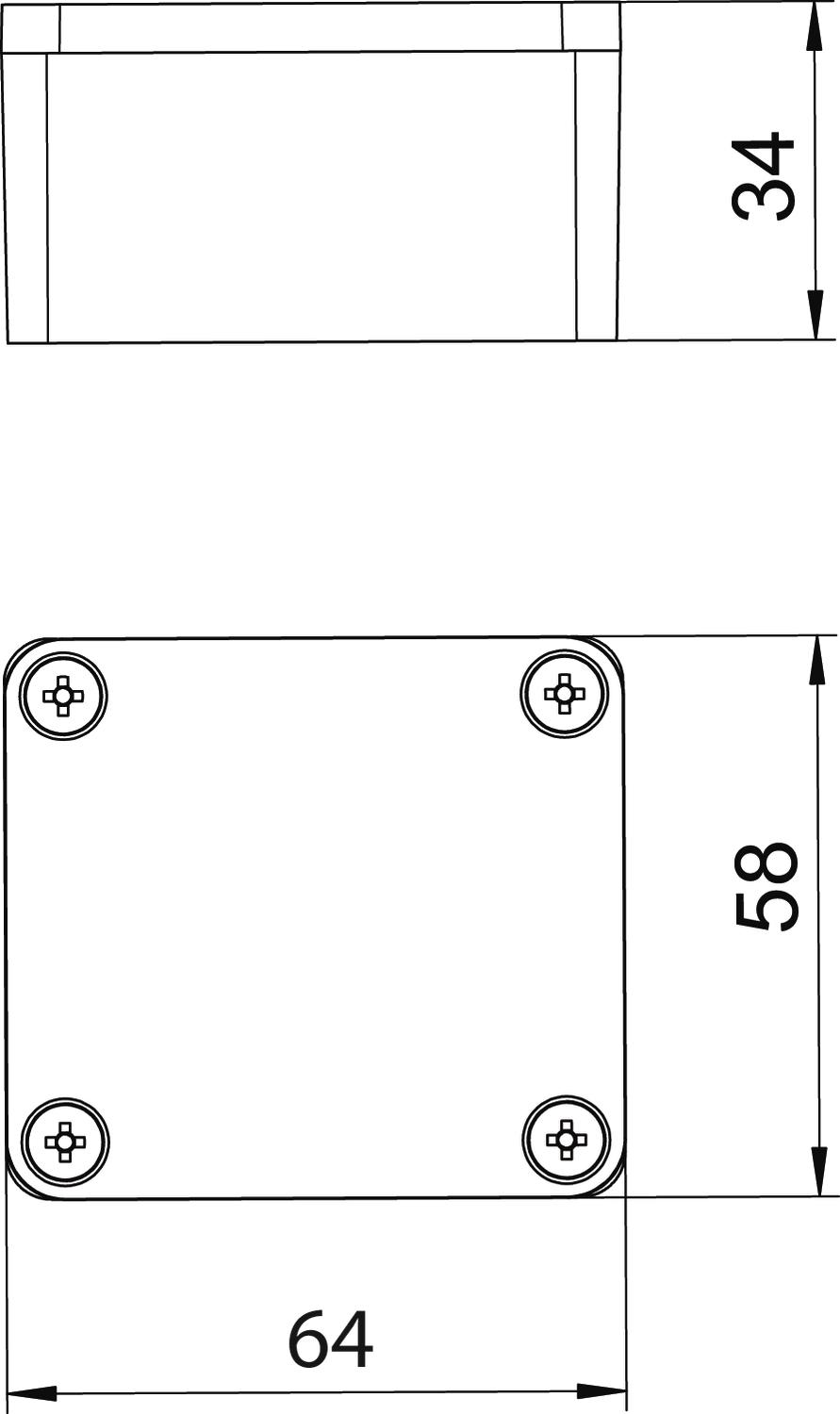

Dimensions

Clear internal dimensions 56.5x50.5x31.5 mm
Colour Silver grey; RAL 7001
Cover fastening Screwed
Dimension 64x58x34
Extension option yes
Height 34 mm
Length 64 mm
Material Cast aluminium
Permitted temperature range, max. 125 °C
Permitted temperature range, min. -40 °C
Protection rating IP66
Shape Rectangular
Suitable for lightning protection no
Suitable for outdoor use yes
Surface Powder-coated
Version, small distributor cover Closed
Weatherproof yes
Width 58 mm
with lid yes
With mounting plate no
All types

All types

Types Length Width Height Item no. Quantity SSU
Mx 060503 SGR 64 mm 58 mm 34 mm 2011304
1 piece
Mx 080705 SGR 80 mm 75 mm 57 mm 2011308
1 piece
Mx 120805 SGR 125 mm 80 mm 57 mm 2011312
1 piece
Mx 161008 SGR 160 mm 100 mm 81 mm 2011316
1 piece
Mx 161609 SGR 160 mm 160 mm 90 mm 2011320
1 piece
Mx 170805 SGR 175 mm 80 mm 57 mm 2011324
1 piece
Mx 261609 SGR 260 mm 160 mm 90 mm 2011328
1 piece
Mx 361609 SGR 360 mm 160 mm 91 mm 2011332
1 piece
