Product description

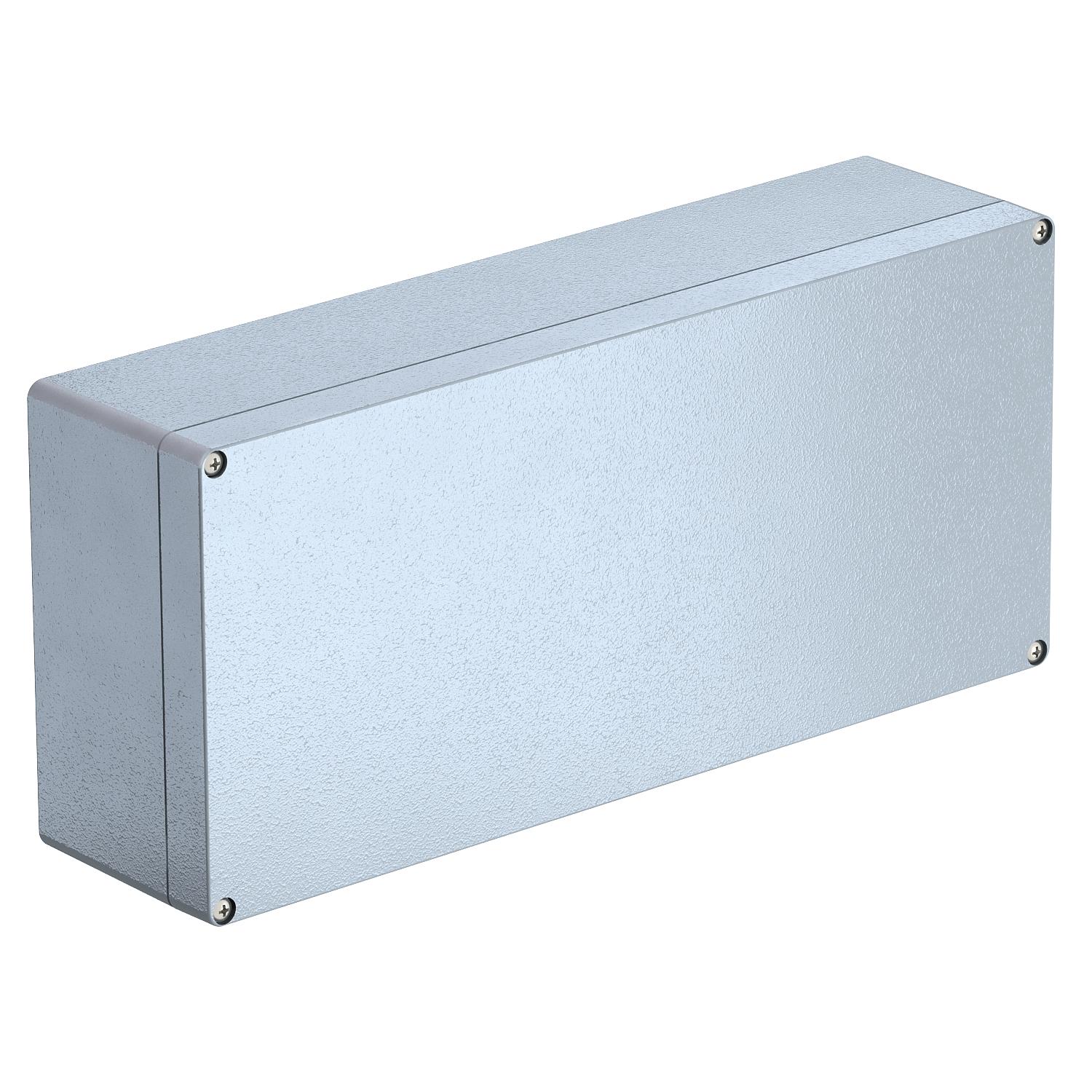

Robust aluminium empty housing for mechanical engineering and automation technology.
The OBO Mx series’ excellent mechanical and thermal features make it most suitable for extreme demands in many different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.
The products protect the electrical installation against high-grade strains. They withstand both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels.
With an IP66 protection class, they are optimally protected against the intrusion of dust and water.
The aluminium housings are powder-coated (RAL 7001) and are delivered with a cover including stainless steel screws, a seal and two or four earthing screws.
Temperature: -40°C to +125°C
-
- Technical data
-
Technical data
Colour Silver grey; RAL 7001 Cover fastening Screwed Dimension 360x160x91 Extension option yes Material Cast aluminium Permitted temperature range, max. 125 °C Permitted temperature range, min. -40 °C Protection rating IP66 Shape Rectangular Suitable for lightning protection no Suitable for outdoor use yes Surface Powder-coated Version, small distributor cover Closed Weatherproof yes with lid yes With mounting plate no Dimensions
Clear internal dimensions 317.5x149x92 mm Height 91 mm Length 360 mm Width 160 mm - All types
-
All types
- Downloads
-
Data sheet Mx 361609 SGR / 2011332 , 0.20MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,REACH Declaration of conformity Mx 361609 SGR / 2011332 , 0.12MB , pdfRoHS Declaration of conformity Mx 361609 SGR / 2011332 , 0.12MB , pdf
