Aluminium pipe bend, with thread
Item no. 2046043 | EAN 4012195926191
- Product description
-
Product description

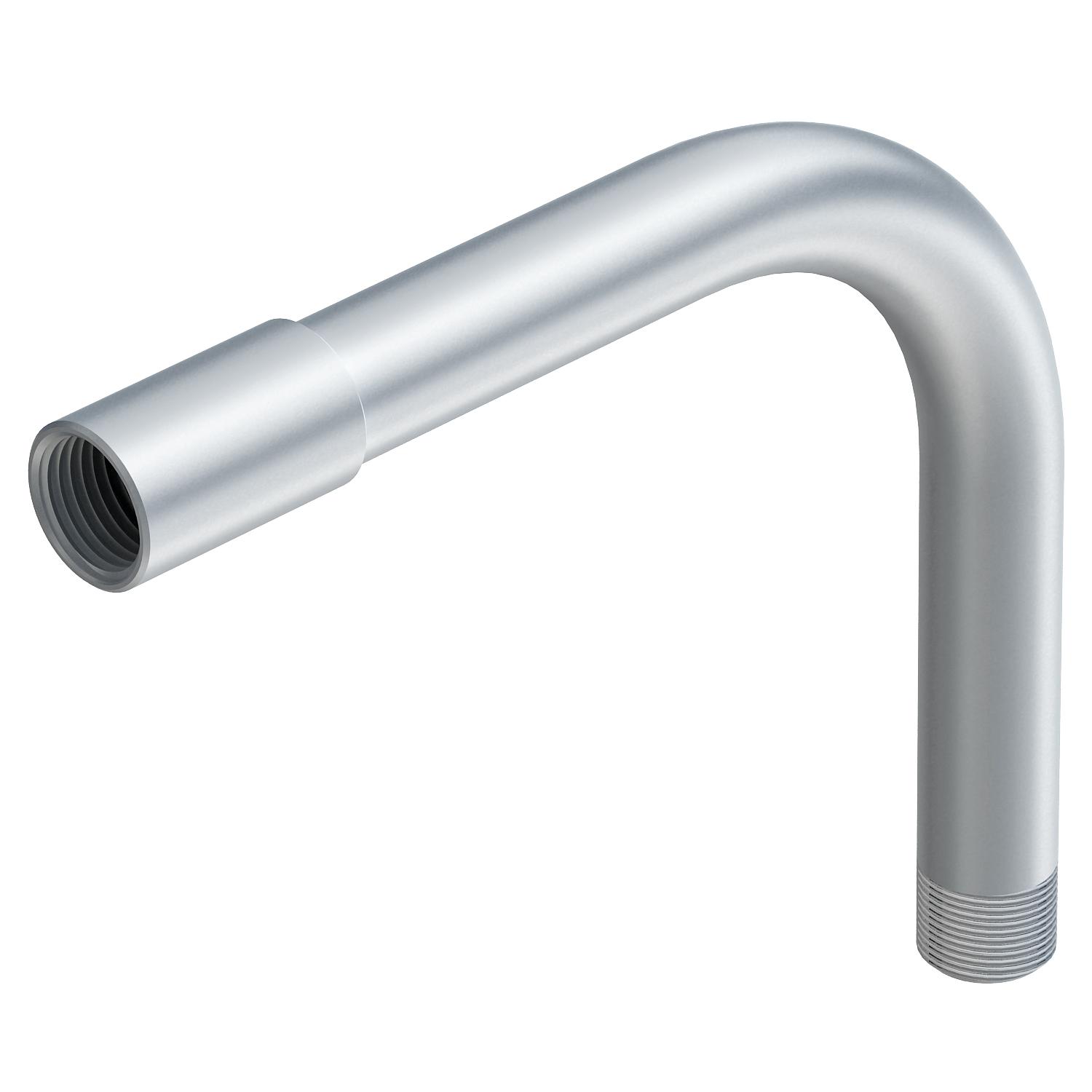

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

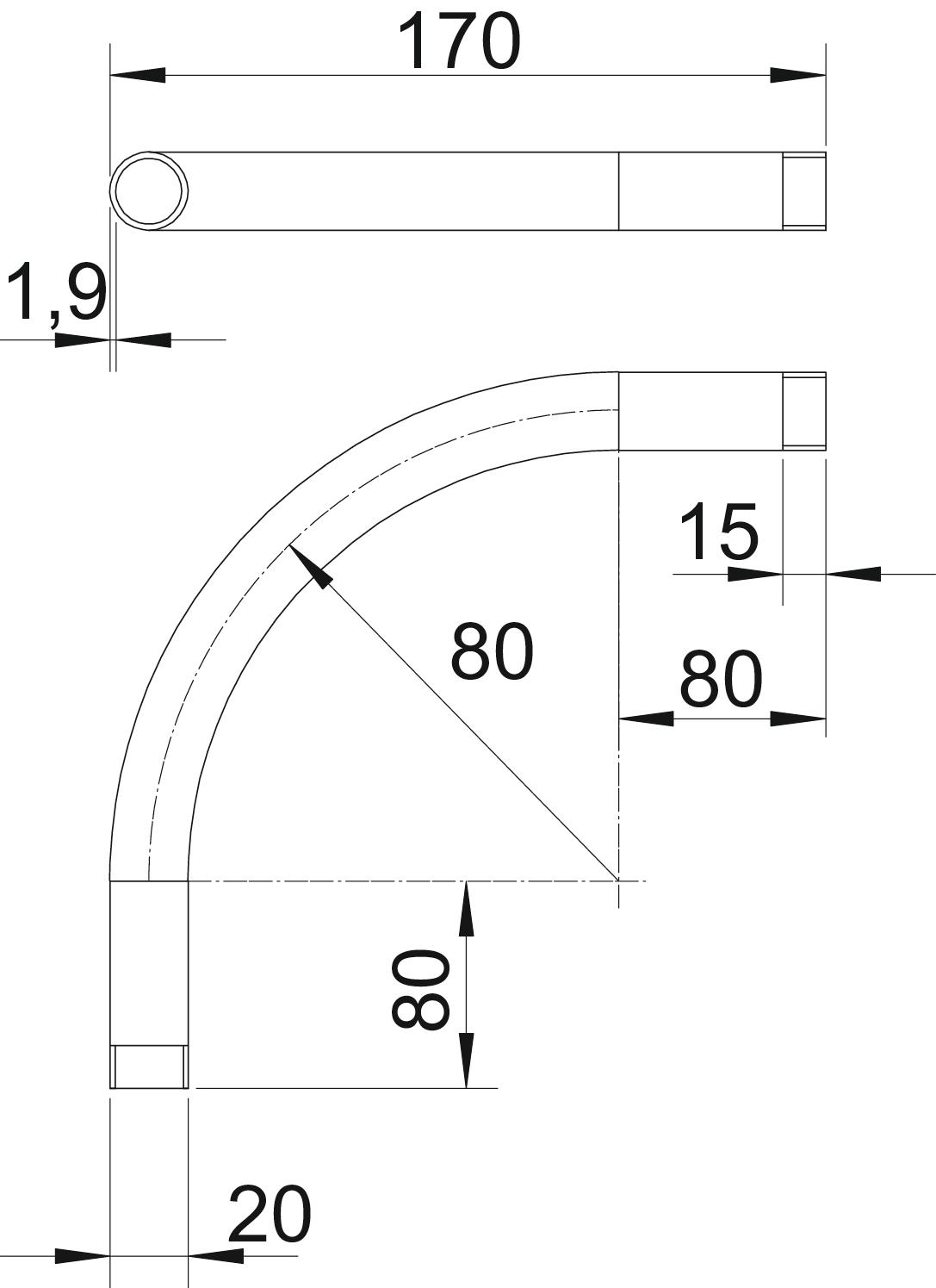

Angle of the bend 90 ° Brushed surface no Dimension M20x1,5 Dimension A 80 mm Dimension B 170 mm Dimension D 20 mm Dimension l 15 mm Dimension m (mm) M20 Dimension R 80 mm Dimension t 1,9 mm Flexible no For nominal pipe diameter 20 mm Halogen-free no Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Thread M20x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
