Aluminium pipe bend, with thread
Item no. 2046048 | EAN 4012195926245
- Product description
-
Product description

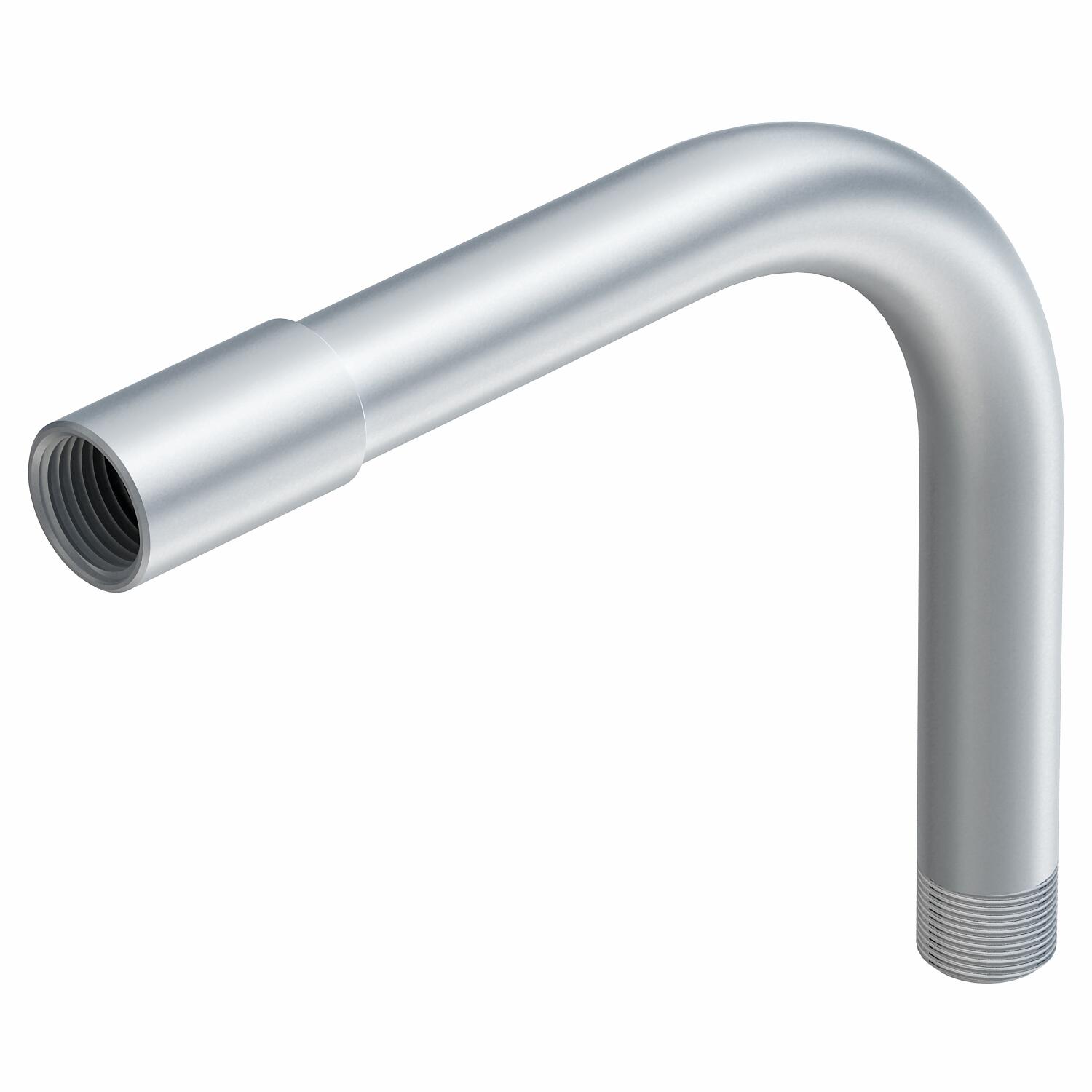

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

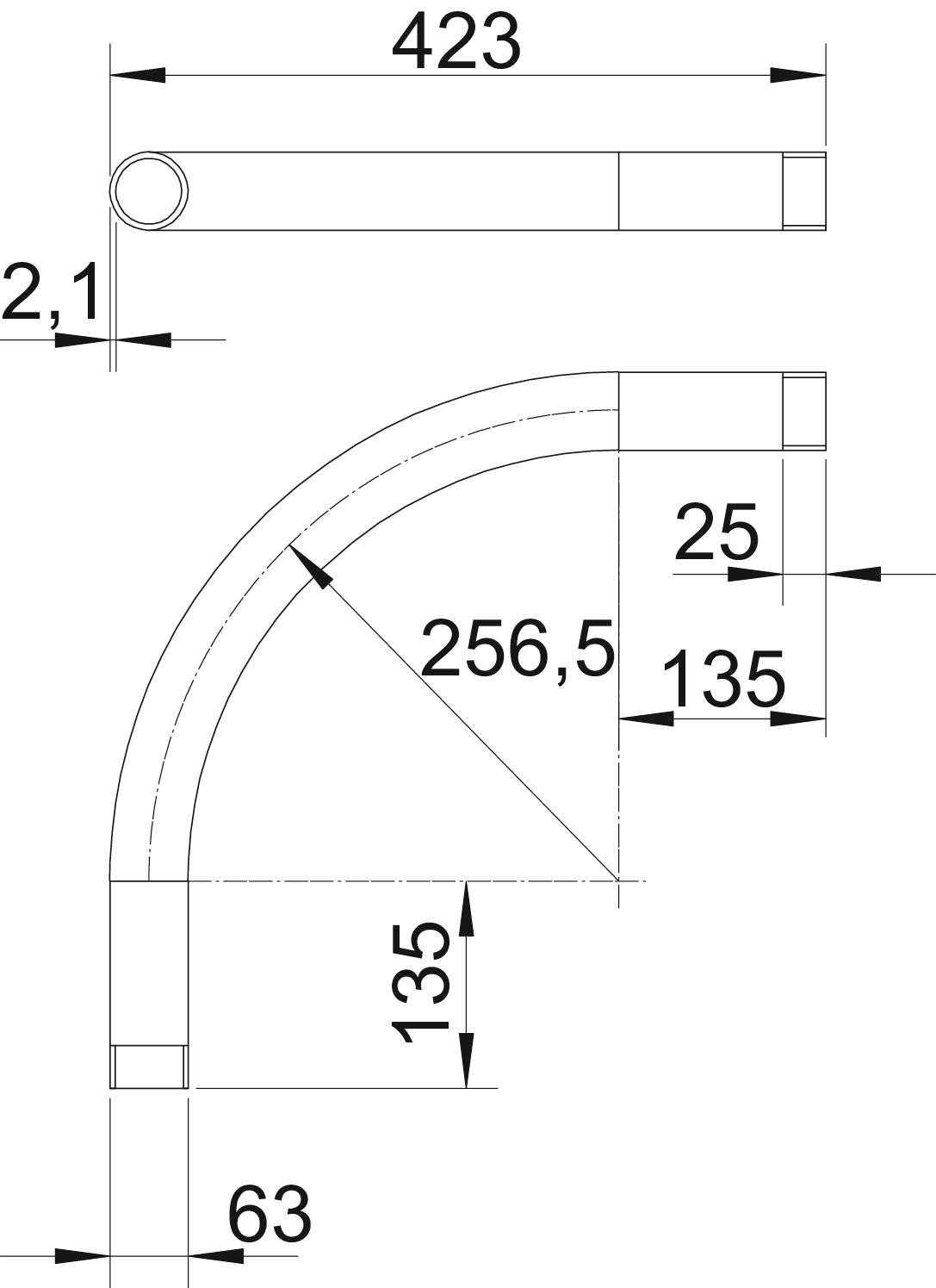

Angle of the bend 90 ° Brushed surface no Dimension M63x1,5 Dimension A 135 mm Dimension B 423 mm Dimension D 63 mm Dimension l 25 mm Dimension m (mm) M63 Dimension R 256,5 mm Dimension t 2,1 mm Flexible no For nominal pipe diameter 63 mm Halogen-free no Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Thread M63x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBM63W ALU / 2046048 , 0.24MB , pdfREACH Declaration of conformity SBM63W ALU / 2046048 , 0.12MB , pdfRoHS Declaration of conformity SBM63W ALU / 2046048 , 0.12MB , pdf
