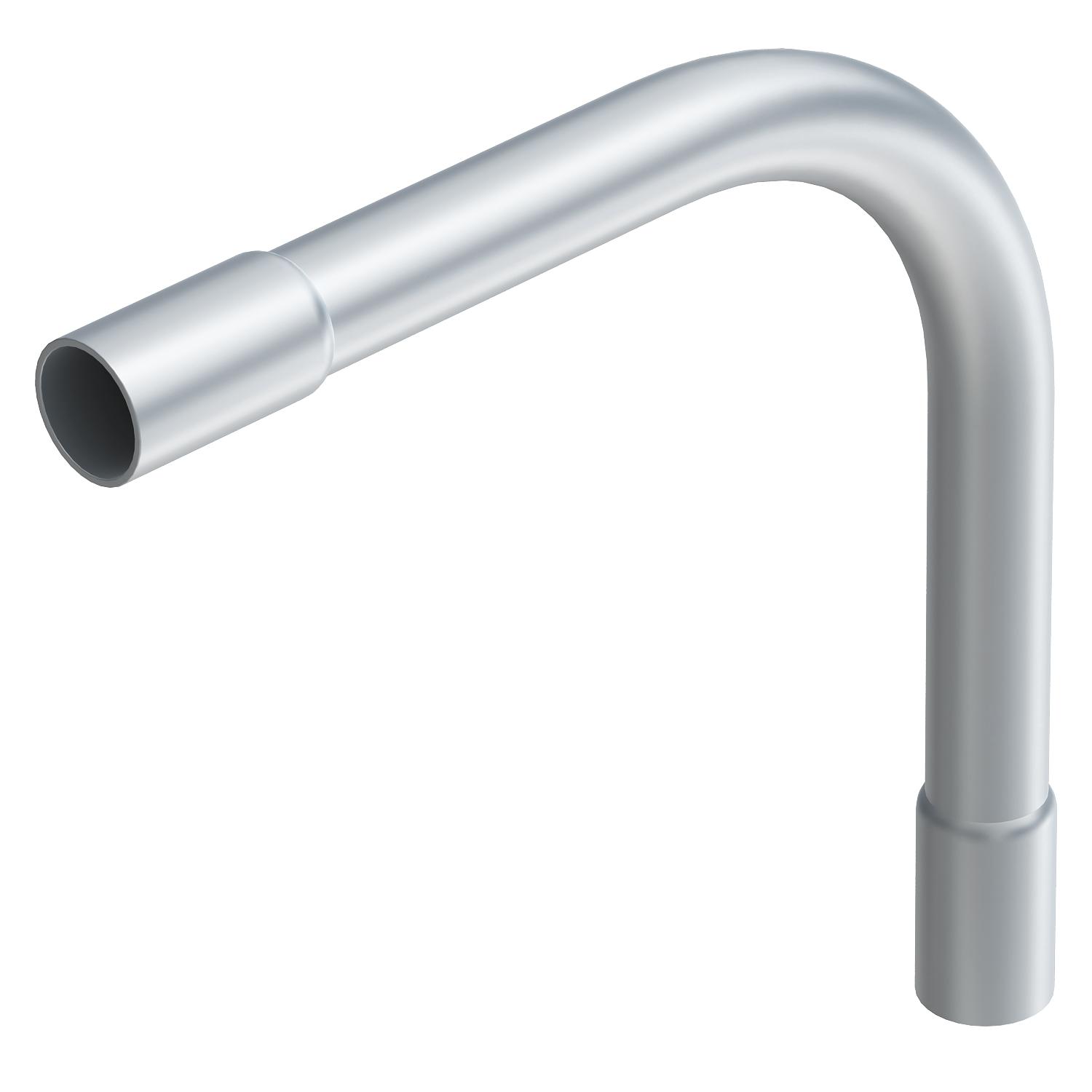

Aluminium pipe bend, without thread
Item no. 2046014 | EAN 4012195925903
- Product description
-
Product description90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
-
- Technical data
-
Technical data

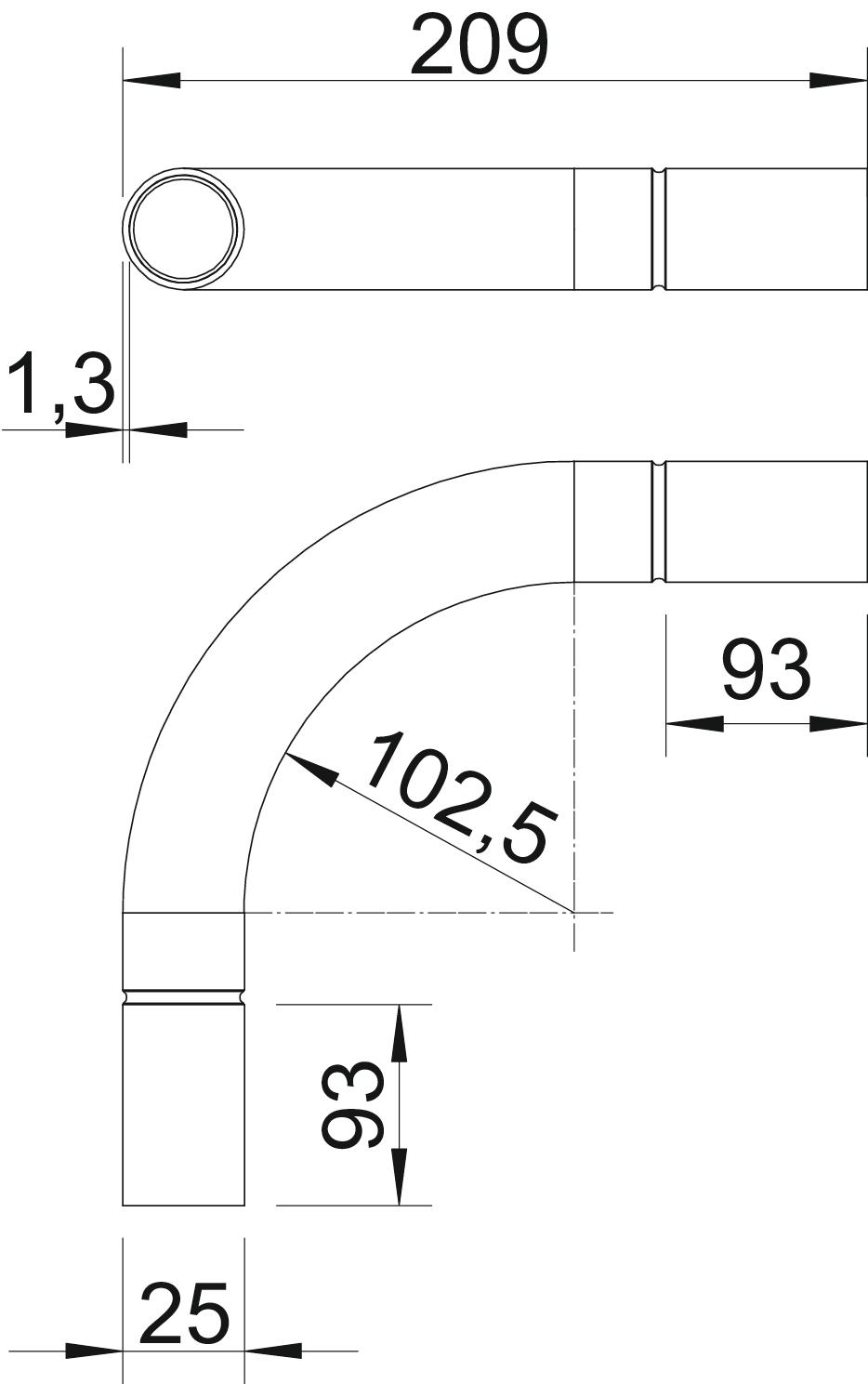

Angle of the bend 90 ° Brushed surface no Dimension Ø25mm Dimension A 93 mm Dimension B 209 mm Dimension D 25,2 mm Dimension l 38 mm Dimension m (mm) M25 Dimension R 90 mm Dimension t 1,3 mm Flexible no For nominal pipe diameter 25 mm Halogen-free no Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SB25W ALU / 2046014 , 0.23MB , pdfREACH Declaration of conformity SB25W ALU / 2046014 , 0.12MB , pdfRoHS Declaration of conformity SB25W ALU / 2046014 , 0.12MB , pdf
