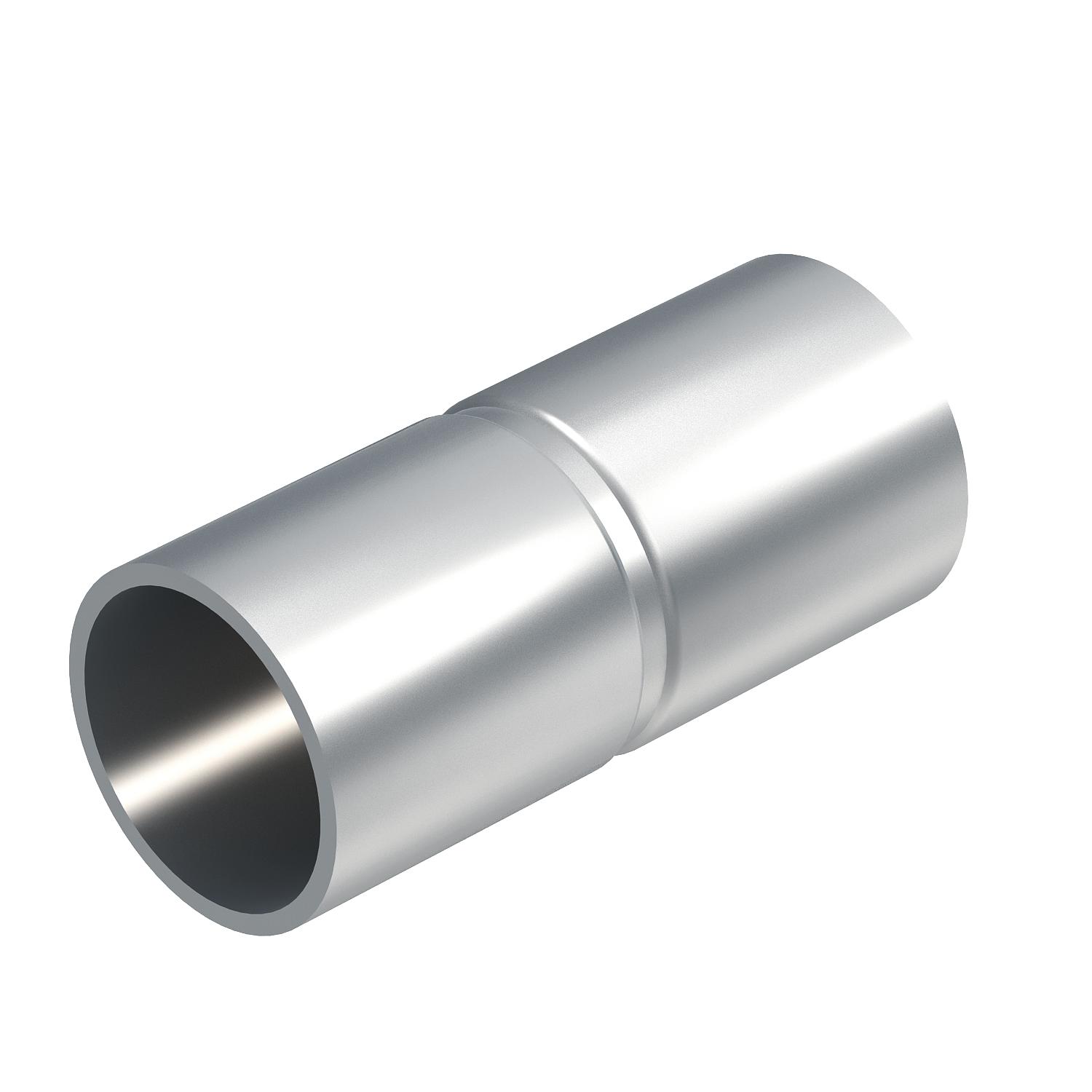

Aluminium sleeve, without thread

Item no. / Types

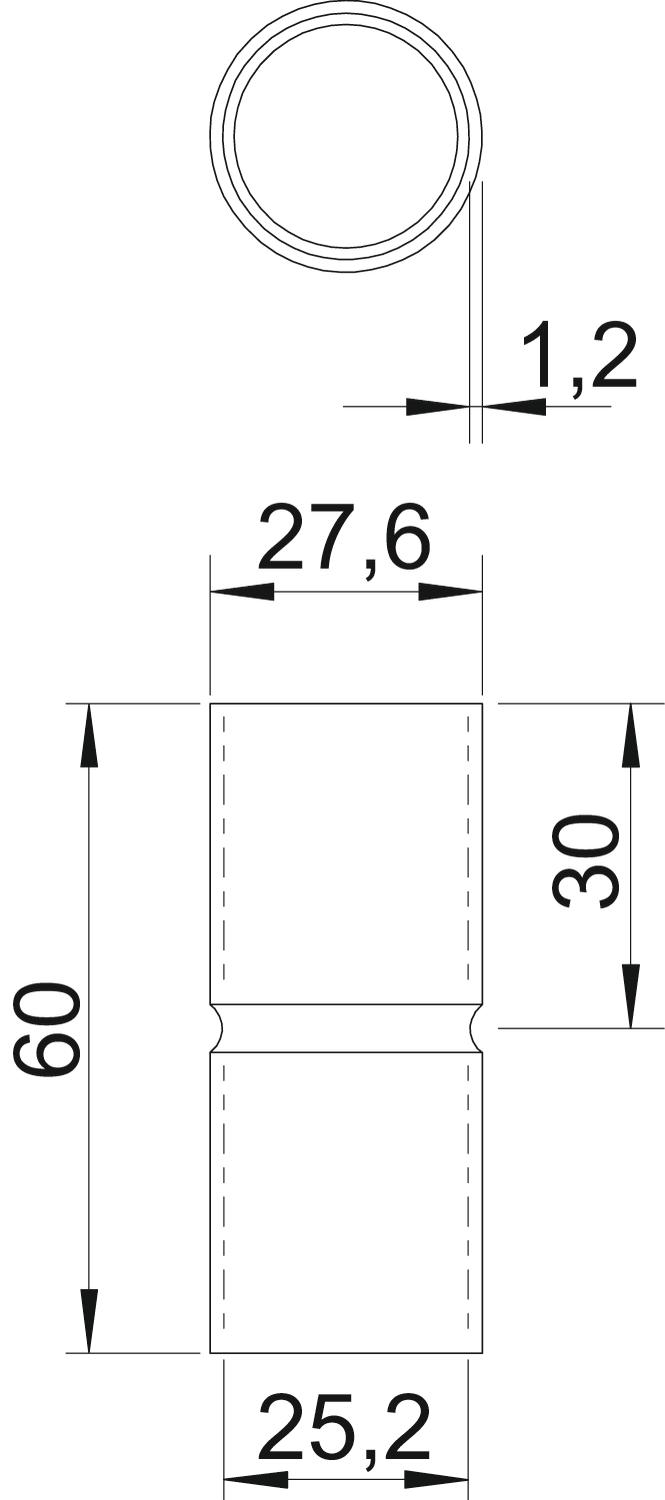

Dimension D

Dimension d

Product description

Product description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.

Technical data

Length	60 mm
Material	Aluminium
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Polished surface	no
Size	25
Two-part	no
Version for	Connector
With inspection opening and lid	no

All types

All types

Types	Dimension D	Dimension d	Item no.	Quantity	SSU
SV16W ALU	18.6 mm	16.2 mm	2046022	piece	50 piece
SV20W ALU	22.6 mm	20.2 mm	2046023	piece	50 piece
SV25W ALU	27.6 mm	25.2 mm	2046024	piece	50 piece
SV32W ALU	34.6 mm	32.2 mm	2046025	piece	50 piece
SV40W ALU	43 mm	40.2 mm	2046026	piece	20 piece
SV50W ALU	53 mm	50.2 mm	2046027	piece	20 piece
SV63W ALU	66.2 mm	63.2 mm	2046028	piece	20 piece
