Anchor rod

Item no. 3497824 | EAN 4012196606771

Item no. / Types

Length

Thread

Dimension d

WAF

Product description

Product description

With the anchor rod and matching plastic wire sleeve, loads are fastened without spreading pressure in masonry walls using the VMS plus injection mortar. The system is also used for fastening in concrete ceilings. On concrete and full brick walls, the anchor rod is only mounted with the injection mortar VMU plus, without a wire sleeve.

The anchor rod VMU-A 8x110 mm is mounted using the plastic wire sleeve VM-SH 12x80 or VM-SH 16x85.

The VMU-A 10x130 mm anchor rod is mounted using the VM-SH 16x85 plastic wire sleeve.

The VMU-A 10x150 mm anchor rod is mounted using the VM-SH 16x85 or VM-SH 16x130 plastic wire sleeve.

The VMU-A 12x155 mm anchor rod is mounted using the VM-SH 20x85 plastic wire sleeve.

Technical data

Technical data

Depth marking	yes

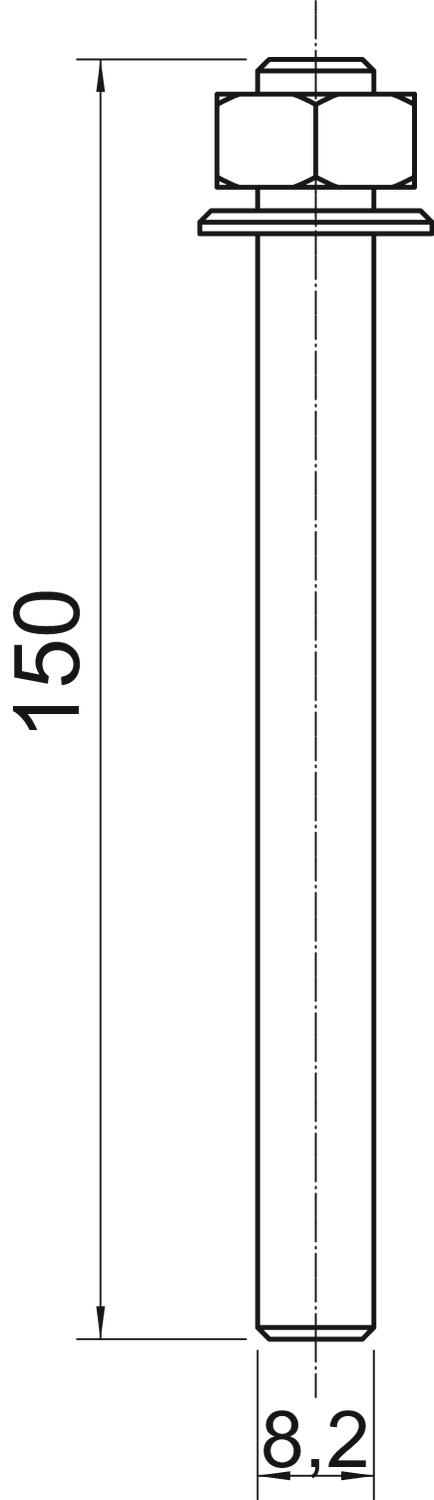

Dimension	150x8,2
Dimension d	10 mm
Dimension L	150 mm
Length	150 mm
Material	Steel
Resistance grade	5.8

Surface	Electrogalvanized
Thread	M10
Thread metric	10
Thread type	Metric
WAF	17
With external thread	yes

All types

All types

Types	Length	Thread	Dimension d	WAF	Item no.	Quantity	SSU
VMU-A 10-130vz	130 mm	M10	10 mm	17	3497822	piece	10 piece
VMU-A 10-150vz	150 mm	M10	10 mm	17	3497824	piece	10 piece
VMU-A 12-155vz	155 mm	M12	12 mm	19	3497826	piece	10 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Plastic wire sleeve	VMU-SH 16x85	3497862	piece	10 piece
Plastic wire sleeve	VMU-SH 16x130	3497864	piece	10 piece
Injection mortar in cartridge, 420 ml	VMU plus 420	3497803	piece	1 piece
