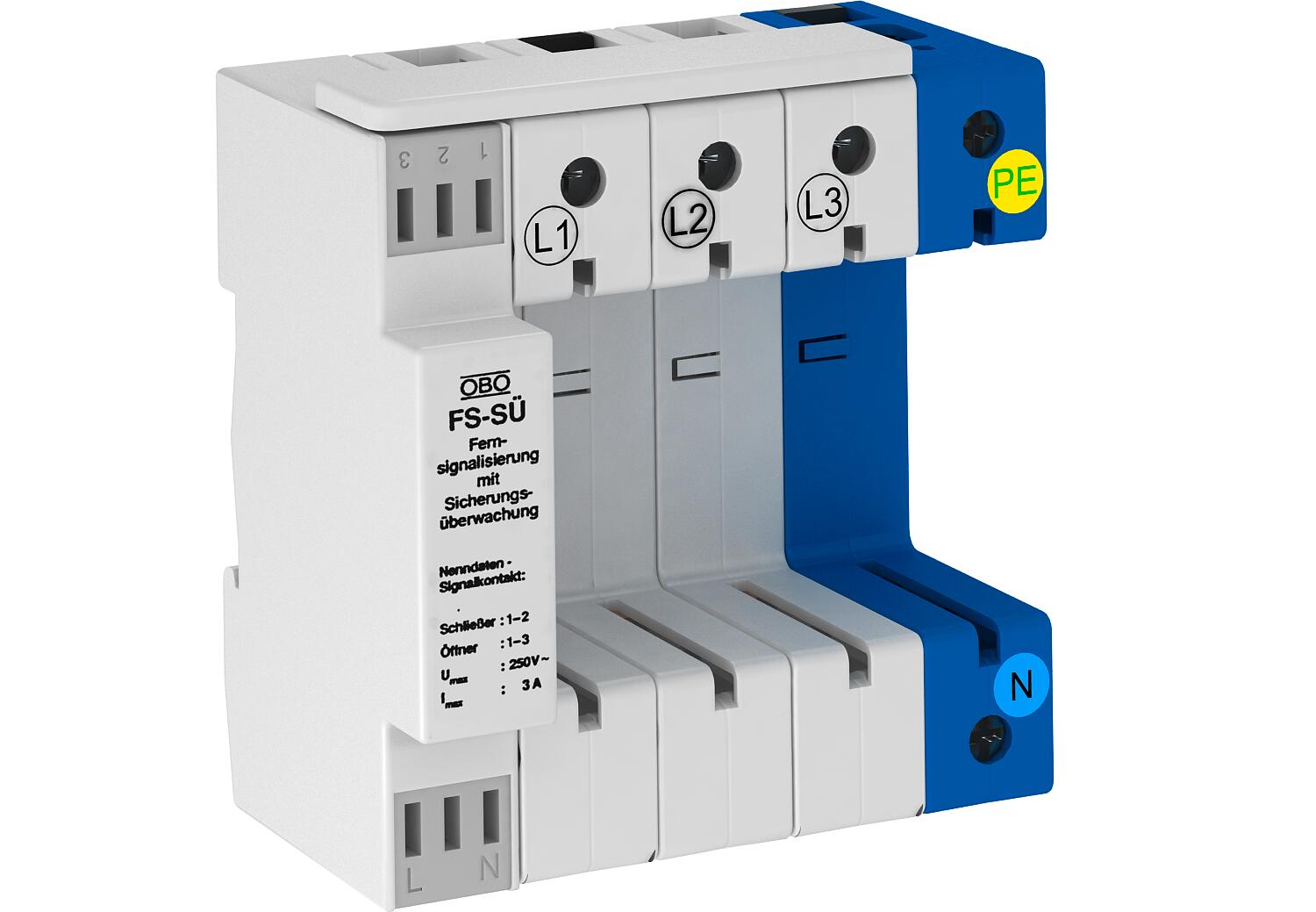

Base, MultiBase + NPE with fuse monitoring
Item no. 5096370 | EAN 4012195063407
- Product description
-
Product description
• Suitable for V 25-B+C, V 20-C and V 10-C
• With voltage monitoring of phases and function monitoring
• With remote signalling, potential-free changeover contact, for function monitoring
• For TN-S and TT network systems
• Pre-mounted and ready for connection
-
- Technical data
-
Technical data
Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 3+NPE Installation type DIN rail 35 mm Network form TN-S Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3+N/PE Protection rating IP20 Remote signalling yes Version for 3-NPE with FS-SÜ - All types
- Downloads
-
Data sheet V20-C U-3+NPE / 5096370 , 0.21MB , pdf
