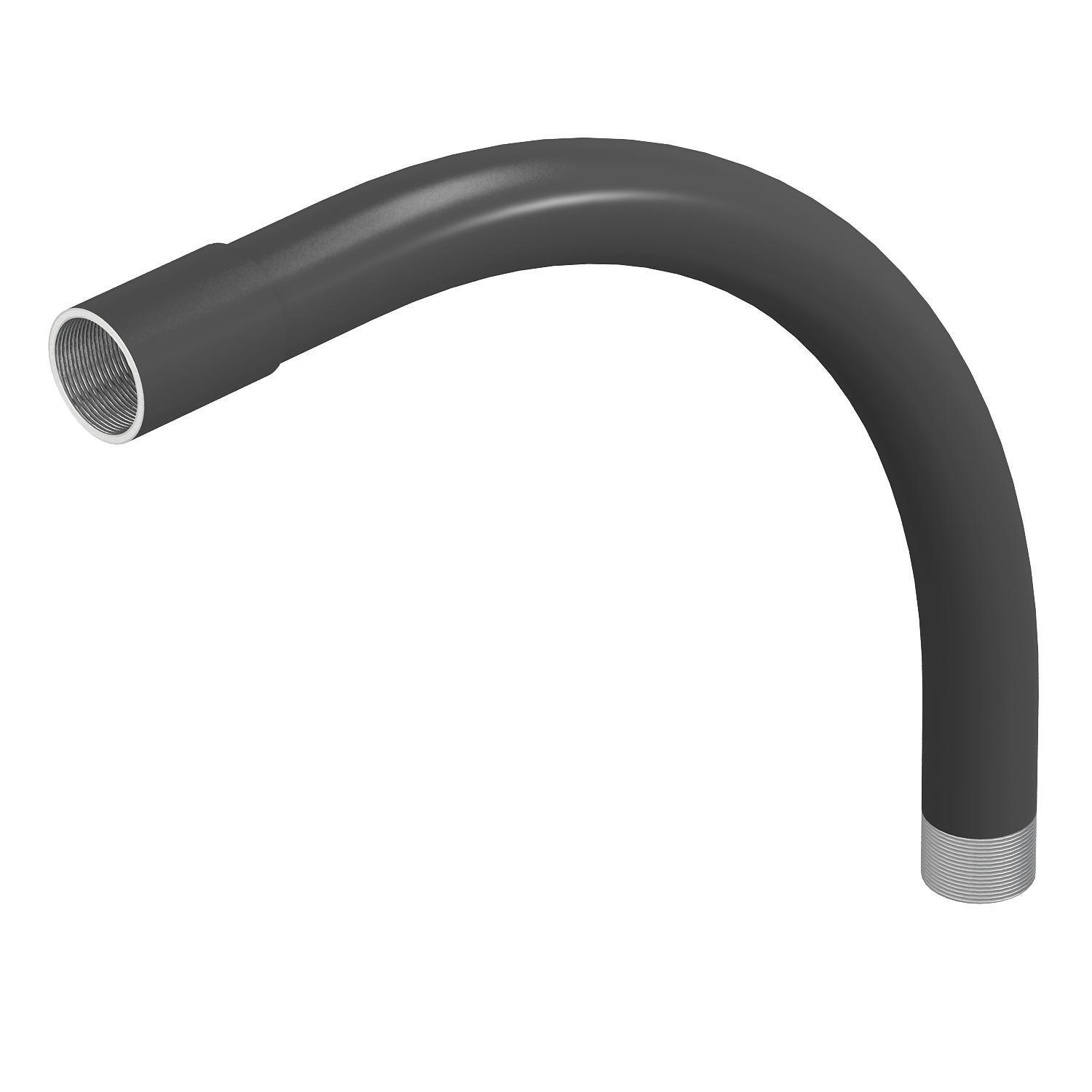

Black powder-coated steel bend, with thread
Item no. 2046797 | EAN 4012196387762
- Product description
-
Product description90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

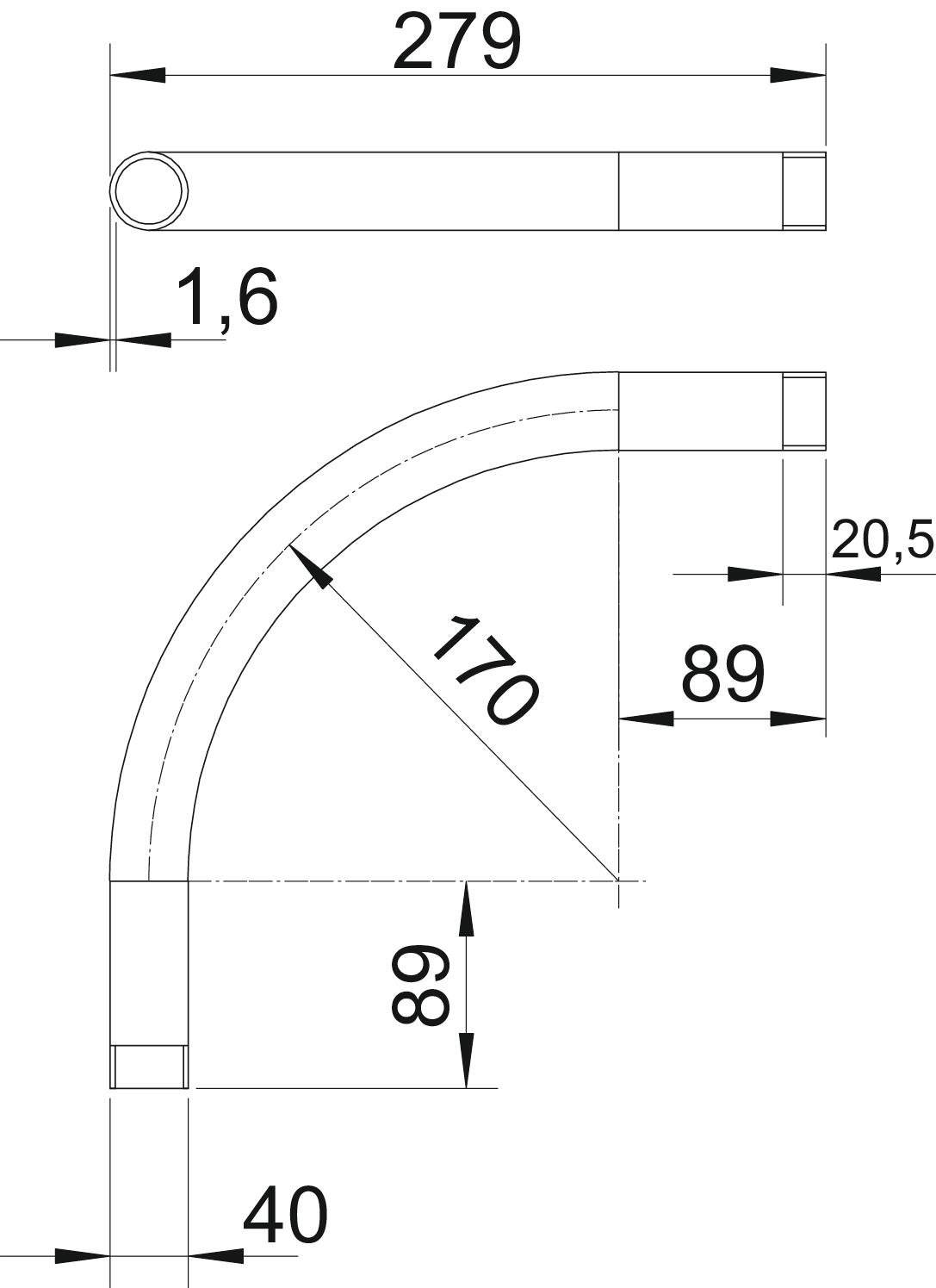

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension M40x1,5 Dimension A 89 mm Dimension B 279 mm Dimension D 40 mm Dimension l 20,5 mm Dimension m (mm) M40 Dimension R 170 mm Dimension t 1,6 mm Flexible no For nominal pipe diameter 40 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Thread M40x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBNM40 SW / 2046797 , 0.27MB , pdf
