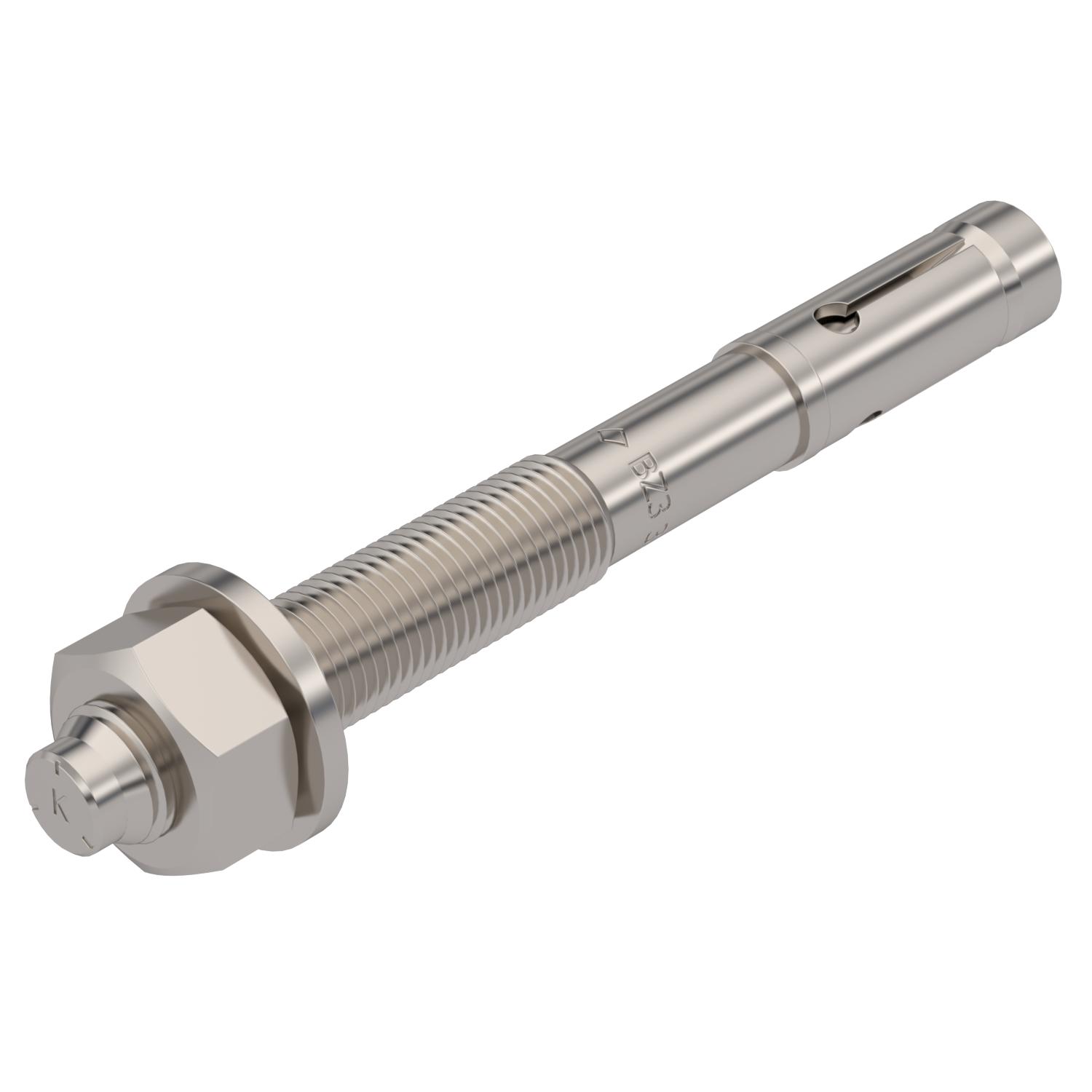

Bolt tie BZ3 A5
Item no. 3498734 | EAN 4012197412890
- Product description
-
Product descriptionBolt tie BZ3 for the anchoring of medium-duty to heavy-duty loads, both in cracked and non-cracked concrete. Suitable for heavy loads with small edge and axial distances. For knocking in.
European Technical Approval ETA-19/0619, including characteristic values under fire exposure to fire resistance R 120.
Proof of suitability in the event of of seismic impacts, categories C1 and C2.
Shock approval by the Federal Office for Civil Protection in Bern, Switzerland.
* With large washer to DIN EN ISO 7093-1 (DIN 9021)
-
- Technical data
-
Technical data

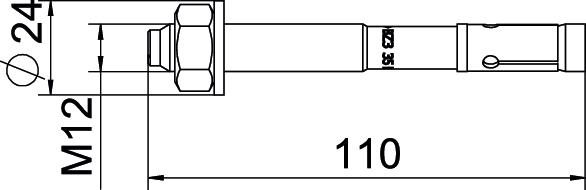

Anchor/nail/bolt version Spreading anchor Clamping range, max. 35 mm Colour stainless steel Dimension M12x110 Dimension L 110 mm Drill hole depth 83 mm Drill hole diameter, min. 12 mm ETA earthquake rating C1 and C2 Fire protection class to EN 13501-2 Other Length 110 mm Material Stainless steel Mounting type, anchor, tie Pre-mounting Surface Bright, treated Thread M12 Thread metric 12 Thread type Metric Tie fastening device Nut Tie screw system Hexagon head Version for For knocking in Version, tie External thread WAF 19 - All types
