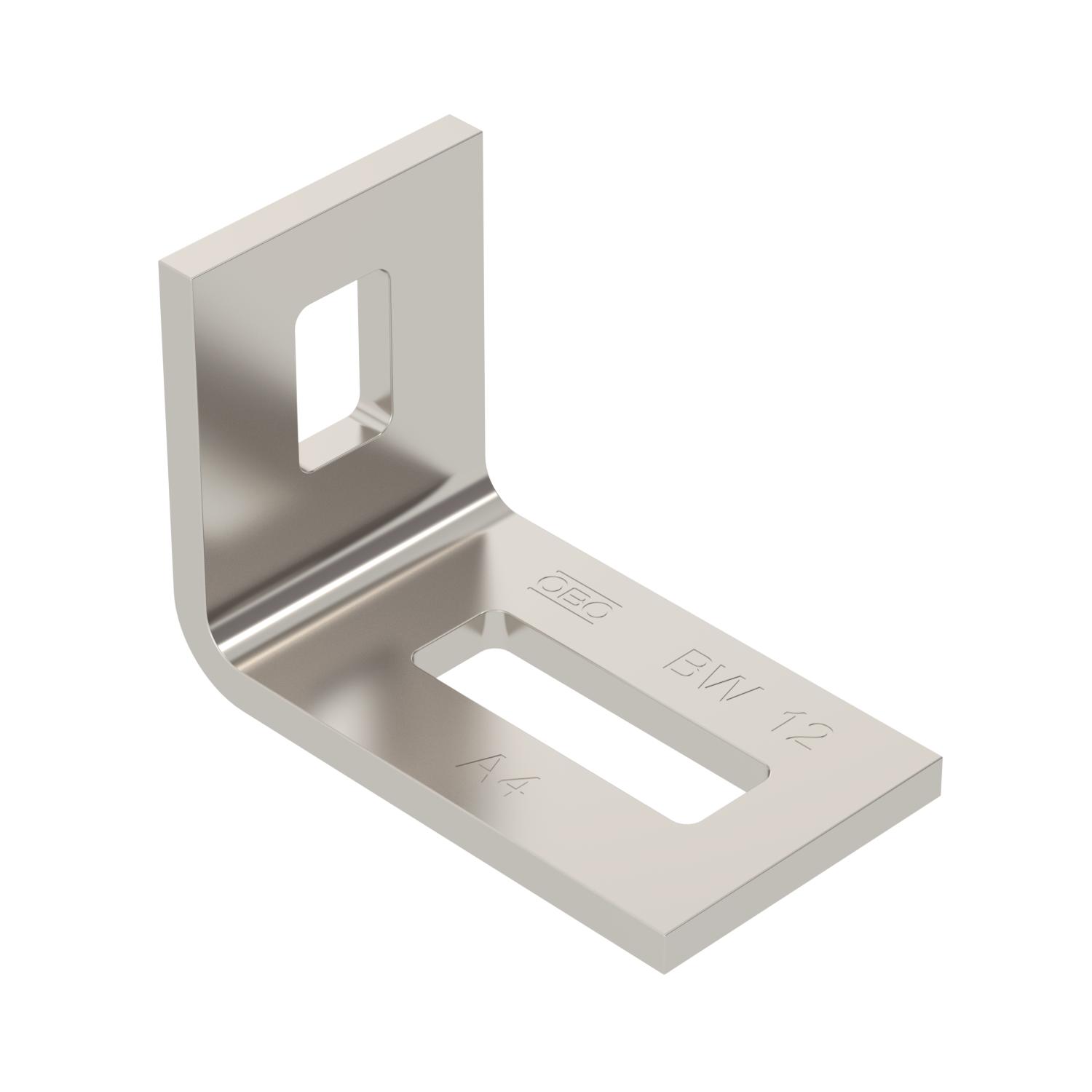

BW 12 A4 fastening bracket
Item no. 6019506 | EAN 4012197352301
- Product description
-
Product description
Fastening bracket for fastening supports, vertical ladders and constructions on walls, ceilings or steel scaffolding.
-
- Technical data
-
Technical data

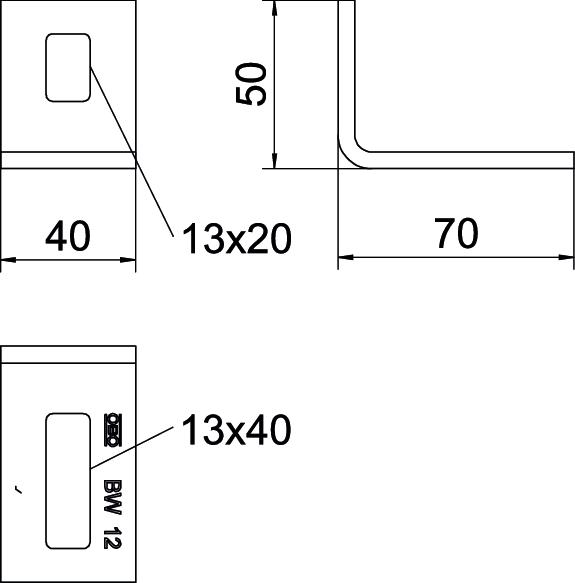

Adjustable no Dimension 70x50x40 Height 50 mm Length 70 mm Maintain electrical functions no Material Stainless steel Material thickness 5 mm Suitable for profile shapes U profile Surface Bright, treated Version for Fastening bracket Width 40 mm With screw accessories no - All types
- Downloads
-
Data sheet BW 12 A4 / 6019506 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity BW 12 A4 / 6019506 , 0.11MB , pdfREACH Declaration of conformity BW 12 A4 / 6019506 , 0.12MB , pdfRoHS Declaration of conformity BW 12 A4 / 6019506 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
