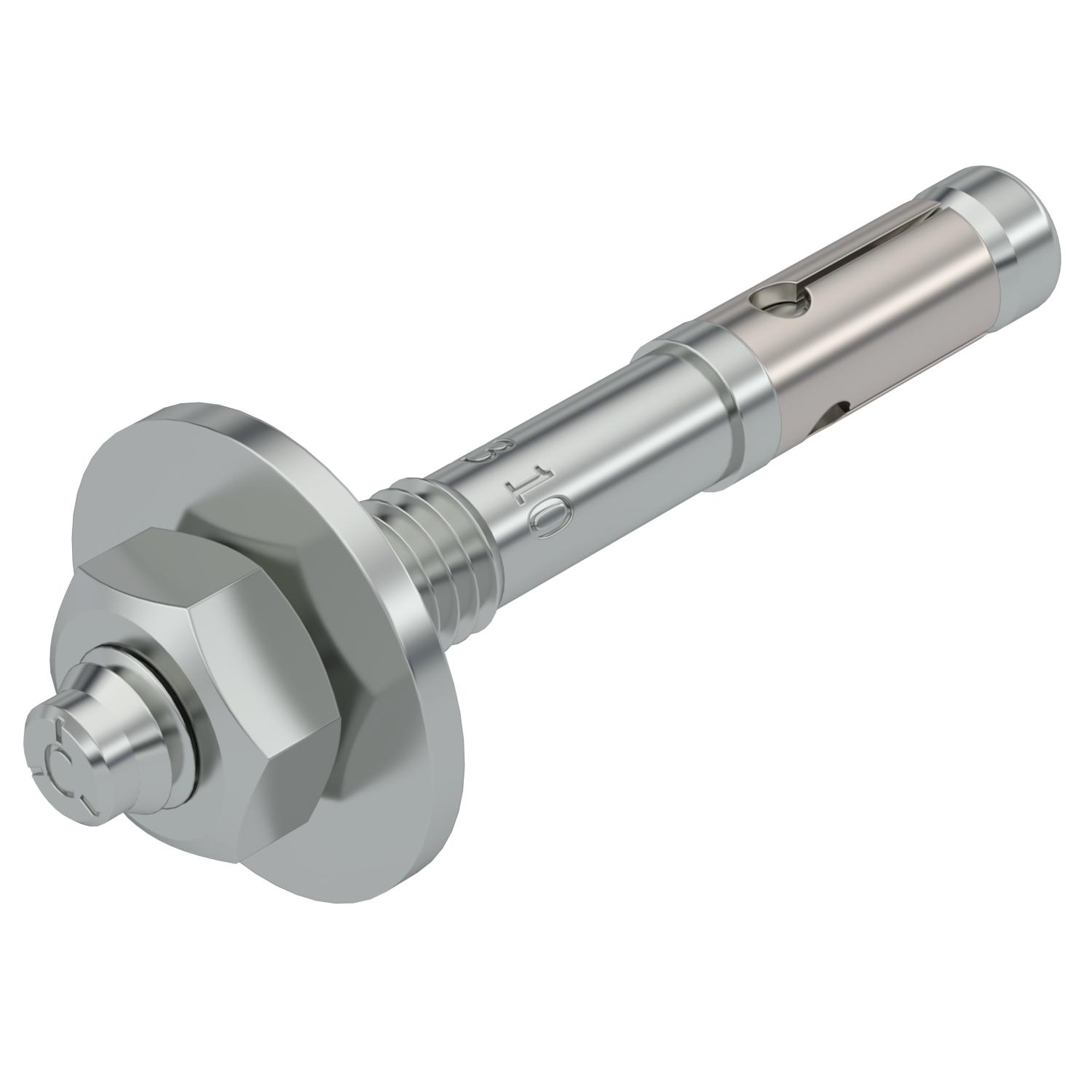

BZ3 bolt tie
Item no. 3498680 | EAN 4012197357191
- Product description
-
Product descriptionBolt tie BZ3 for the anchoring of medium-duty to heavy-duty loads, both in cracked and non-cracked concrete. Suitable for heavy loads with small edge and axial distances. For knocking in.
European Technical Approval ETA-19/0619, including characteristic values under fire ex-
posure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
Shock approval by the Federal Office for Civil Protection in Bern, Switzerland.
* With large washer to DIN EN ISO 7093-1 (DIN 9021)
-
- Technical data
-
Technical data

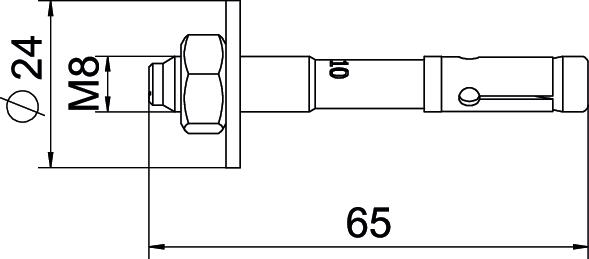

Anchor/nail/bolt version Spreading anchor Approvals available yes Clamping range, max. 10 mm Colour zinc Dimension M8x65 Dimension L 65 mm Drill hole diameter, min. 8 mm ETA earthquake rating C1 and C2 Fire protection class to EN 13501-2 Other Length 65 mm Material Steel Mounting type, anchor, tie Pre-mounting Surface Electrogalvanized Thread M8 Thread length 23 mm Thread metric 8 Thread type Metric Tie fastening device Nut Tie screw system Hexagon head Version for For knocking in Version, tie External thread WAF 13 - All types
-
All types
- Downloads
-
Data sheet BZ3 8x65/0-10 / 3498680 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity BZ3 8x65/0-10 / 3498680 , 0.11MB , pdfREACH Declaration of conformity BZ3 8x65/0-10 / 3498680 , 0.12MB , pdfRoHS Declaration of conformity BZ3 8x65/0-10 / 3498680 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
