Note: This article is discontinued.
You can find the current article here: 1362428 / Spacer clip 732 G

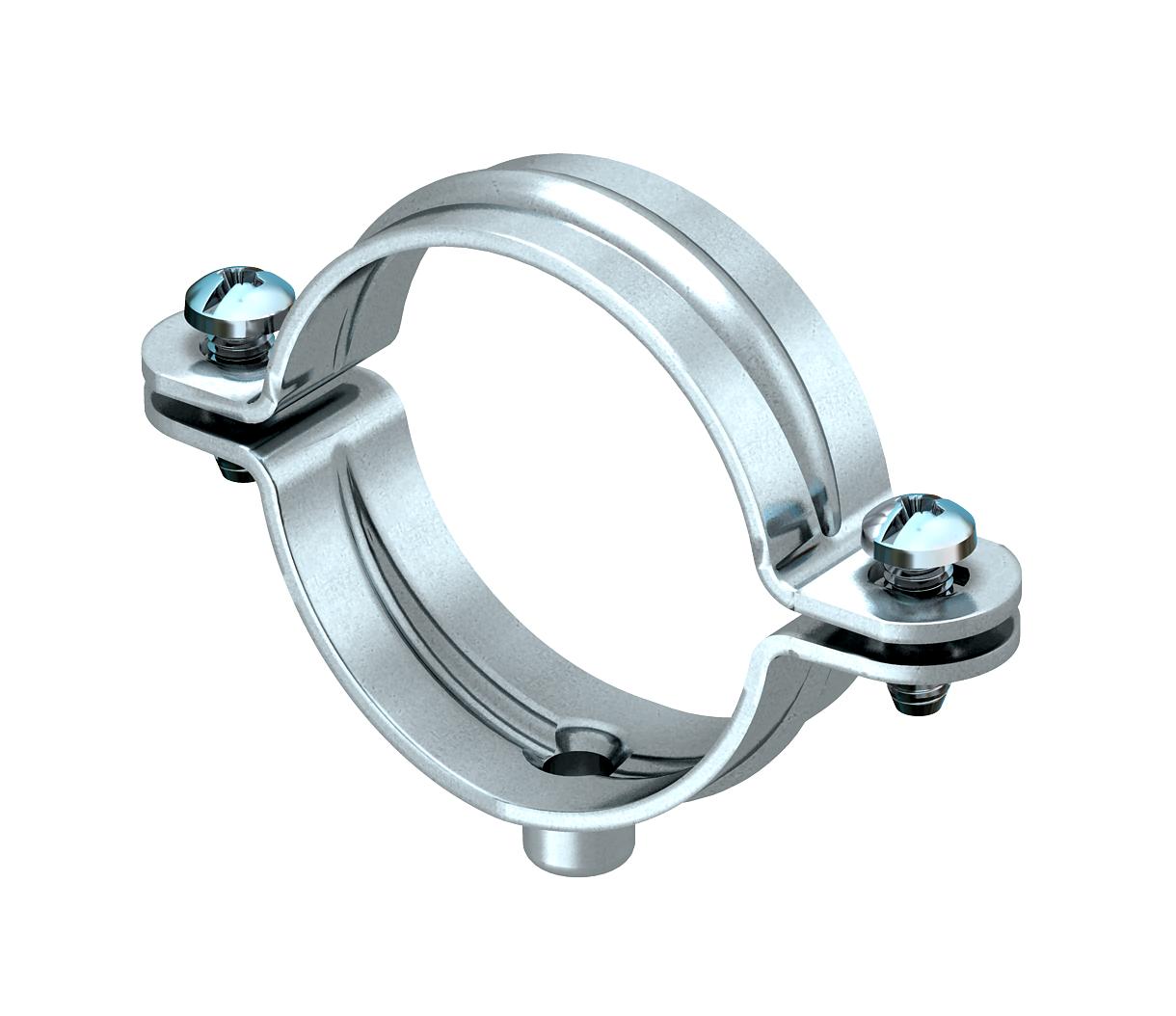

Cable and pipe spacer clip 732 with threaded connection
Item no. 1360264 | EAN 4012195115151
- Product description
-
Product descriptionMounting with screw-in spacer clips. Spacer clips and screw-in spacer clips are available in various materials: in V2A stainless steel, in electrogalvanised, hot-dip galvanised steel or in aluminium. Fastening can take place with bolt ties or angler anchors and Sprint screws.
Depending on the design, the clips can be "shot" using a bolt-firing tool or nail device.
-
- Technical data
-
Technical data
Bolt M5 x 12 Clamping range D, max. 26 mm Clamping range D, min. 24 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,055 kg CO₂e / 1 Piece Dimension 24-26mm Dimension A 52 mm Dimension B 40 mm Dimension b1 8,5 mm Dimension t1 (mm) 1 Dimension t2 (mm) 1,25 Dimension x 2 mm Distance to the wall yes Fastening type Threaded connection Halogen-free yes Hole size M6 mm Length 52 mm Material Steel Material thickness 1 mm Number of cables/pipes 1 Plastic-covered no Size M25 Suitable in fire protection area yes Surface Electrogalvanized, transparently passivated UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet 732 26 GTP / 1360264 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 732 26 GTP / 1360264 , 0.05MB , pdfREACH Declaration of conformity 732 26 GTP / 1360264 , 0.12MB , pdfRoHS Declaration of conformity 732 26 GTP / 1360264 , 0.12MB , pdf
