Note: This article is discontinued. You can find the current article here: 1362718 / Spacer clip 733 FT

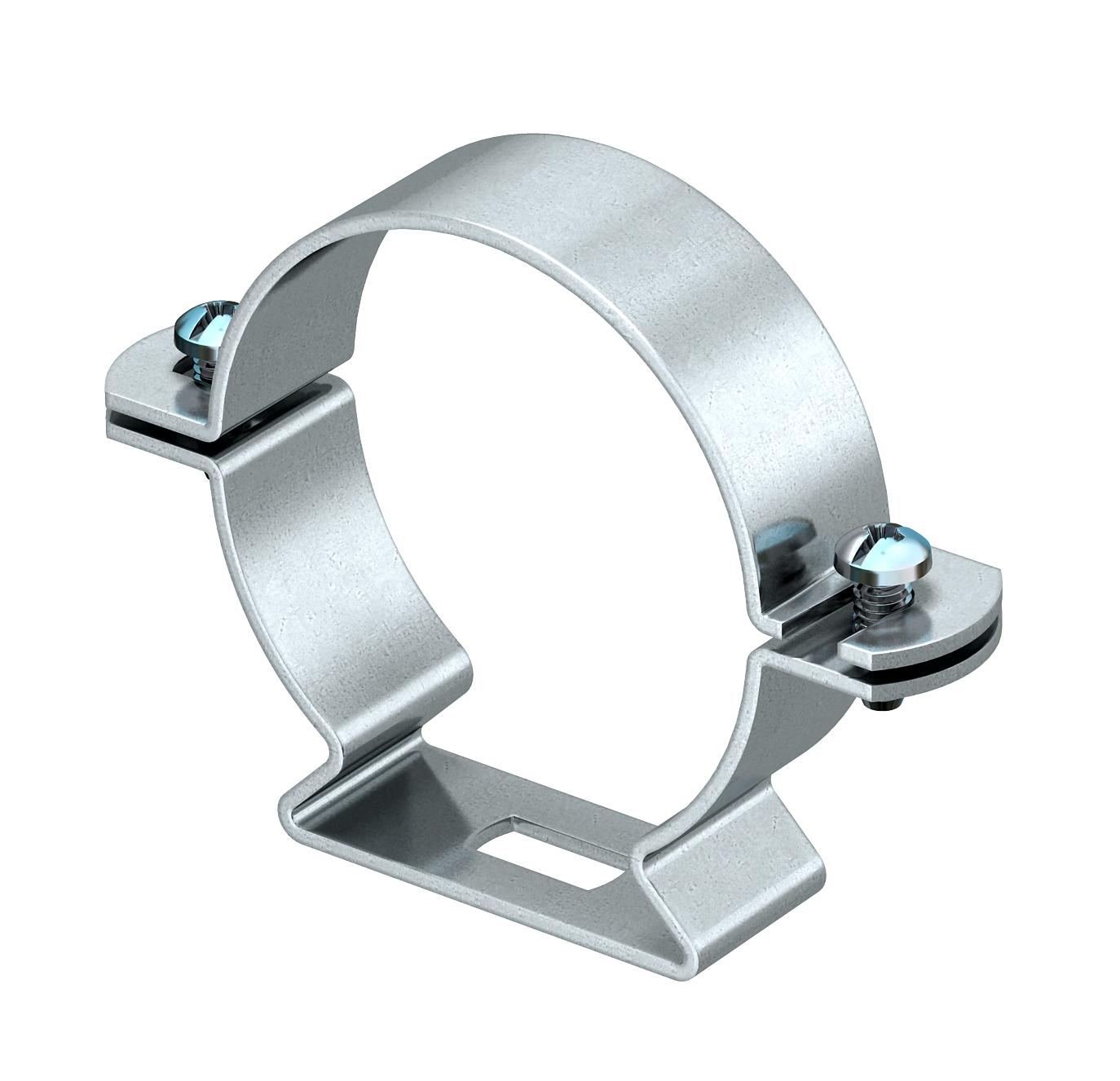

Cable and pipe spacer clip 733 FT

Item no. / Types

Material thickness	1.5 mm

Hole size

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

* Size M16 is not suitable for nail device.
* Sizes M16 to PG16 not suitable for bolt-firing tool.

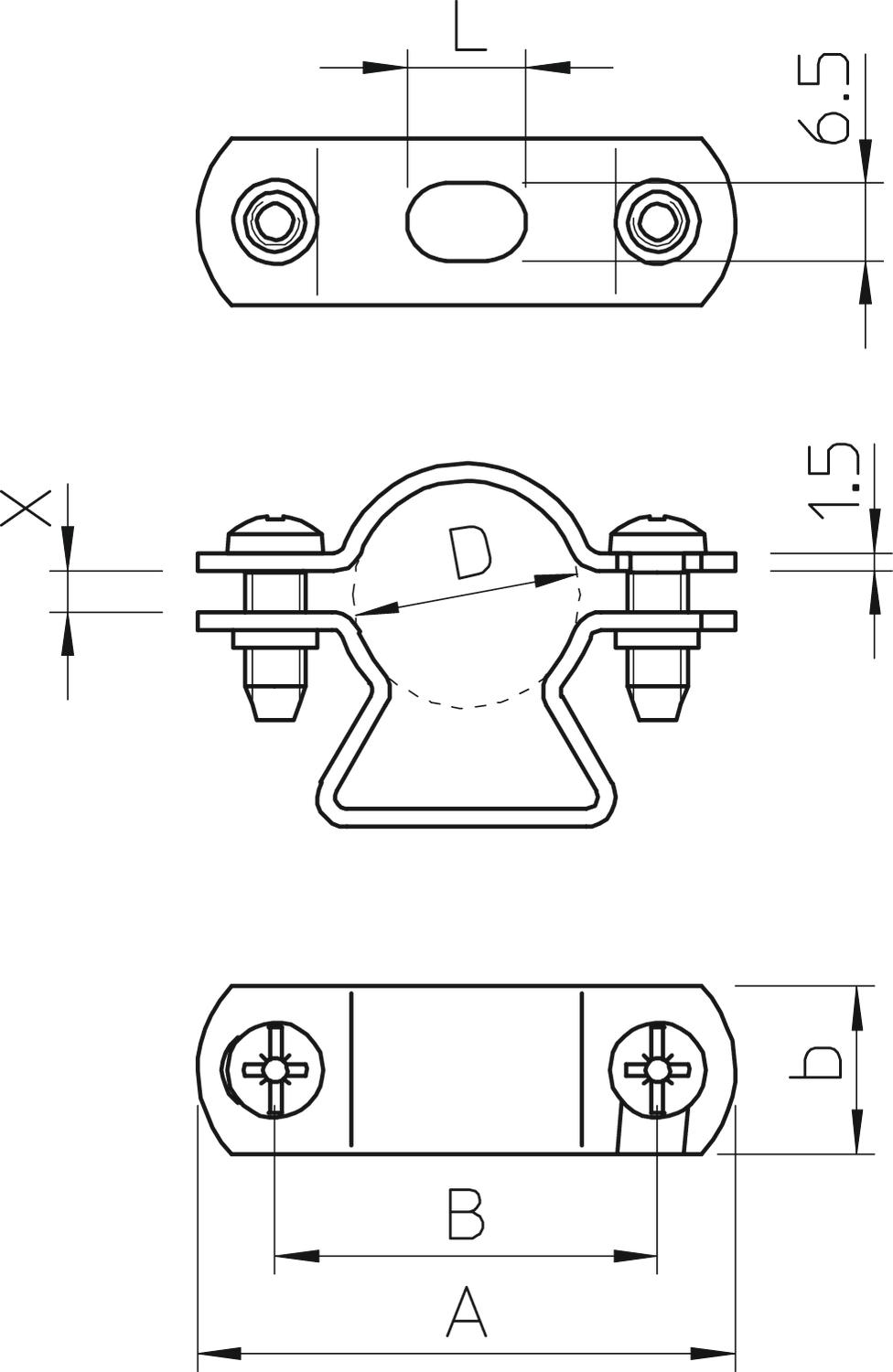

Technical data

Hole size	6,5 x 10 mm
Length	58 mm
Material	Steel
Material thickness	1,5 mm
Number of cables/pipes	1
Plastic-covered	no
Size	M25
Suitable in fire protection area	yes
Surface	Hot-dip galvanised
UV-resistant	yes
Version for	Closed
Width	16 mm

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
733 13 FT	1.5 mm	6,5 x 10 mm	11 mm	13 mm	Steel	Hot-dip galvanised	1361091	piece	50 piece
733 29 FT	1.5 mm	6,5 x 10 mm	24 mm	29 mm	Steel	Hot-dip galvanised	1361106	piece	50 piece
733 61 FT	1.5 mm	6,5 x 14 mm	53 mm	61 mm	Steel	Hot-dip galvanised	1361115	piece	20 piece
