Cable bracket for flat conductors

Item no. 5229553 | EAN 4012195411970

5229553 / 168 FL40-M8
40 x 4 mm flat
Product description

Product description

• For flat strap
• With internal thread (G)
• Mounting height 30 mm
Technical data

Technical data

Cable dimensions 40 x 4 mm flat
Conductor fastening type With screw clip

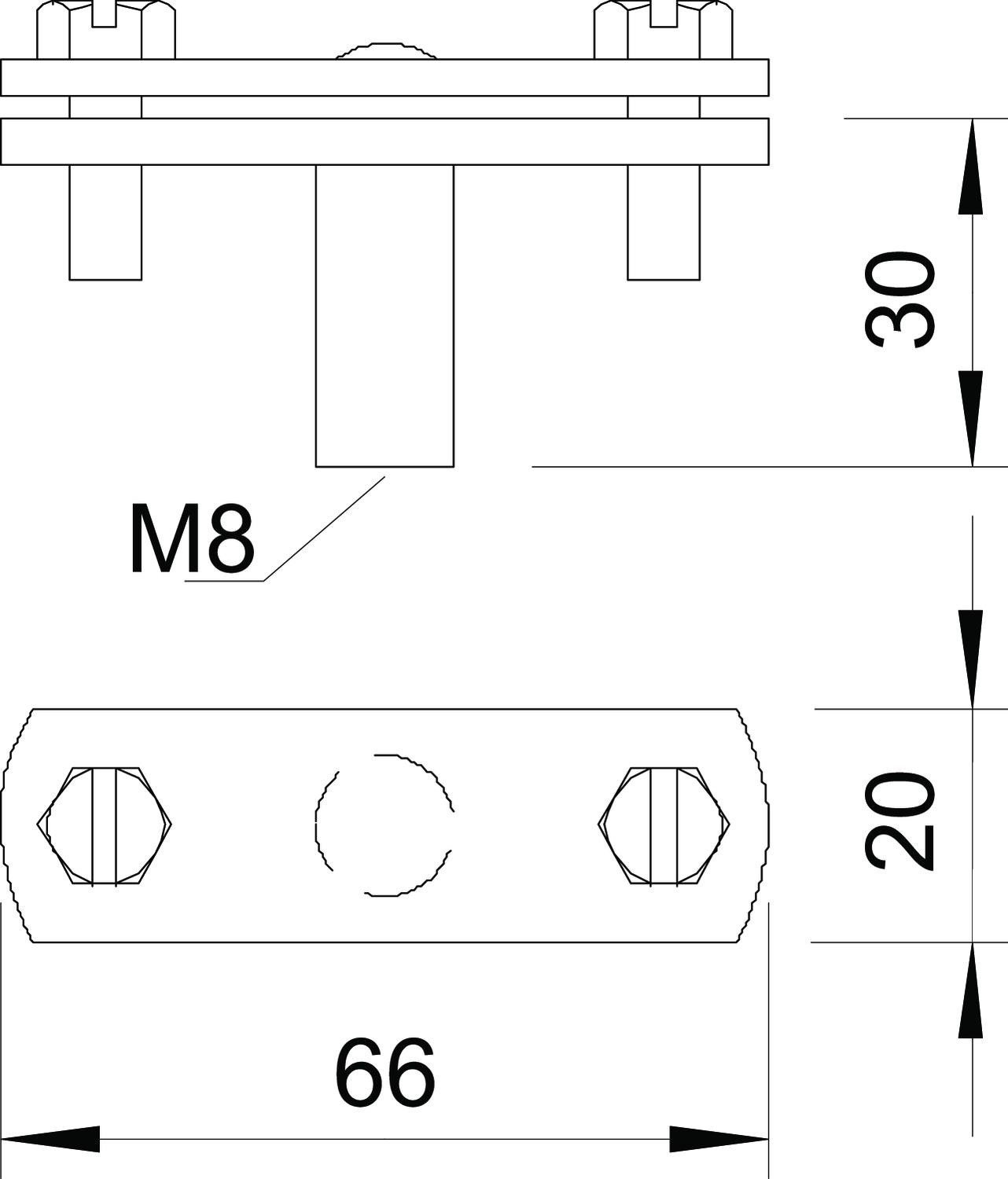

Dimension 40mm
Dimension B 66 mm
Dimension G M8 mm
High voltage-resistant, insulated version no
Holder fastening type Drill hole with M-thread
Material cast steel
Material of the base Malleable iron
Material of the crossbar Malleable iron
Material of the holder Malleable iron
Surface Hot-dip galvanised
Thread M8
Thread metric 8
Use in Ex area yes
All types

All types

Types Cable dimensions Item no. Quantity SSU
168 FL40-M8 40 x 4 mm flat 5229553
20 piece
