- Product description
-

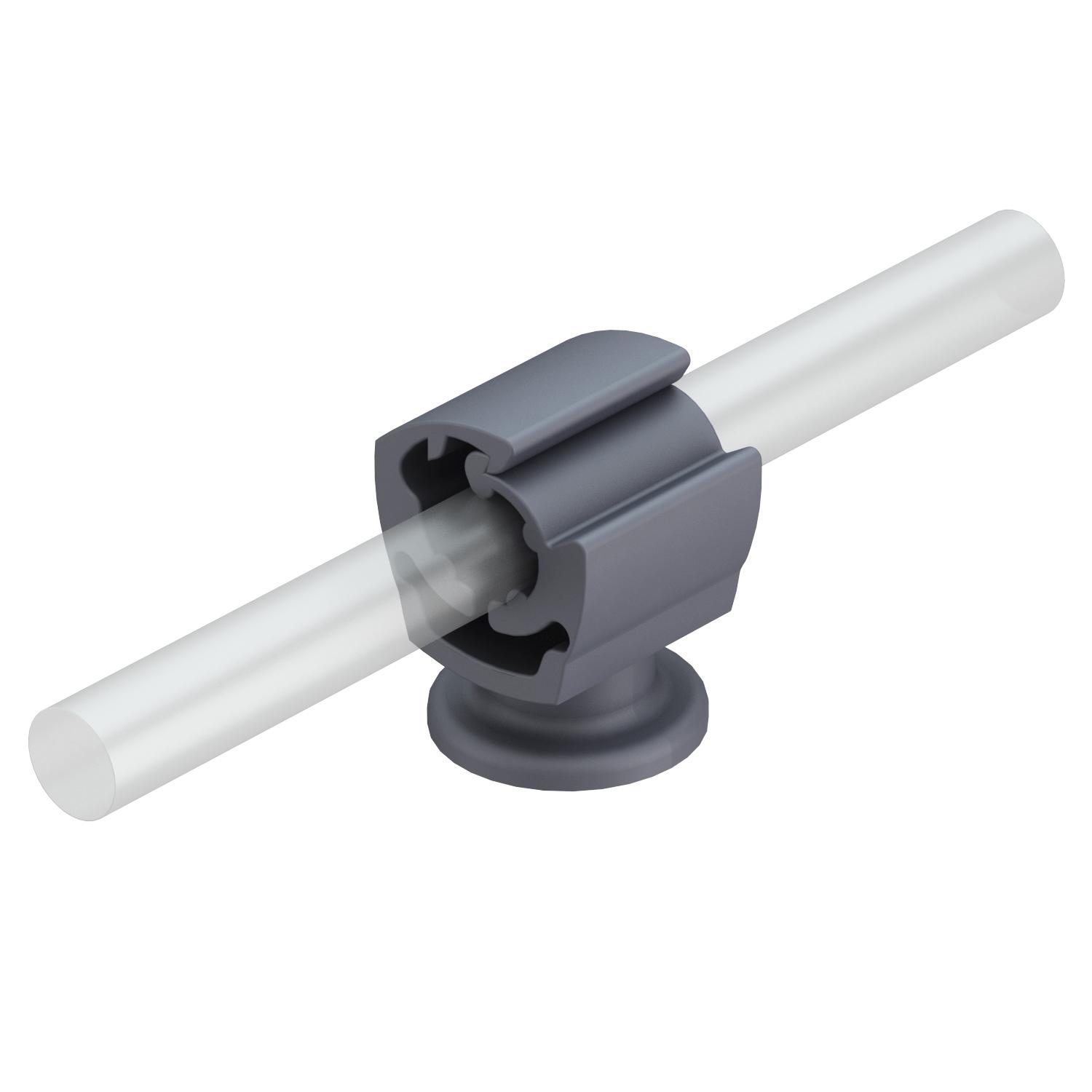

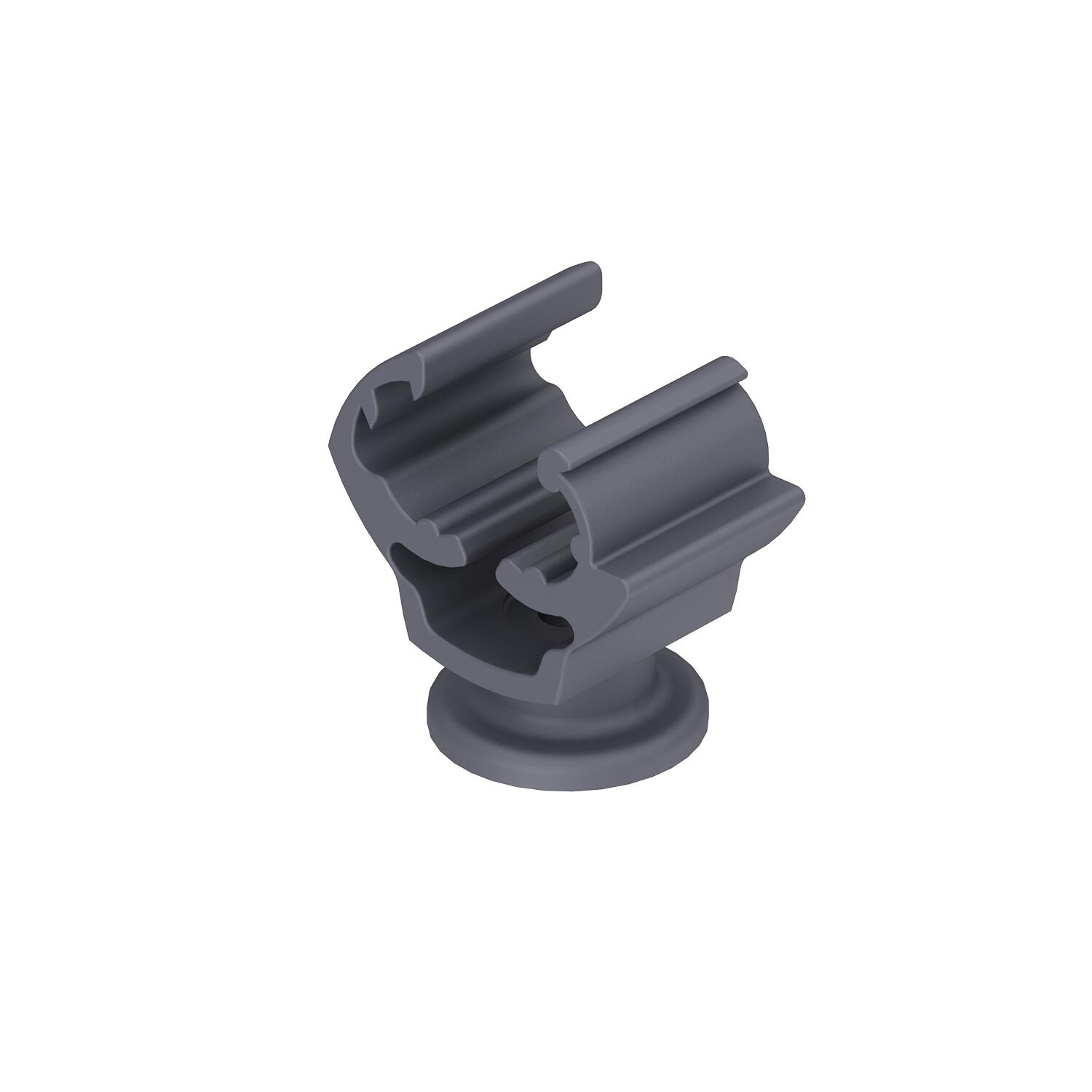

Product description• With female thread M8 or through hole Ø 7 mm
• Weather and temperature-resistant from -35 °C to +90 °C
- Technical data
-
Technical data

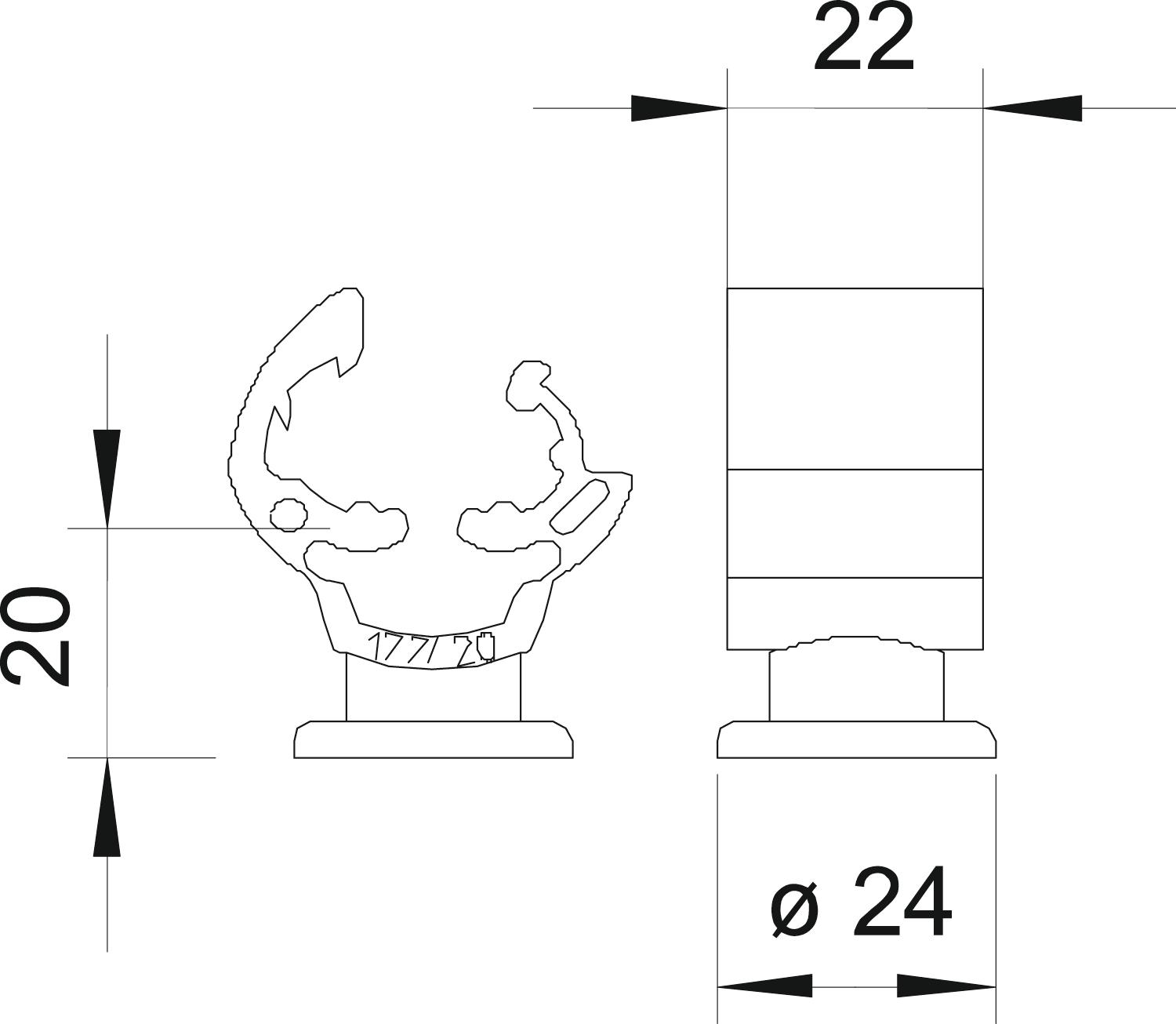

Cable dimensions 8−10 mm round Colour Grey Conductor fastening type With clamp clip CO₂ Footprint (GWP) Cradle-to-Gate 0,037 kg CO₂e / 1 Piece Dimension 20mm Holder fastening type Drill hole with M-thread Material Polyamide Material of the base Polyamide Material of the crossbar Polyamide Material of the holder Polyamide Mounting height 20 mm Thread metric 8 - All types
- Downloads
-
Data sheet 177 20 M8 / 5207444 , 0.16MB , pdfREACH Declaration of conformity 177 20 M8 / 5207444 , 0.12MB , pdfRoHS Declaration of conformity 177 20 M8 / 5207444 , 0.12MB , pdf
