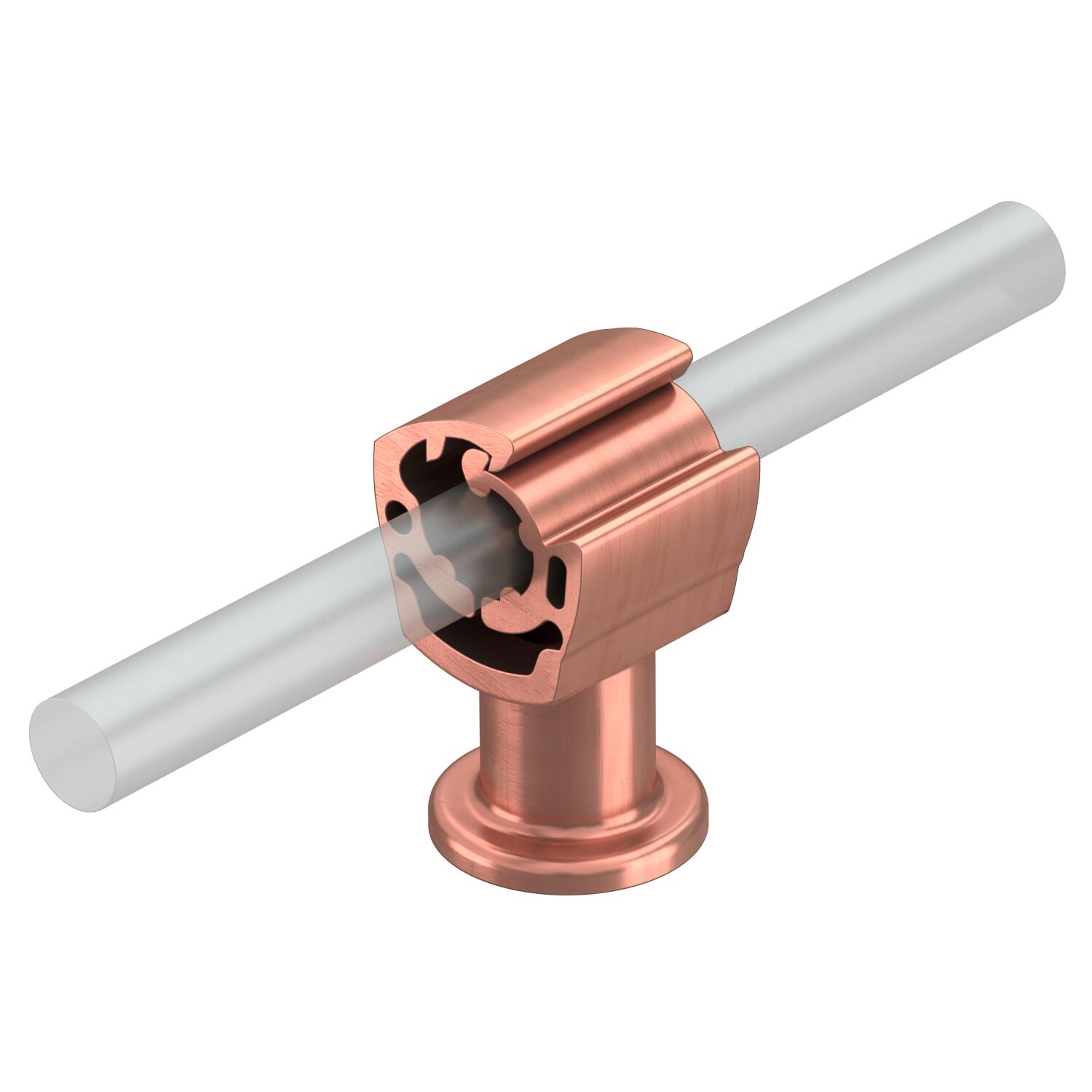

Cable bracket Rd 8–10 mm, copper-plated
Item no. 5207754 | EAN 4012195905059
- Product description
-
Product description• With female thread M8 for screwing and through hole for wood screws
• Colour: copper
• Weather and temperature-resistant from -35 °C to +90 °C
- Technical data
-
Technical data

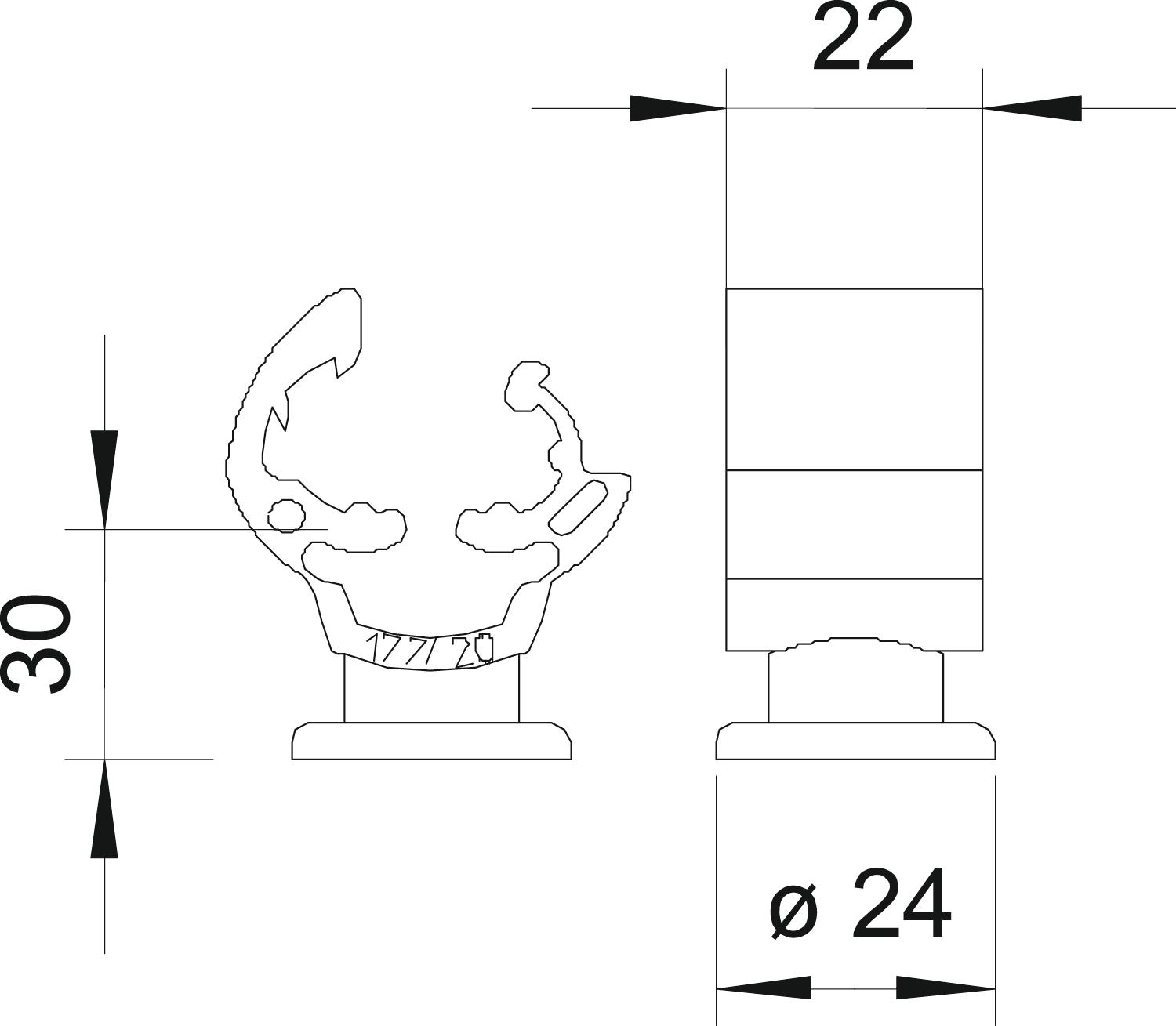

Cable dimensions 8−10 mm round Colour Copper Conductor fastening type With clamp clip Dimension 30mm Holder fastening type Drill hole with M-thread Material Polyamide Material of the base Polyamide Material of the crossbar Polyamide Material of the holder Polyamide Mounting height 30 mm Thread metric 8 - All types
- Downloads
-
Data sheet 177 30 CU / 5207754 , 0.19MB , pdfREACH Declaration of conformity 177 30 CU / 5207754 , 0.12MB , pdfRoHS Declaration of conformity 177 30 CU / 5207754 , 0.13MB , pdf
