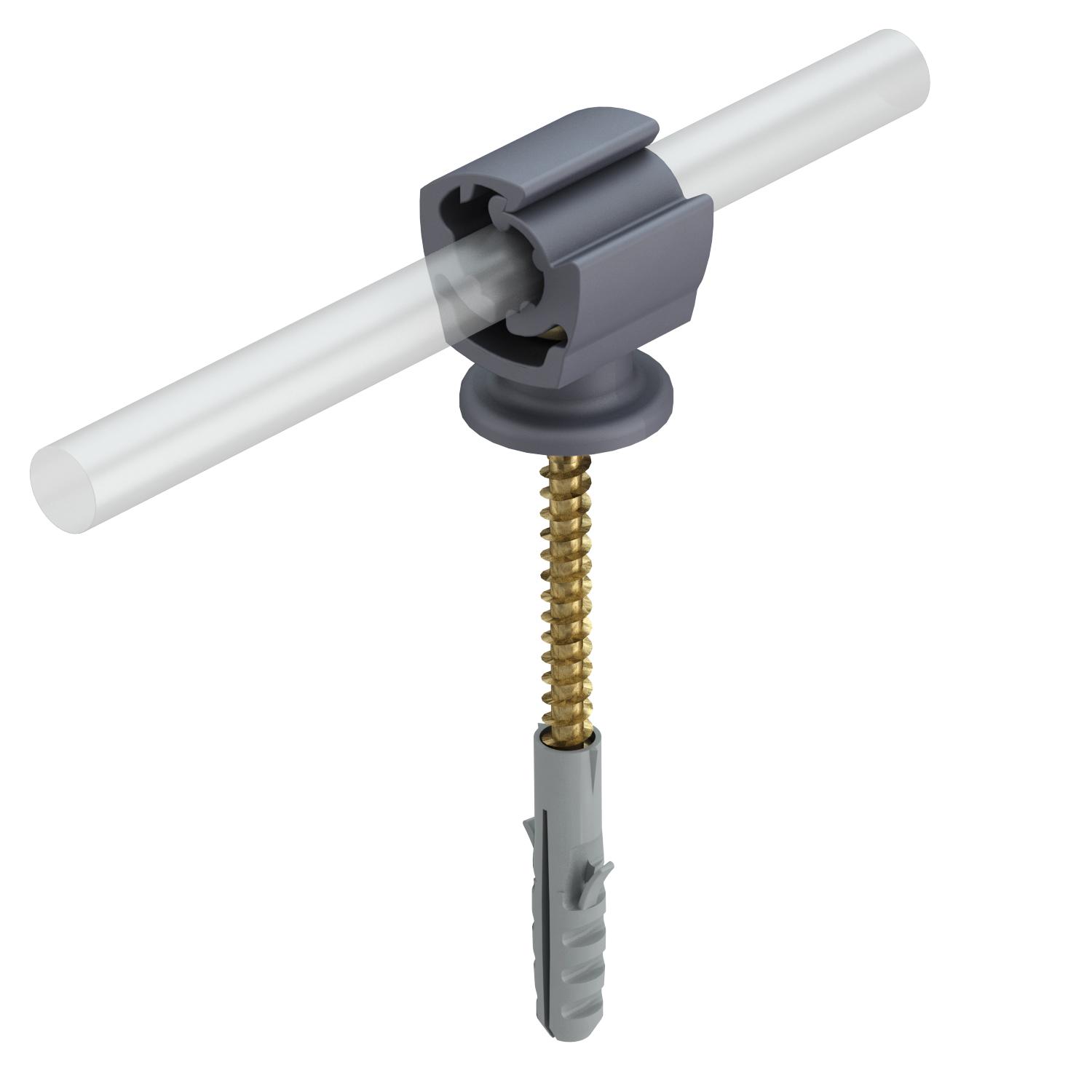

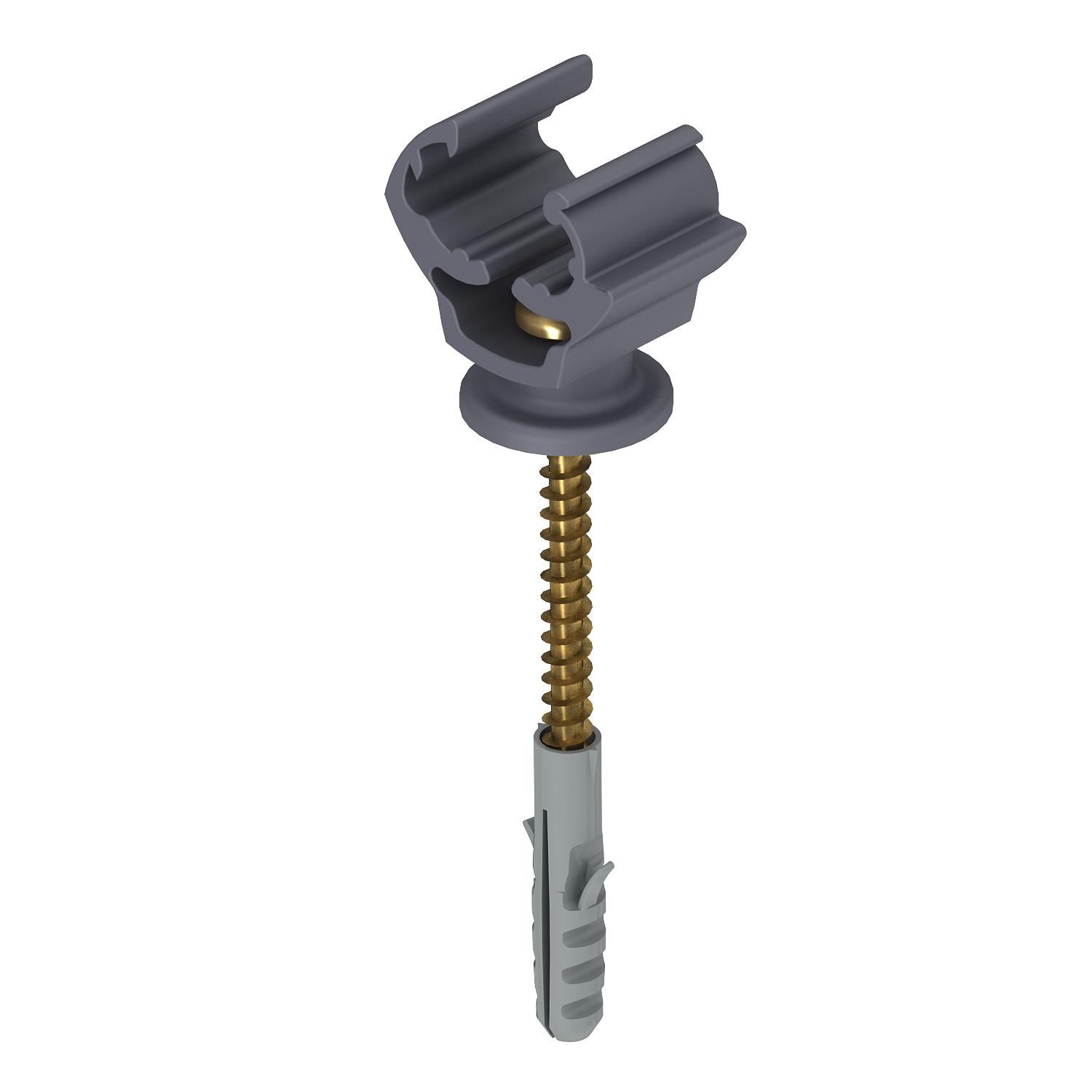

Cable bracket Rd 8−10 mm with pre-mounted wood screw
Item no. 5207851 | EAN 4012195336433
- Product description
-
Product description• With female thread M8 for screwing and through hole for wood screws
• For round conductor Rd 8-10
• Weather and temperature-resistant from -35 °C to +90 °C
• With pre-mounted wood screws (5 x 60) and plastic dowels (8 x 40)
- Technical data
-
Technical data

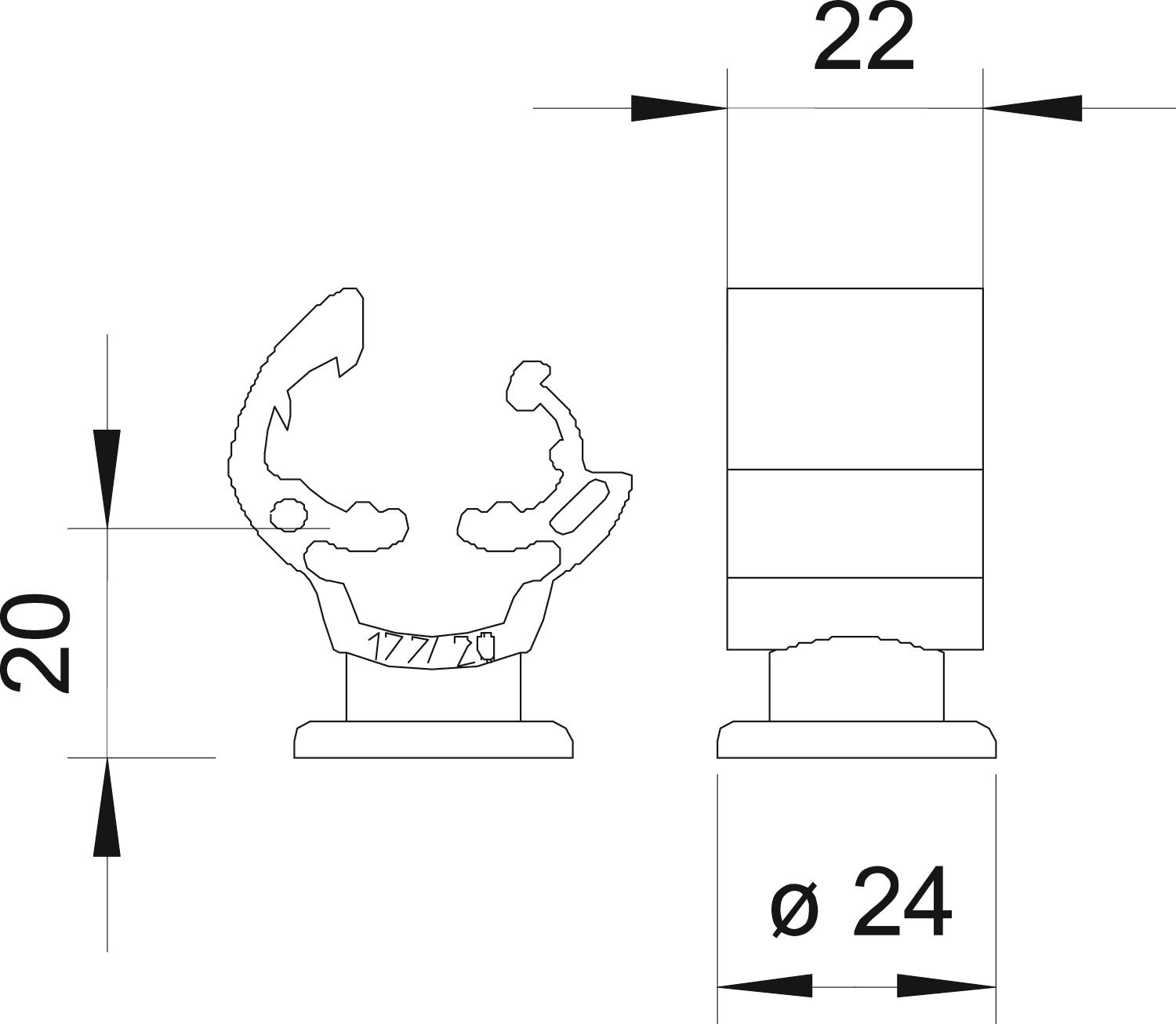

Cable dimensions 8−10 mm round Colour Grey Conductor fastening type With clamp clip Dimension 20mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material Polyamide Material of the base Polyamide Material of the crossbar Polyamide Material of the holder Polyamide Mounting height 20 mm Thread metric 8 - All types
- Downloads
-
Data sheet 177 B-HD20 / 5207851 , 0.19MB , pdf
