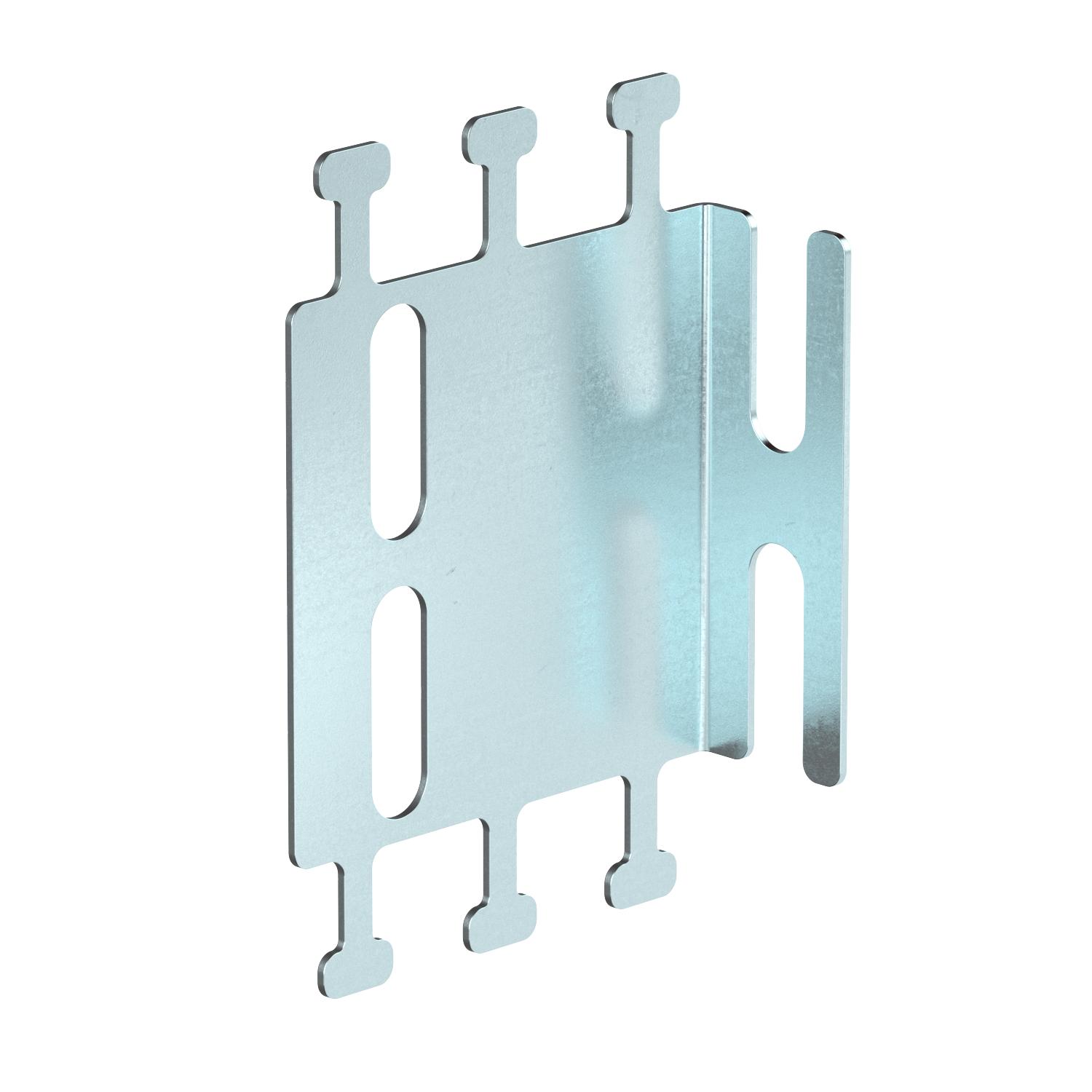

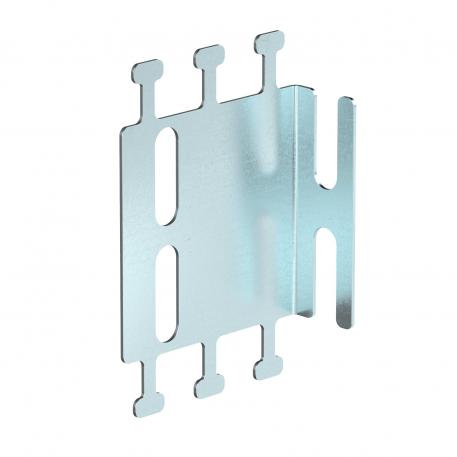

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm
Item no. 7215292 | EAN 4012196839629
- Product description
-
Product descriptionUniversal cable bracket for the vertical installation of cables in PYROLINE® Con fire protection ducts made of fibreglass-reinforced, lightweight concrete, as well as PYROLINE® Rapid made of sheet steel with an internal coating. The holders are plugged over the head of the loosened fastening screw and then screwed tight to it. The cables can be fastened using cable ties on the lugs or in the slots of the holder. This safely supports the cable weight. Plan at least two cable brackets per metre during installation.
- Technical data
-
Technical data

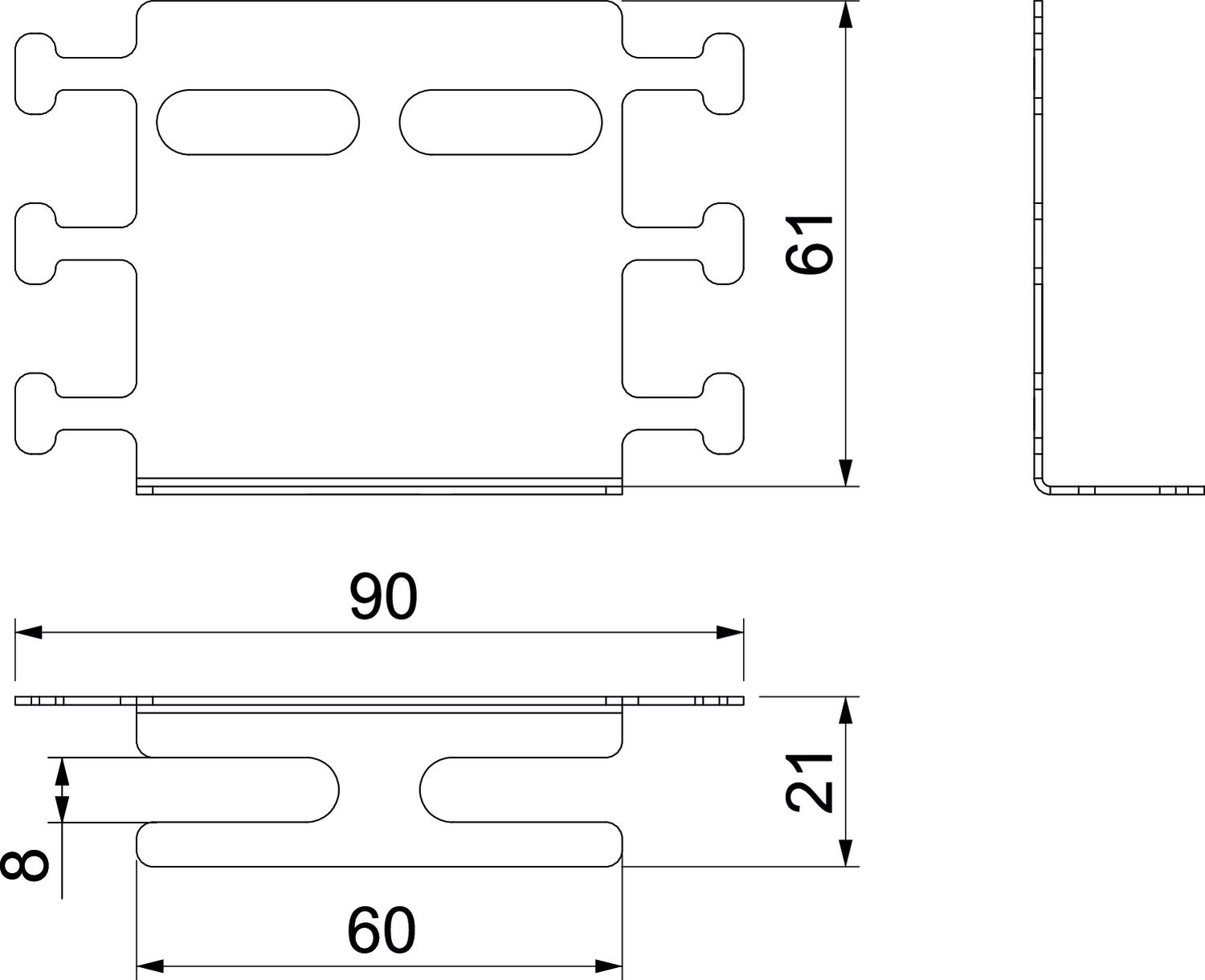

Colour zinc Dimension 60x20 Dimension B 21 mm Dimension b 8 mm Dimension H 61 mm Dimension l 60 mm Dimension L 90 mm Height 41 mm Length 60 mm Material Steel Surface Strip galvanized Type of accessory Miscellaneous Width 90 mm - All types
- Downloads
-
Data sheet LHS 60 / 7215292 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
