Cable gland, long PG thread, light grey
Item no. 2024330 | EAN 4012195839835
- Product description
-
Product descriptionCable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

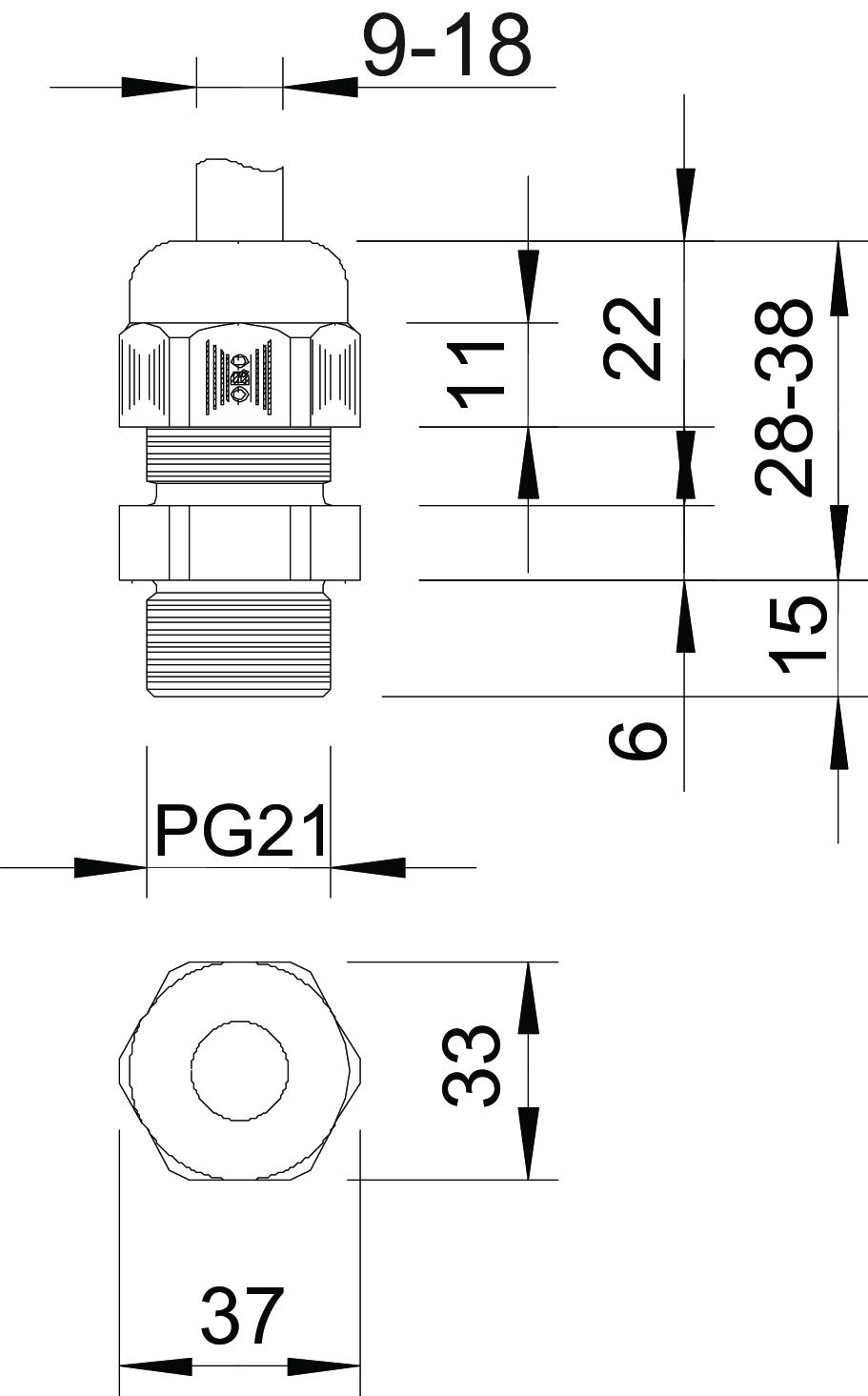

Bend protection no Colour Light grey; RAL 7035 Dimension PG21 Dimension E 37,5 mm Dimension L max. 38 mm Dimension L min. 28 mm Dimension L1 15 mm Dimension L2 6 mm Dimension L3 22 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 37,5 mm Impact-resistant no Material Polyamide Nominal thread size 21 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 18 mm Sealing area D, min. 9 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread Pg 21 Thread increase 1,5 mm Thread length 15 mm Thread type PG Type of seal Sealing ring Unstable torque 5 Nm Version for Straight WAF 33 With locknut no - All types
-
All types
- Downloads
-
Data sheet V-TEC L PG21 LGR / 2024330 , 0.29MB , pdfEU declaration of conformity V-TEC L PG21 LGR / 2024330 , 0.06MB , pdfREACH Declaration of conformity V-TEC L PG21 LGR / 2024330 , 0.12MB , pdfRoHS Declaration of conformity V-TEC L PG21 LGR / 2024330 , 0.12MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdf
