Cable gland, long PG thread, silver grey | | Pg 36 | no | Silver grey; RAL 7001

Cable gland, long PG thread, silver grey

Item no. 2024241 | EAN 4012195843313

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Silver grey; RAL 7001

Product description

Product description

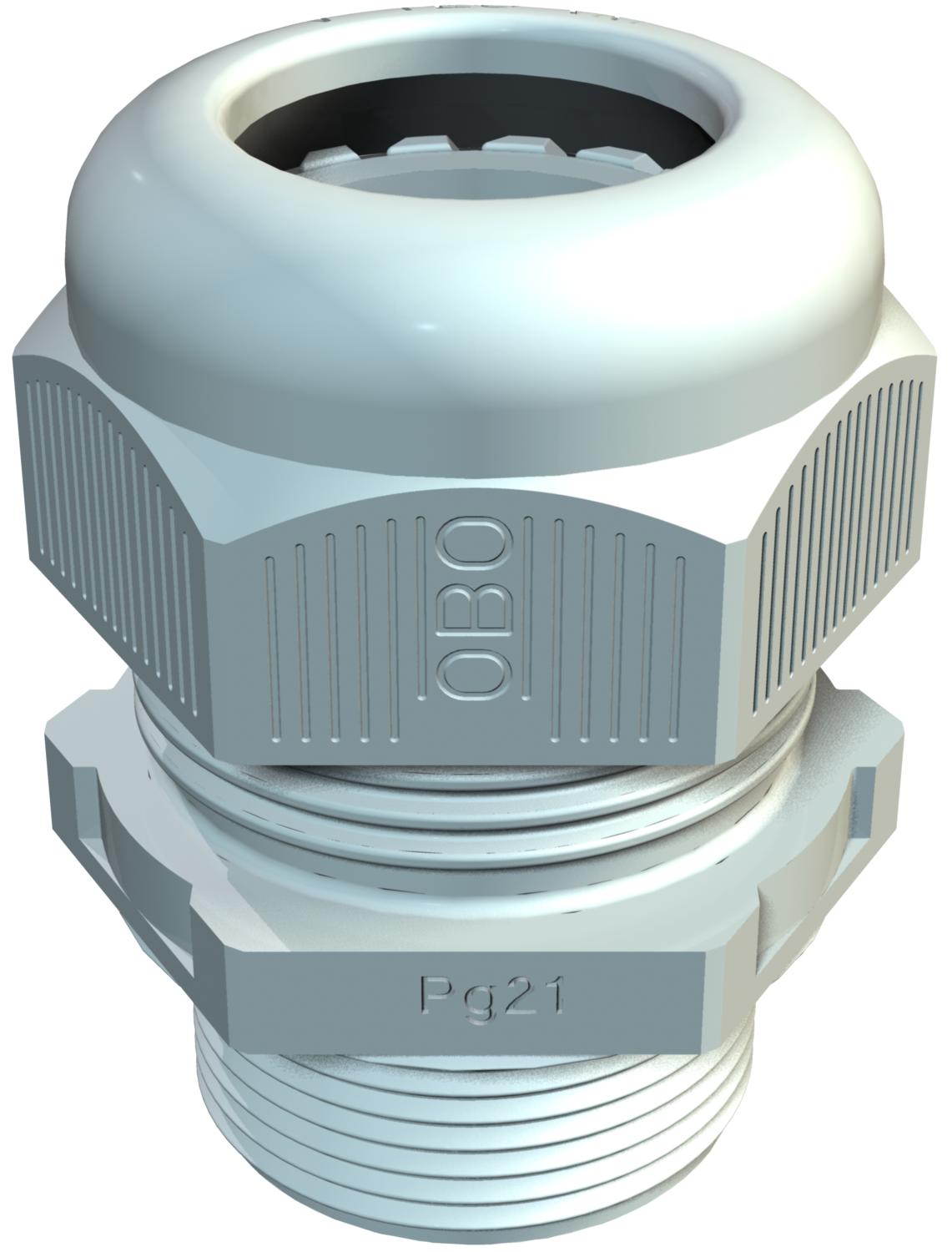

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Technical data

Technical data

Bend protection	no
Colour	Silver grey; RAL 7001

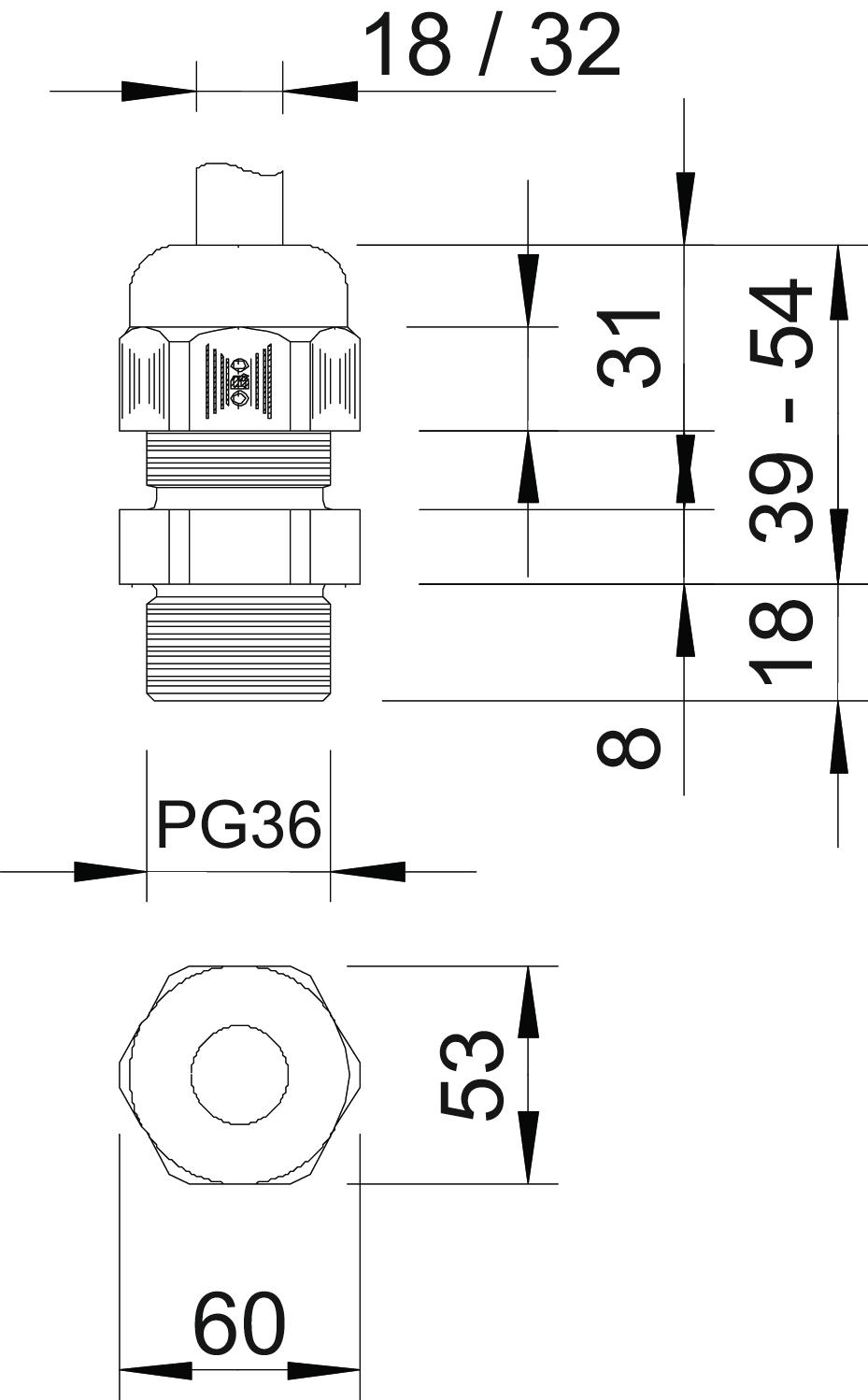

Dimension	PG36
Dimension E	60 mm
Dimension L max.	54 mm
Dimension L min.	39 mm
Dimension L1	18 mm
Dimension L2	8 mm
Dimension L3	31 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	60 mm
Impact-resistant	no
Material	Polyamide

Nominal thread size	36
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	32 mm
Sealing area D, min.	18 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	Pg 36
Thread increase	1,5 mm
Thread length	18 mm
Thread type	PG
Type of seal	Sealing ring
Unstable torque	5 Nm
Version for	Straight
WAF	53
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC L PG9 SGR	Pg 9	no	Silver grey; RAL 7001	2024187	piece	50 piece
V-TEC L PG11 SGR	Pg 11	no	Silver grey; RAL 7001	2024195	piece	50 piece
V-TEC L PG13 SGR	Pg 13,5	no	Silver grey; RAL 7001	2024209	piece	50 piece
V-TEC L PG16 SGR	Pg 16	no	Silver grey; RAL 7001	2024217	piece	25 piece
V-TEC L PG21 SGR	Pg 21	no	Silver grey; RAL 7001	2024225	piece	25 piece
V-TEC L PG29 SGR	Pg 29	no	Silver grey; RAL 7001	2024233	piece	20 piece
V-TEC L PG36 SGR	Pg 36	no	Silver grey; RAL 7001	2024241	piece	10 piece

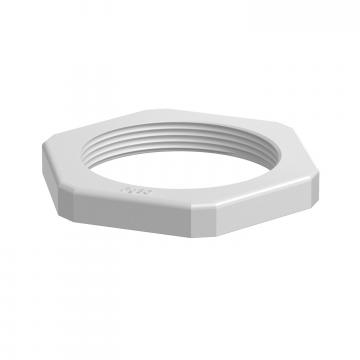

Accessories
