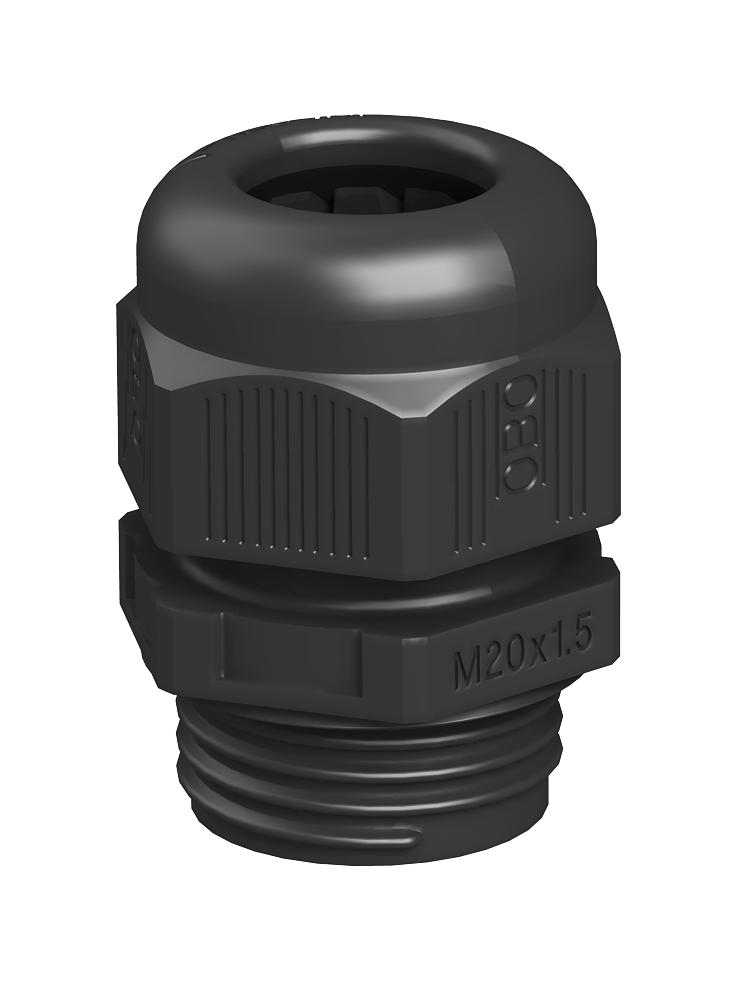

Cable gland, metric thread, black

Item no. 2022883 | EAN 4012195534013

no
Black
Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Det Norske Veritas
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Black

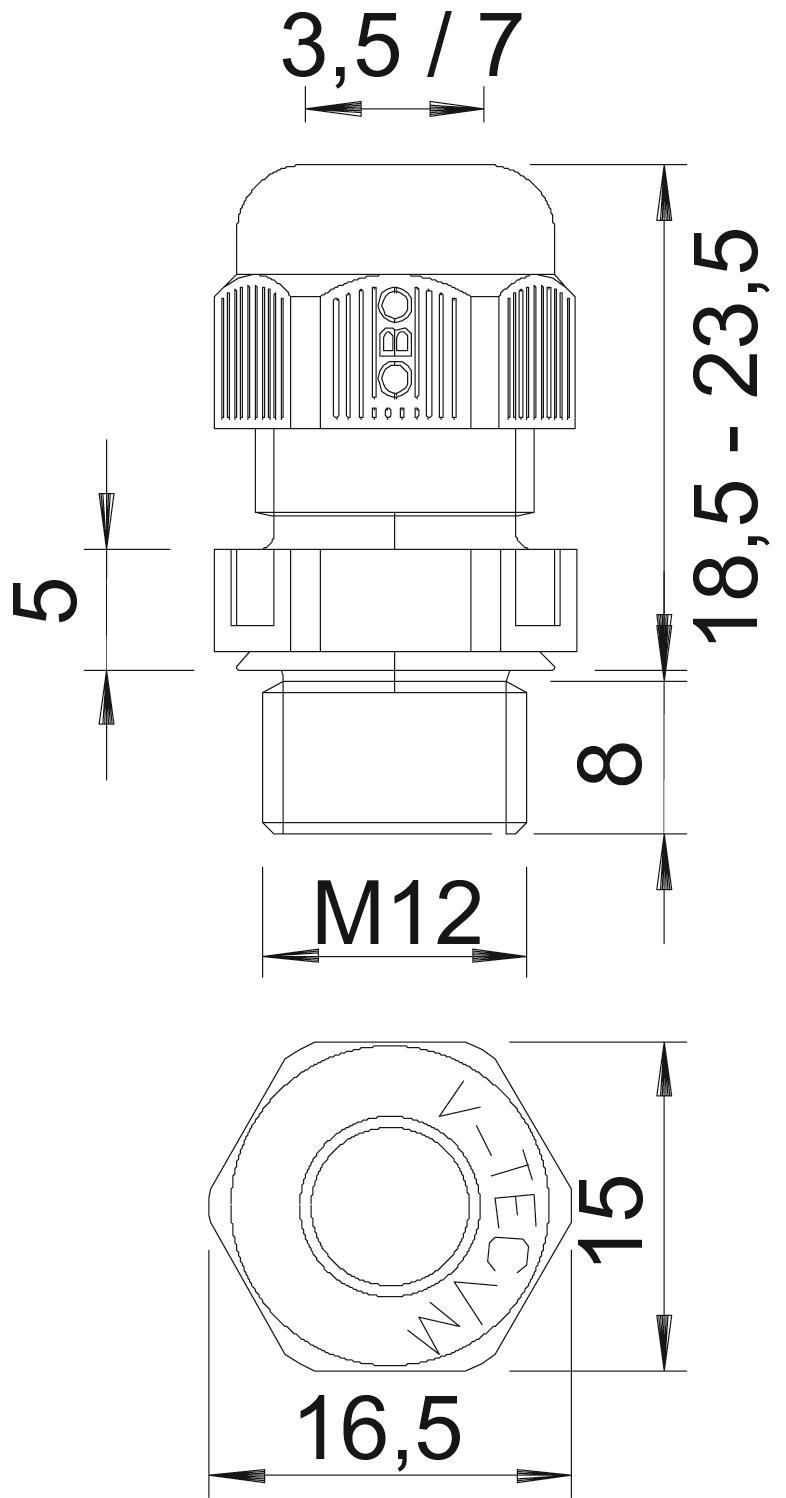

Dimension M12
Dimension E 16,5 mm
Dimension L max. 23,5 mm
Dimension L min. 18,5 mm
Dimension L1 8 mm
Dimension L2 5 mm
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Hexagonal corner dimension 16,5 mm
Impact-resistant no
Material Polyamide
Nominal thread size 12
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 7 mm
Sealing area D, min. 3,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread M12 x 1,5
Thread increase 1,5 mm
Thread length 8 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 2 Nm
Version for Straight
WAF 15
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC VM12 SW M12 x 1,5 no Black 2022883
50 piece
V-TEC VM16 SW M16 x 1,5 no Black 2022885
50 piece
V-TEC VM20 SW M20 x 1,5 no Black 2022887
50 piece
V-TEC VM25 SW M25 x 1,5 no Black 2022889
25 piece
V-TEC VM32 SW M32 x 1,5 no Black 2022891
20 piece
V-TEC VM40 SW M40 x 1,5 no Black 2022893
10 piece
V-TEC VM50 SW M50 x 1,5 no Black 2022895
5 piece
V-TEC VM63 SW M63 x 1,5 no Black 2022897
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, metric thread, black Locknut, metric thread, black 116 M12 SW PA 2049066
100 piece
