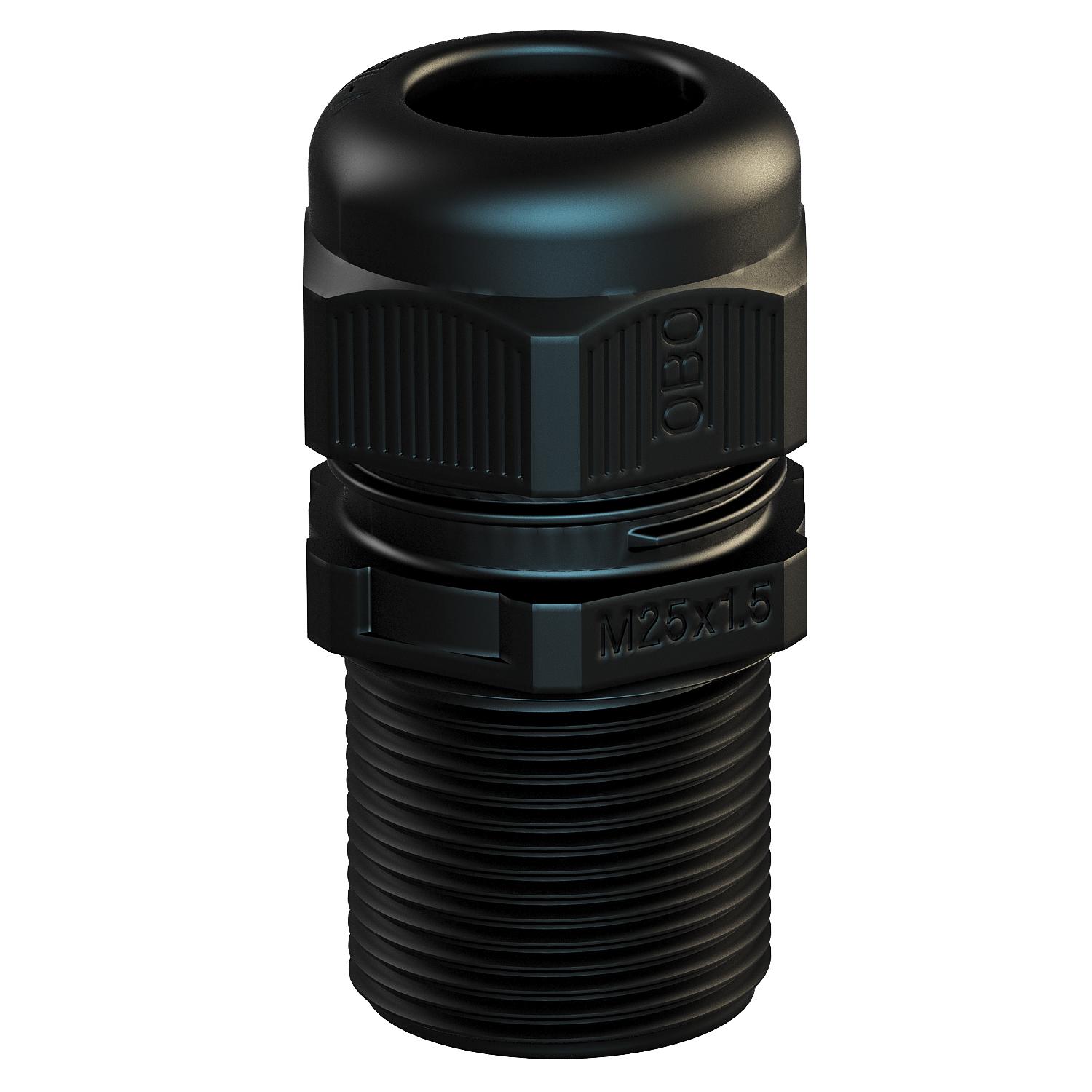

Cable gland, metric thread, extra long, black

Item no. 2022985 | EAN 4012195812166

no
Black
Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Black

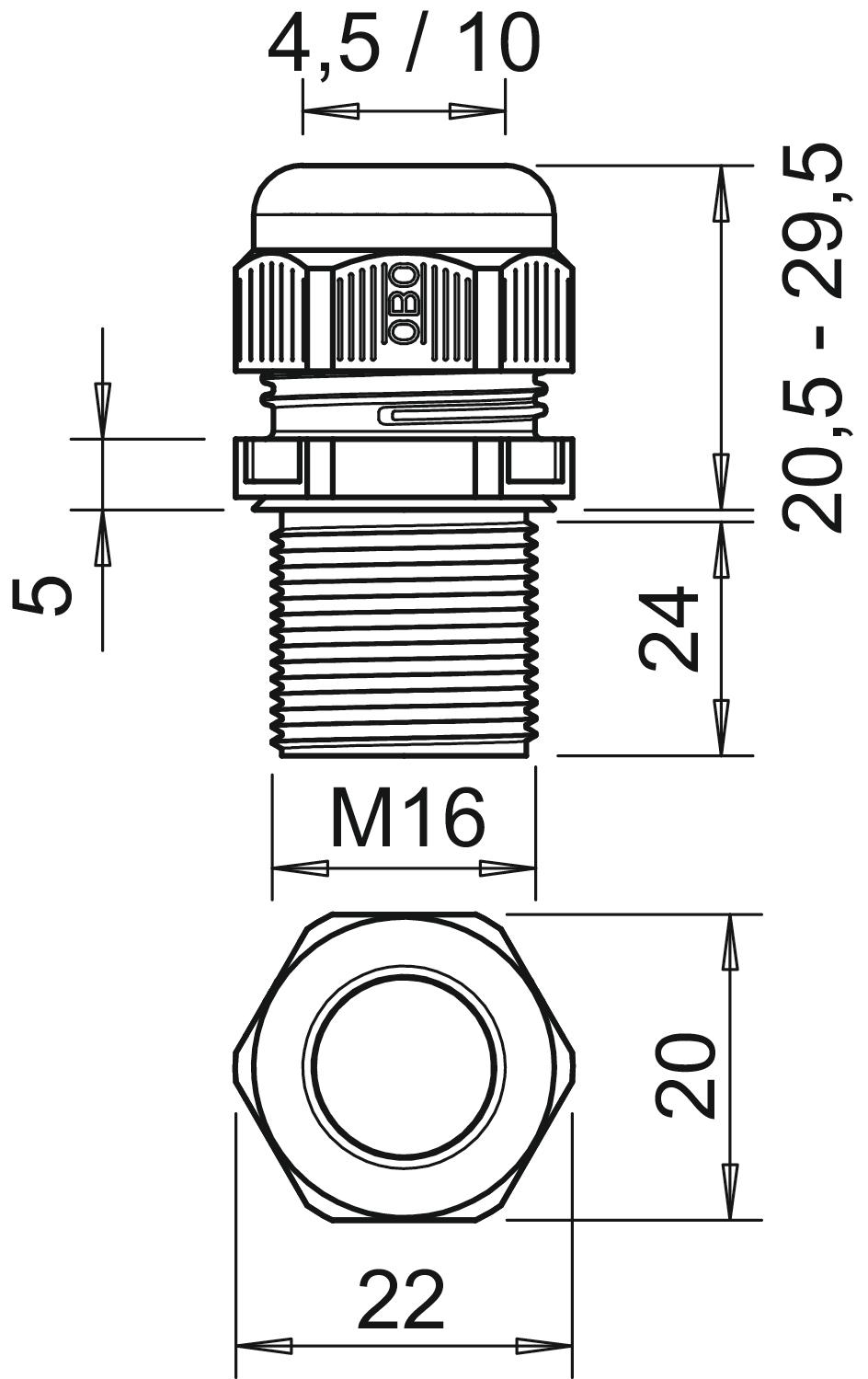

Dimension M16
Dimension E 22 mm
Dimension L max. 29,5 mm
Dimension L min. 20,5 mm
Dimension L1 24 mm
Dimension L2 5 mm
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Hexagonal corner dimension 22 mm
Impact-resistant no
Material Polyamide
Nominal thread size 16
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 10 mm
Sealing area D, min. 4,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread M16 x 1,5
Thread increase 1,8 mm
Thread length 24 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 2,5 Nm
Version for Straight
WAF 20
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC VM LL16 SW M16 x 1,5 no Black 2022985
50 piece
V-TEC VM LL20 SW M20 x 1,5 no Black 2022987
50 piece
V-TEC VM LL25 SW M25 x 1,5 no Black 2022989
25 piece
V-TEC VM LL32 SW M32 x 1,5 no Black 2022991
20 piece
V-TEC VM LL40 SW M40 x 1,5 no Black 2022993
10 piece
V-TEC VM LL50 SW M50 x 1,5 no Black 2022995
5 piece
V-TEC VM LL63 SW M63 x 1,5 no Black 2022997
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

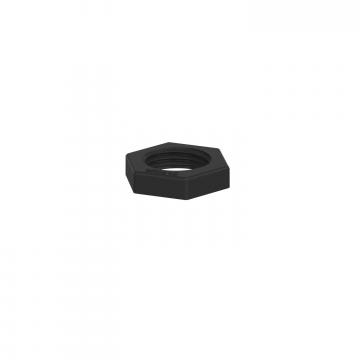

Locknut, metric thread, black Locknut, metric thread, black 116 M16 SW PA 2049074
100 piece
