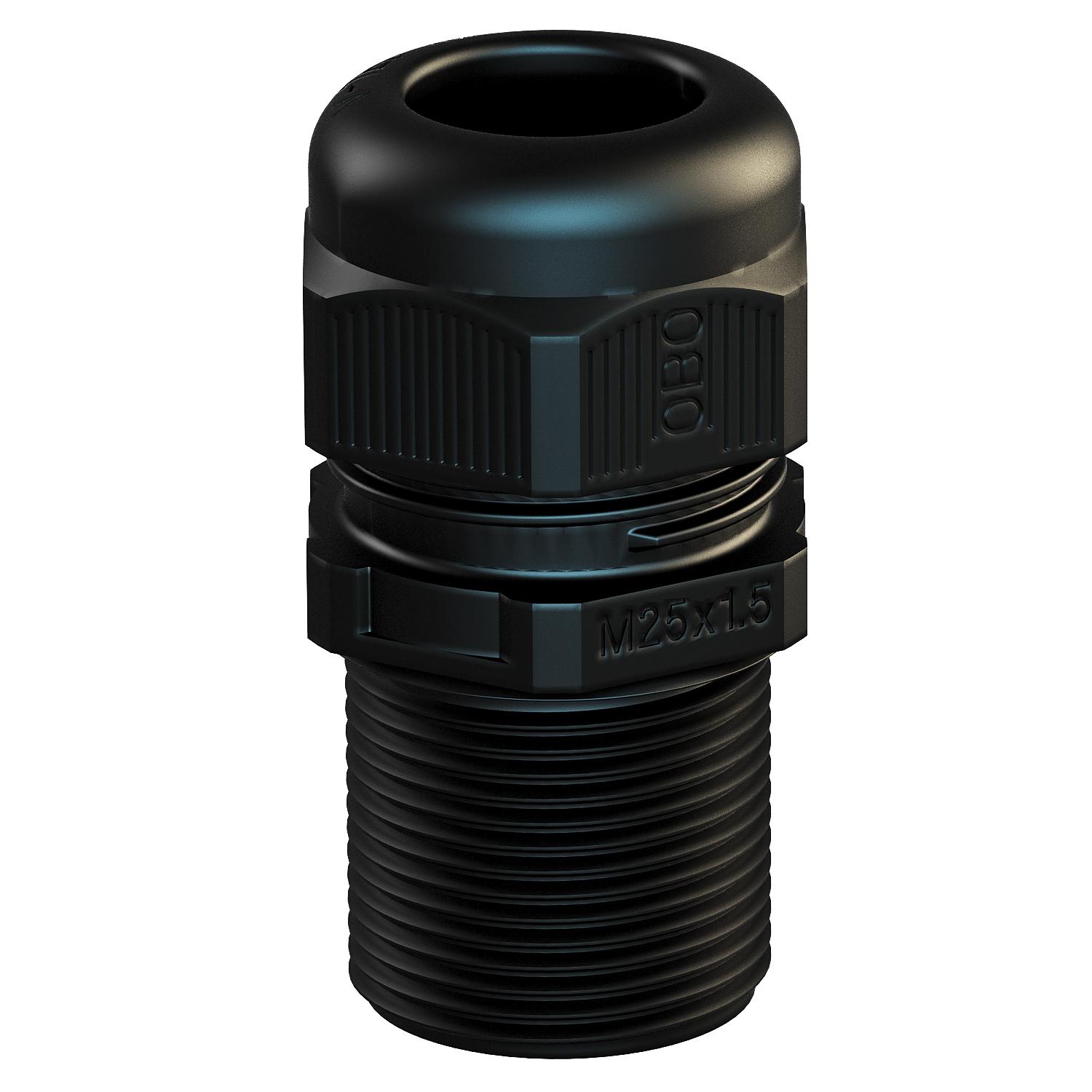

Cable gland, metric thread, extra long, black | | M63 x 1,5 | no | Black

Cable gland, metric thread, extra long, black

Item no. 2022997 | EAN 4012195812227

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Black

Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Technical data

Technical data

Bend protection	no
Colour	Black

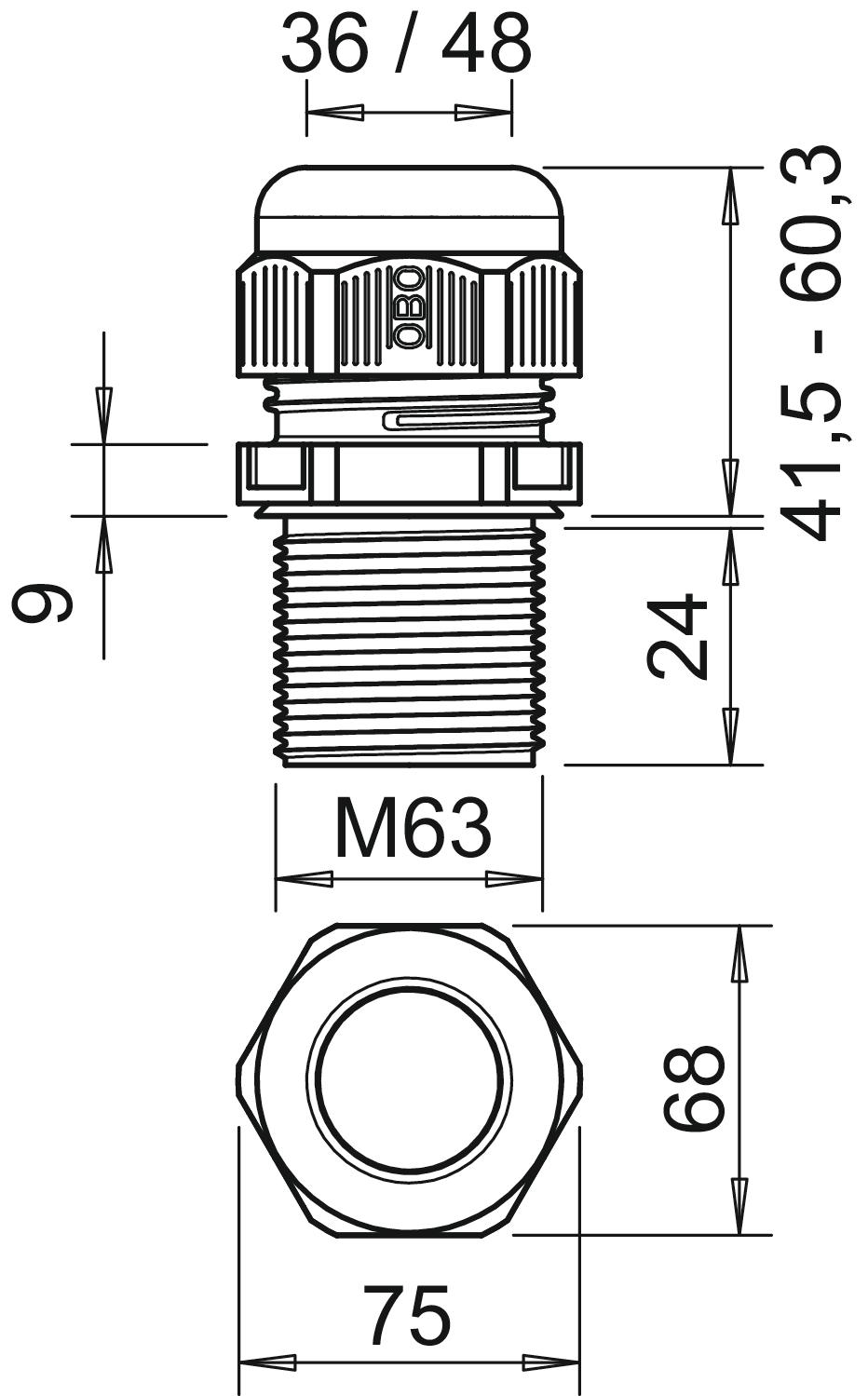

Dimension	M63
Dimension E	75 mm
Dimension L max.	60,3 mm
Dimension L min.	41,5 mm
Dimension L1	24 mm
Dimension L2	9 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	75 mm
Impact-resistant	no
Material	Polyamide

Nominal thread size	63
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	48 mm
Sealing area D, min.	36 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M63 x 1,5
Thread increase	1,8 mm
Thread length	24 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	12 Nm
Version for	Straight
WAF	68
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC VM LL16 SW	M16 x 1,5	no	Black	2022985	piece	50 piece
V-TEC VM LL20 SW	M20 x 1,5	no	Black	2022987	piece	50 piece
V-TEC VM LL25 SW	M25 x 1,5	no	Black	2022989	piece	25 piece
V-TEC VM LL32 SW	M32 x 1,5	no	Black	2022991	piece	20 piece
V-TEC VM LL40 SW	M40 x 1,5	no	Black	2022993	piece	10 piece
V-TEC VM LL50 SW	M50 x 1,5	no	Black	2022995	piece	5 piece
V-TEC VM LL63 SW	M63 x 1,5	no	Black	2022997	piece	5 piece

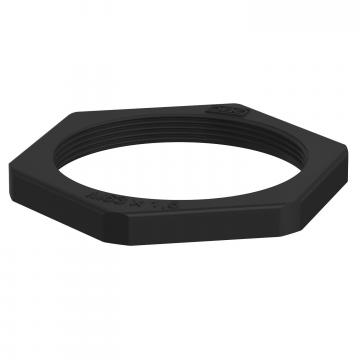

Accessories
