Cable gland, metric thread, UV-resistant, light grey

Item no. 2022907 | EAN 4012195896784

no
Light grey
Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey

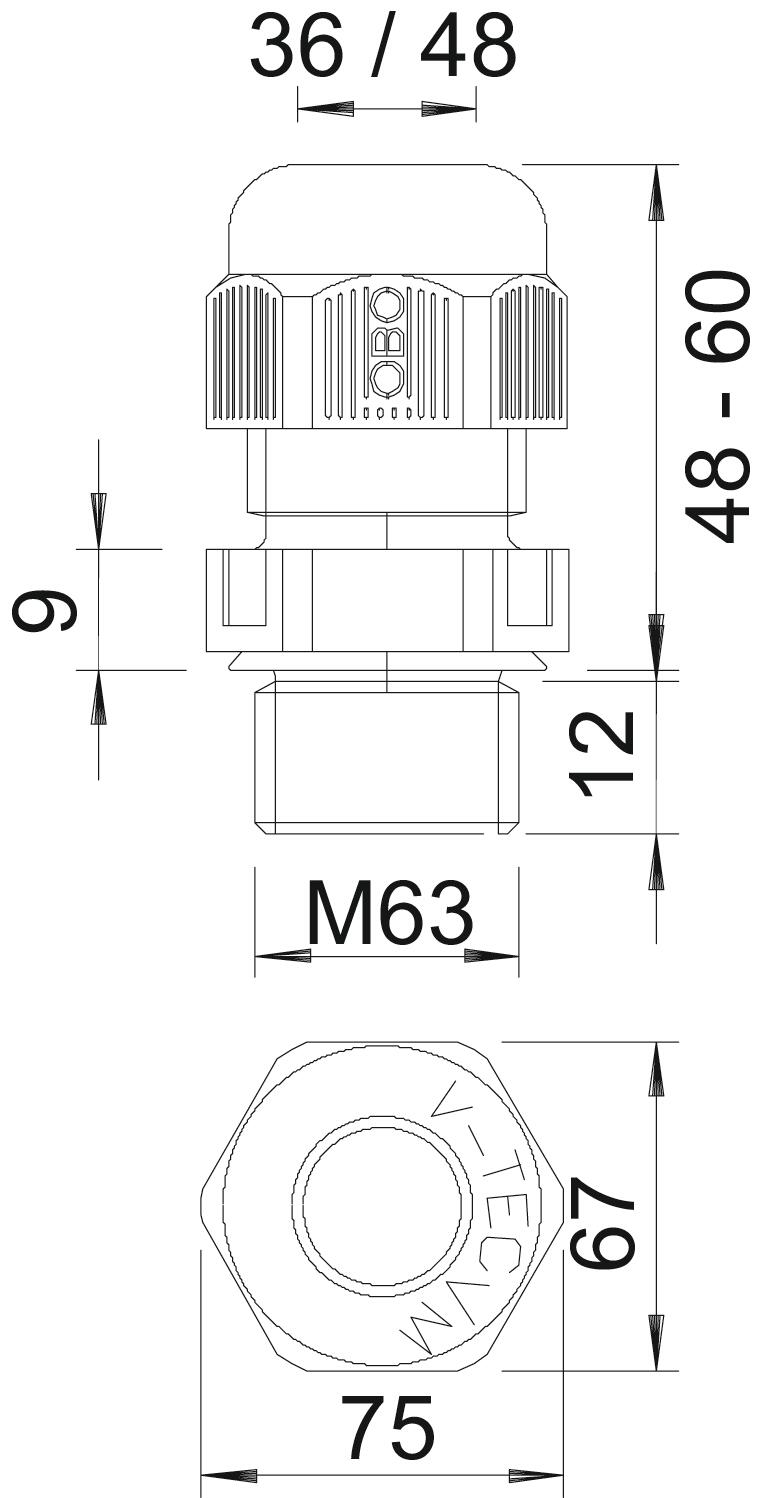

Dimension M63
Dimension E 75 mm
Dimension L max. 60 mm
Dimension L min. 48 mm
Dimension L1 12 mm
Dimension L2 9 mm
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Hexagonal corner dimension 75 mm
Impact-resistant no
Material Polyamide
Nominal thread size 63
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 48 mm
Sealing area D, min. 36 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread M63 x 1,5
Thread length 12 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 15 Nm
Version for Straight
WAF 67
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC VM12UV LGR M12 x 1,5 no Light grey 2022900
50 piece
V-TEC VM16UV LGR M16 x 1,5 no Light grey 2022901
50 piece
V-TEC VM20UV LGR M20 x 1,5 no Light grey 2022902
50 piece
V-TEC VM25UV LGR M25 x 1,5 no Light grey 2022903
25 piece
V-TEC VM32UV LGR M32 x 1,5 no Light grey 2022904
20 piece
V-TEC VM40UV LGR M40 x 1,5 no Light grey 2022905
10 piece
V-TEC VM50UV LGR M50 x 1,5 no Light grey 2022906
5 piece
V-TEC VM63UV LGR M63 x 1,5 no Light grey 2022907
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

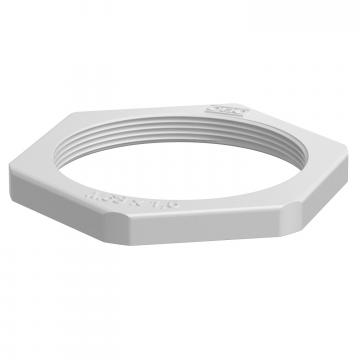

Locknut, metric thread, light grey Locknut, metric thread, light grey 116 M63 LGR PA 2048973
25 piece
