Cable gland, PG thread, light grey

Item no. 2024705 | EAN 4012195446774

no
Light grey; RAL 7035
Product description

Product description

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Det Norske Veritas
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035

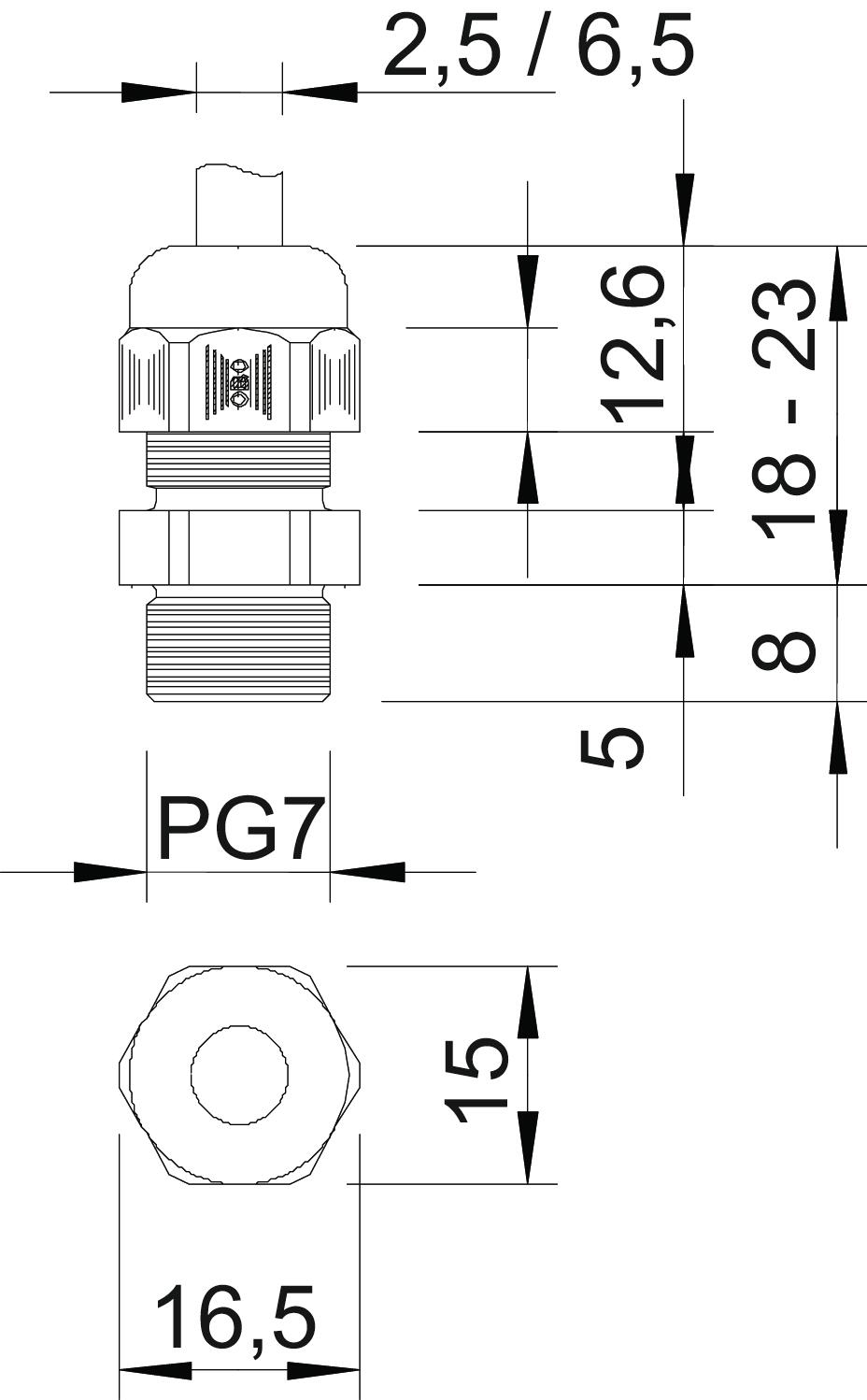

Dimension PG7
Dimension E 16,5 mm
Dimension L max. 23 mm
Dimension L min. 18 mm
Dimension L1 8 mm
Dimension L2 5 mm
Dimension L3 12,6 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Hexagonal corner dimension 16,5 mm
Impact-resistant no
Material Polyamide
Nominal thread size 7
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 6,5 mm
Sealing area D, min. 2,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread Pg 7
Thread increase 1,41 mm
Thread length 8 mm
Thread type PG
Type of seal Sealing ring
Unstable torque 1,67 Nm
Version for Straight
WAF 15
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC PG7 LGR Pg 7 no Light grey; RAL 7035 2024705
50 piece
V-TEC PG9 LGR Pg 9 no Light grey; RAL 7035 2024713
50 piece
V-TEC PG11 LGR Pg 11 no Light grey; RAL 7035 2024721
50 piece
V-TEC PG13 LGR Pg 13,5 no Light grey; RAL 7035 2024748
50 piece
V-TEC PG16 LGR Pg 16 no Light grey; RAL 7035 2024756
25 piece
V-TEC PG21 LGR Pg 21 no Light grey; RAL 7035 2024764
25 piece
V-TEC PG29 LGR Pg 29 no Light grey; RAL 7035 2024772
20 piece
V-TEC PG36 LGR Pg 36 no Light grey; RAL 7035 2024780
10 piece
V-TEC PG42 LGR Pg 42 no Light grey; RAL 7035 2024799
5 piece
V-TEC PG48 LGR Pg 48 no Light grey; RAL 7035 2024802
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

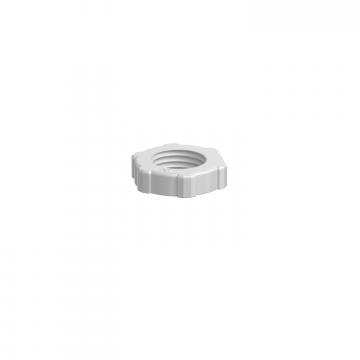

Locknut, PG thread Locknut, PG thread 116 PG 7 2043076
100 piece
