Cable gland with locknut as a set
Item no. 7205669 | EAN 4012196028290
- Product description
-
Product description
Robust cap nut cable gland with metric connecting thread to IEC 423, including pre-mounted locknut.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
- Technical data
-
Technical data

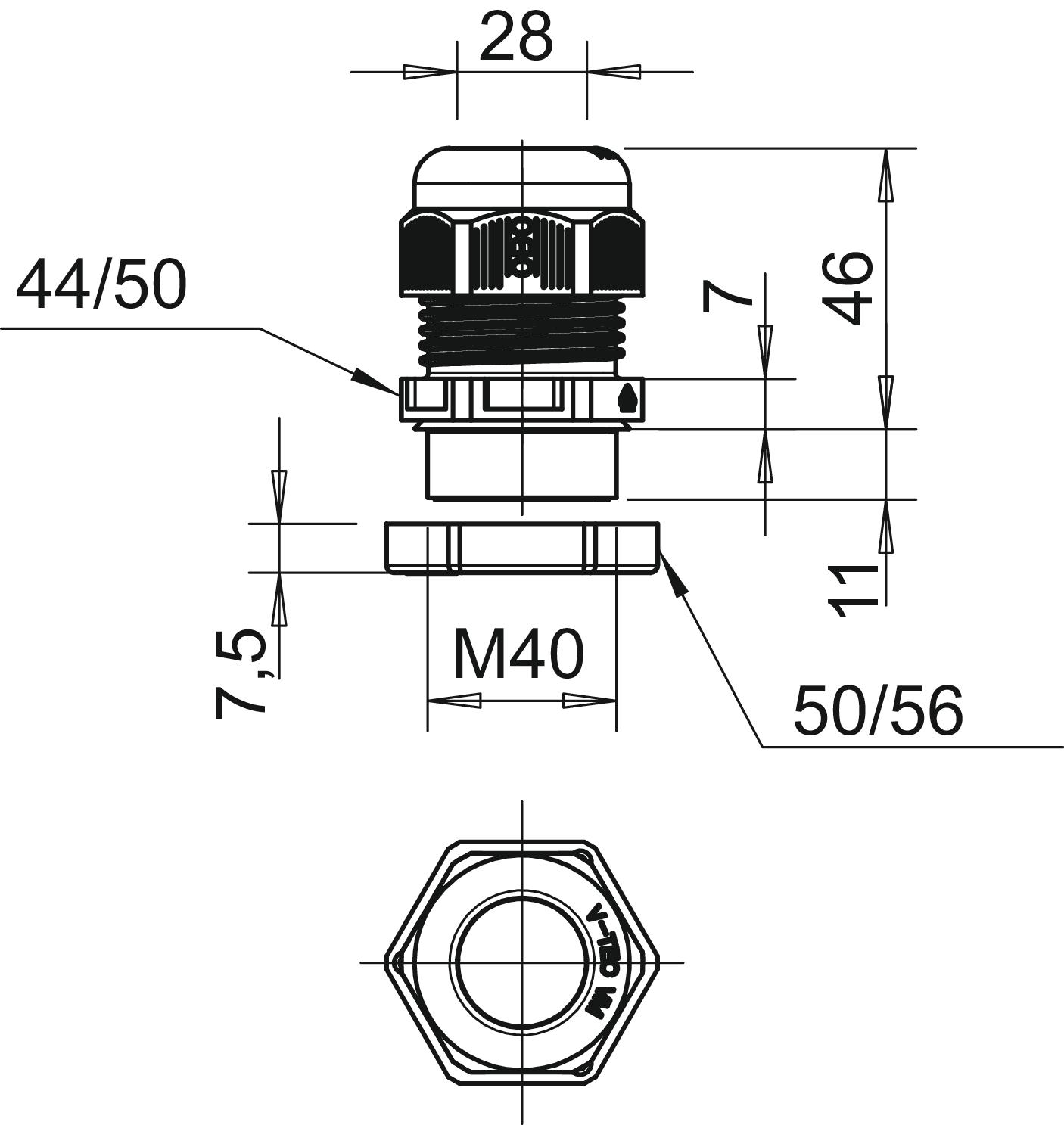

Bend protection no Colour Pastel orange; RAL 2003 Dimension M40 Dimension E 50 mm Dimension E1 (mm) 50 mm Dimension E2 56 mm Dimension G M40 x 1,5 mm Dimension L max. 46 mm Dimension L min. 36 mm Dimension L1 11 mm Dimension L2 7 mm Dimension L3 7,5 mm Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polyamide Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 28 mm Sealing area D, min. 16 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M40 x 1,5 Thread increase 1,5 mm Thread length 11 mm Thread type Metric Unstable torque 10 Nm WAF 44 WAF 1 44 mm WAF 2 50 mm With locknut yes - All types
-
All types
