Cable ladder LG 60, 6 m VS A4 6000 | 500 | 1.5 | no | Stainless steel | Bright, treated

Cable ladder LG 60, 6 m VS A4

Item no. 6101223 | EAN 4012195022121

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Stainless steel

Surface	Bright, treated

Product description

Product description

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	stainless steel
CO₂ Footprint (GWP) Cradle-to-Gate	17,803 kg CO₂e / 1 Meter
Dimension	60x500x6000
Dimension	60x500x6000
Dimension B	500 mm
Fastening of rung	Blind riveted
Height	60 mm
Length	6000 ft
Length	6000 mm
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	1,1 kN/m
Support spacing 3.5 m	0,75 kN/m
Support spacing 4.0 m	0,45 kN/m
Surface	Bright, treated
Usable cross-section	24800 mm²
Usable cross-section	248 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	500 mm

Technical data

Load diagram, cable ladder, type LG 60 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VS6 A4	6000 mm	200 mm	1.5 mm	no	Stainless steel	Bright, treated	6101200	m	6 m
LG 630 VS6 A4	6000 mm	300 mm	1.5 mm	no	Stainless steel	Bright, treated	6101208	m	6 m
LG 640 VS6 A4	6000 mm	400 mm	1.5 mm	no	Stainless steel	Bright, treated	6101216	m	6 m
LG 650 VS6 A4	6000 mm	500 mm	1.5 mm	no	Stainless steel	Bright, treated	6101223	m	6 m
LG 660 VS6 A4	6000 mm	600 mm	1.5 mm	no	Stainless steel	Bright, treated	6101232	m	6 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

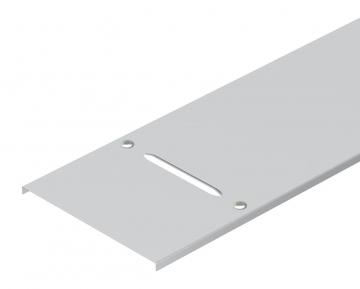

Cover with turn buckle A4	DRL 500 A4	6052985	m	3 m
Separating retainer 45 A4	TSG 45 A4	6062028	m	3 m
Clamping piece for separating retainer fastening A2	KS KL A2	6062284	piece	30 piece
Straight connector A4	LVG 60 A4	6208835	piece	10 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
