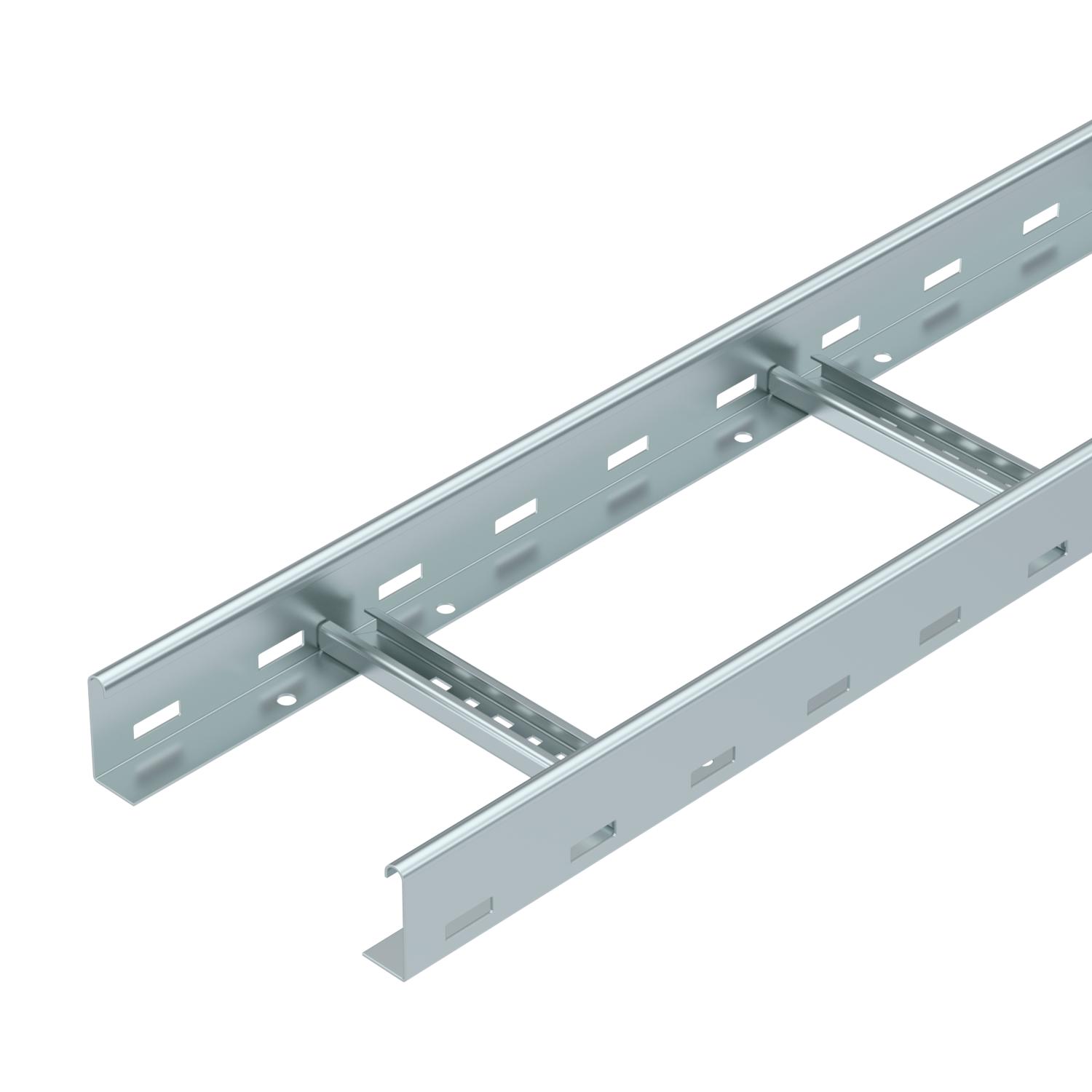

Cable ladder LG 60, 6 m VS FS 6000 | 200 | 1.5 | yes | Steel | Strip galvanized

Cable ladder LG 60, 6 m VS FS

Item no. 6208627 | EAN 4012195064251

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Strip galvanized

Product description

Product description

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	6,579 kg CO₂e / 1 Meter
Dimension	60x200x6000
Dimension	60x200x6000
Dimension B	200 mm
Fastening of rung	Blind riveted
Fire protection	Maintenance of electrical function of standard support structure
Height	60 mm
Length	6000 mm
Length	6000 ft
Maintain electrical functions	yes
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50

Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile
Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	1,1 kN/m
Support spacing 3.5 m	0,75 kN/m
Support spacing 4.0 m	0,45 kN/m
Surface	Strip galvanized
Usable cross-section	9800 mm²
Usable cross-section	98 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	200 mm

Technical data

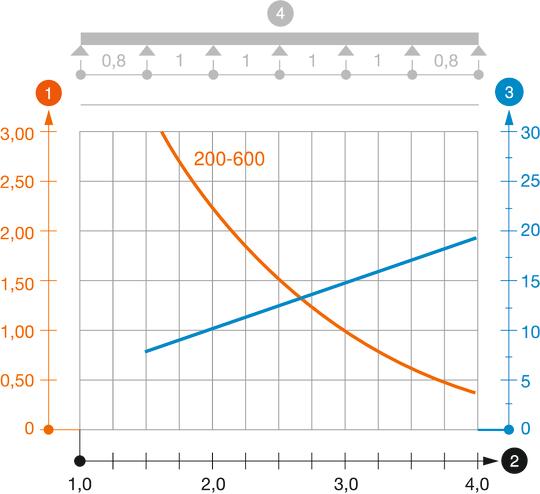

Load diagram, cable ladder, type LG 60 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VS 6 FS	6000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6208627	m	6 m
LG 630 VS 6 FS	6000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6208630	m	6 m
LG 640 VS 6 FS	6000 mm	400 mm	1.5 mm	yes	Steel	Strip galvanized	6208633	m	6 m
LG 650 VS 6 FS	6000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6208636	m	6 m
LG 660 VS 6 FS	6000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6208639	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FS	DRL 200 FS	6052207	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Clamping piece for separating retainer fastening A2	KS KL A2	6062284	piece	30 piece
Straight connector FS	LVG 60 FS	6208840	piece	10 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair

Downloads
