Cable tie, white

Item no. 2331842 | EAN 4012196417100

White
Product description

Product description

Cable ties are used for quick, uncomplicated fixing or bundling of cables and pipes to cable support systems or other mounting structures.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour White

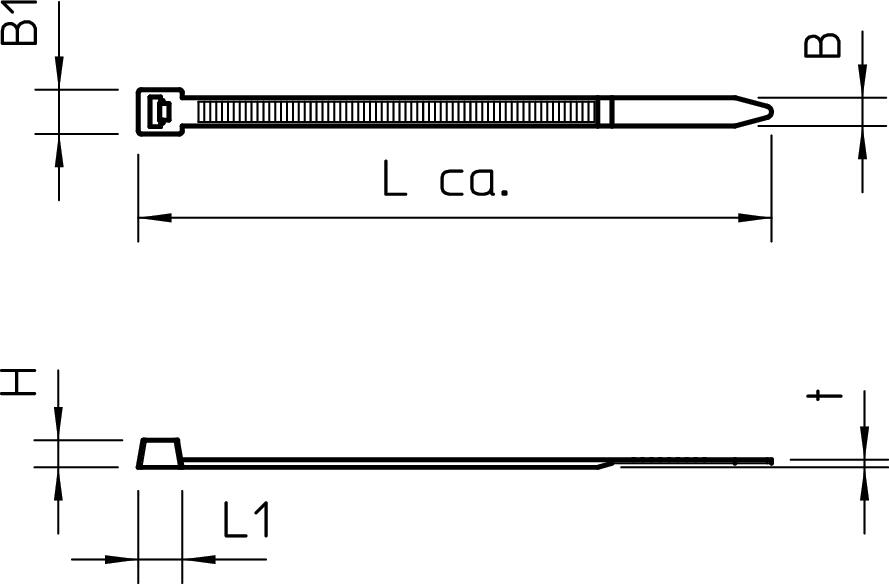

Dimension 3,6x290mm
Dimension B 3,6 mm
Dimension L 290 mm
Dimension t 1,4 mm
Fastening type Without
Halogen-free yes
Height 1,4 mm
Labelling area Without
Length 290 mm
Material Polyamide
Max. Bundle diameter 82 mm
MIL approval no
Mounting temperature, max. 90 °C
Mounting temperature_min. -30 °C
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -30 °C
Reflective no
Releasable lock no
Strip closure Plastic tongue/tab
Tensile strength 180 N
Transparent no
UL approval yes
UV-resistant no
Version for Externally toothed
VG approval no
Width 3,6 mm
All types

All types

Types Length Max. Bundle diameter Colour Item no. Quantity SSU
565 2.5x75 WS 75 mm 15 mm White 2331800
100 piece
565 2.5x100 WS 100 mm 22 mm White 2331810
100 piece
565 2.5x150 WS 150 mm 39 mm White 2331816
100 piece
565 2.5x200 WS 200 mm 55 mm White 2331822
100 piece
565 3.6x150 WS 150 mm 36 mm White 2331830
100 piece
565 3.6x200 WS 200 mm 52 mm White 2331836
100 piece
565 3.6x290 WS 290 mm 82 mm White 2331842
100 piece
565 3.6x365 WS 365 mm 105 mm White 2331848
100 piece
565 4.8x120 WS 120 mm 27 mm White 2331860
100 piece
565 4.8x160 WS 160 mm 39 mm White 2331866
100 piece
565 4.8x200 WS 200 mm 52 mm White 2331872
100 piece
565 4.8x300 WS 300 mm 83 mm White 2331878
100 piece
565 4.8x365 WS 365 mm 105 mm White 2331884
100 piece
565 4.8x430 WS 430 mm 125 mm White 2331890
100 piece
565 7.6x200 WS 200 mm 52 mm White 2331910
100 piece
565 7.6x300 WS 300 mm 80 mm White 2331916
100 piece
565 7.6x380 WS 380 mm 105 mm White 2331922
100 piece
565 7.6x450 WS 450 mm 128 mm White 2331934
100 piece
565 9x760 WS 760 mm 227 mm White 2331944
100 piece
