Cap nut cable gland, EMC, metric thread, nickel-plated | | M32 x 1,5 | no |

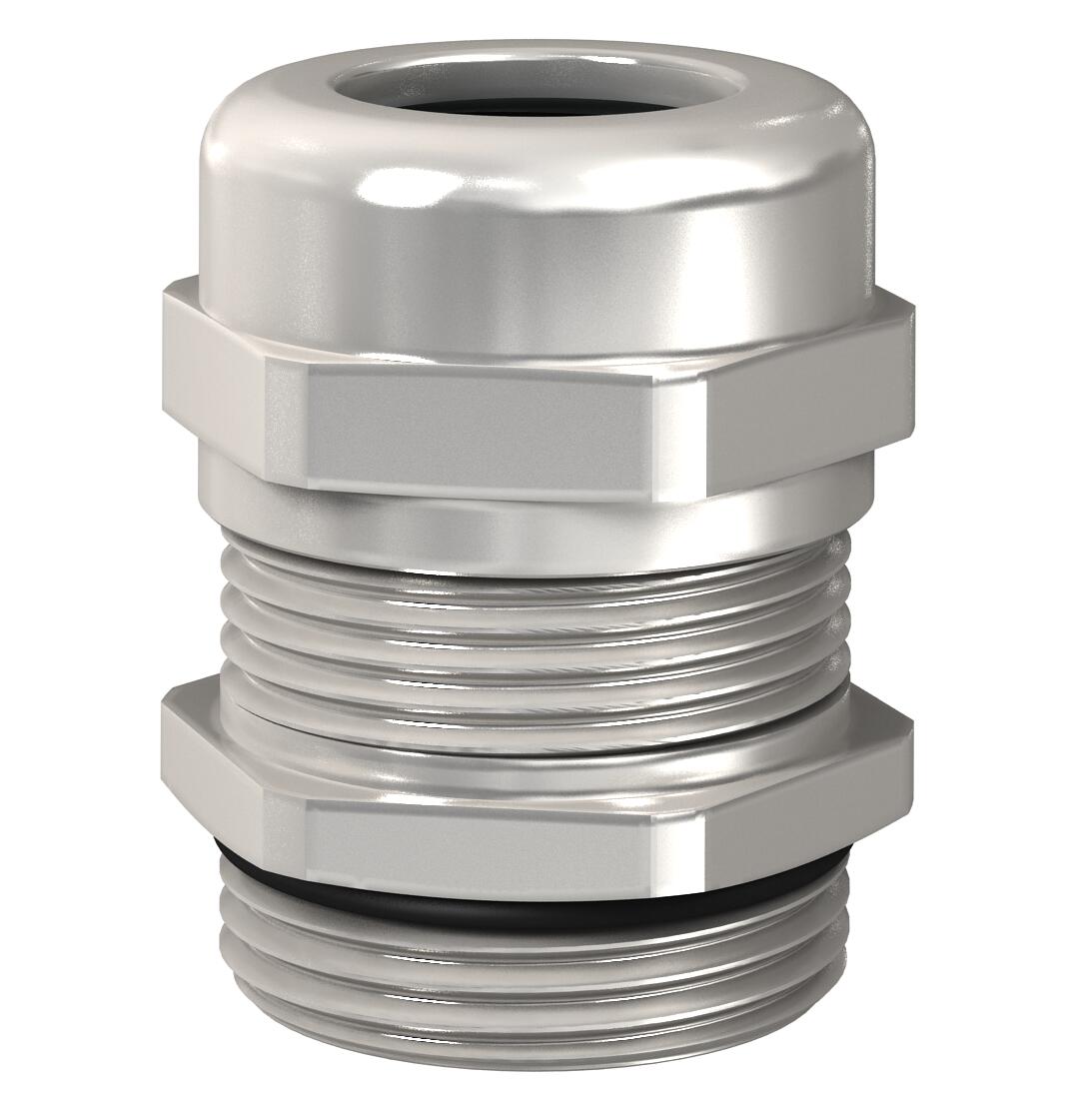

Cap nut cable gland, EMC, metric thread, nickel-plated

Item no. 2086219 | EAN 4012195655602

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP 68 at 5 bar for 1 hr.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no

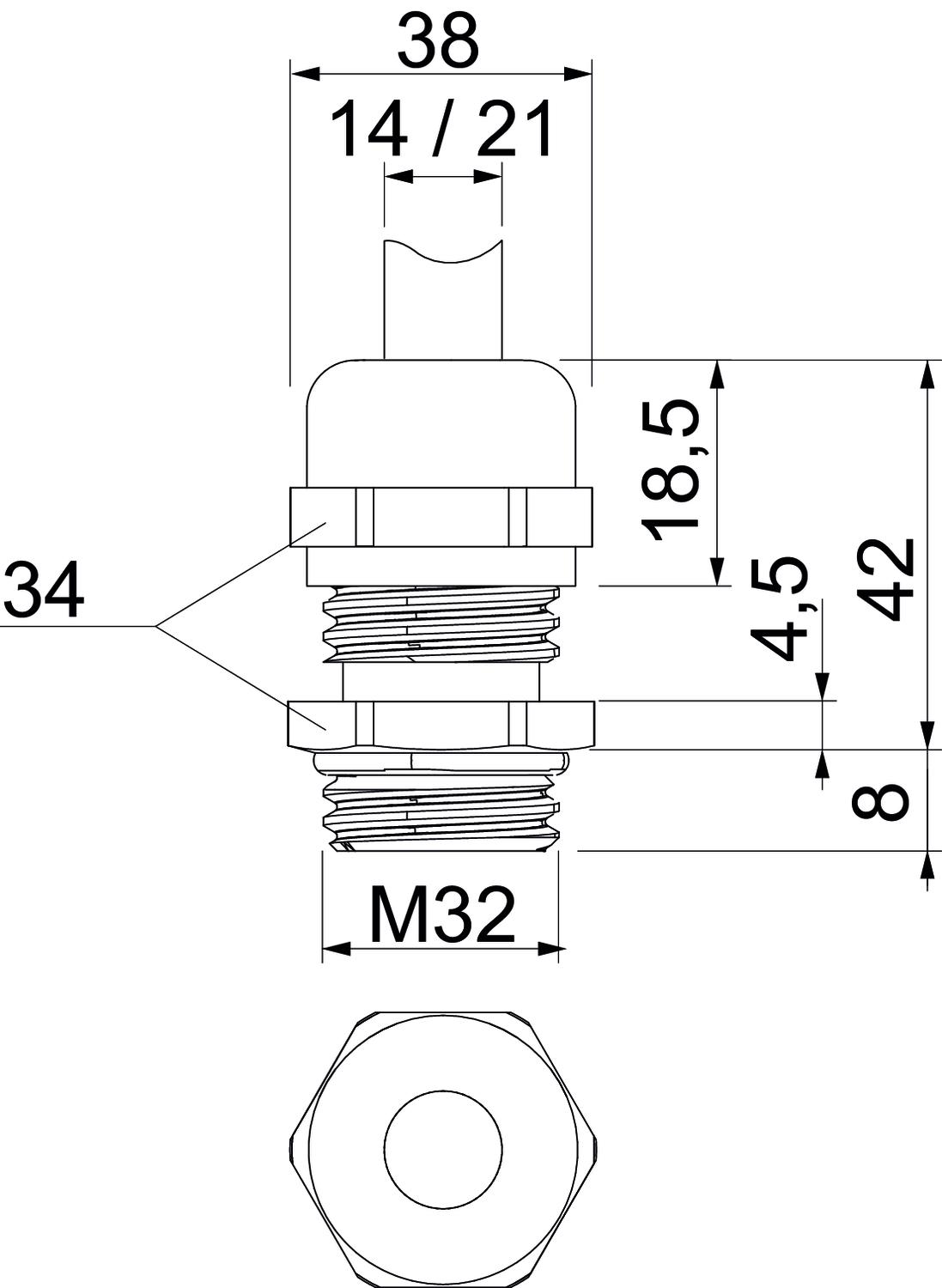

Dimension	M32
Dimension E	38 mm
Dimension L max.	42 mm
Dimension L1	8 mm
Dimension L2	4,5 mm
Dimension L3	18,5 mm
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Impact-resistant	no
Material	Brass
Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C

Protection rating	IP68
Sealing area D, max.	21 mm
Sealing area D, min.	14 mm
Sealing insert, multiple	no
Strain relief option	yes
Surface	Nickel-plated
Thread	M32 x 1,5
Thread length	8 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	12 Nm
Version for	Straight
WAF	34
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC VM12 EMV	M12 x 1,5	no	2086203	piece	50 piece
V-TEC VM16 EMV	M16 x 1,5	no	2086207	piece	50 piece
V-TEC VM20 EMV	M20 x 1,5	no	2086211	piece	25 piece
V-TEC VM25 EMV	M25 x 1,5	no	2086215	piece	25 piece
V-TEC VM32 EMV	M32 x 1,5	no	2086219	piece	20 piece
V-TEC VM40 EMV	M40 x 1,5	no	2086223	piece	5 piece
V-TEC VM50 EMV	M50 x 1,5	no	2086227	piece	5 piece
V-TEC VM63 EMV	M63 x 1,5	no	2086231	piece	5 piece
