Cap nut cable gland, metric thread, silver grey, nickel-plated | | M20 x 1,5 | no |

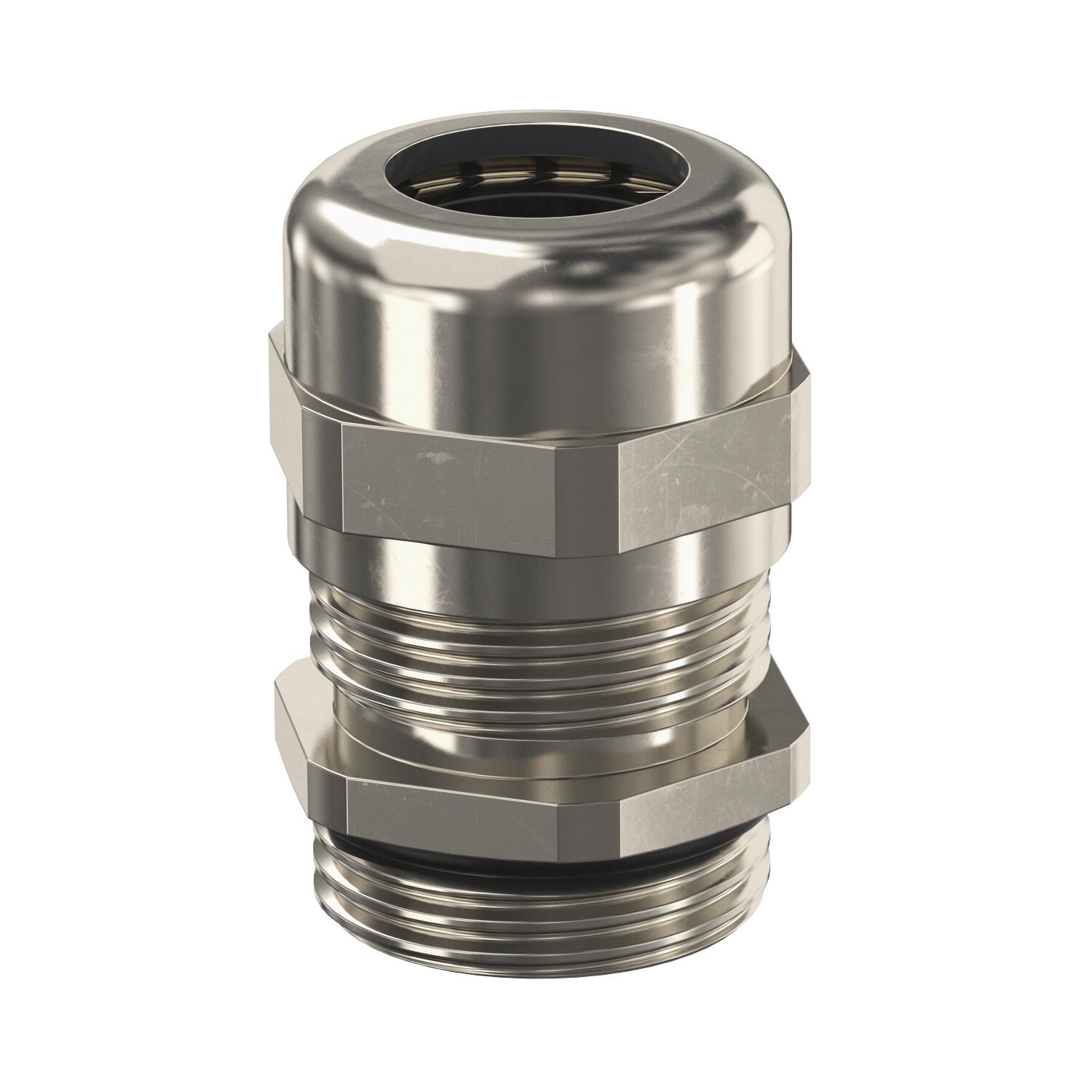

Cap nut cable gland, metric thread, silver grey, nickel-plated

Item no. 2086030 | EAN 4012195809418

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

With metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr, max. permitted ambient temperature -20 to +100°C.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no

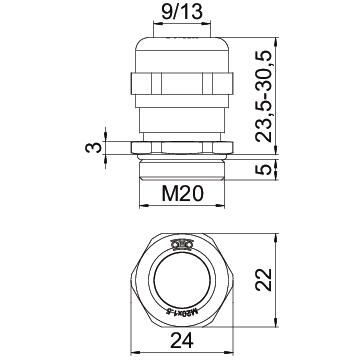

Dimension	M20
Dimension E	24 mm
Dimension L max.	27 mm
Dimension L1	6 mm
Dimension L2	3,5 mm
Dimension L3	16,5 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Hexagonal corner dimension	24 mm
Impact-resistant	no
Material	Brass
Permitted temperature range, max.	100 °C

Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	13 mm
Sealing area D, min.	9 mm
Sealing insert, multiple	no
Strain relief option	yes
Surface	Nickel-plated
Thread	M20 x 1,5
Thread length	6 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	3,5 Nm
Version for	Straight
WAF	22
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC VM12 MS	M12 x 1,5	no	2086018	piece	50 piece
V-TEC VM16 MS	M16 x 1,5	no	2086024	piece	50 piece
V-TEC VM20 MS	M20 x 1,5	no	2086030	piece	25 piece
V-TEC VM25 MS	M25 x 1,5	no	2086036	piece	25 piece
V-TEC VM32 MS	M32 x 1,5	no	2086042	piece	20 piece
V-TEC VM40 MS	M40 x 1,5	no	2086048	piece	5 piece
V-TEC VM50 MS	M50 x 1,5	no	2086054	piece	5 piece
V-TEC VM63 MS	M63 x 1,5	no	2086060	piece	5 piece
