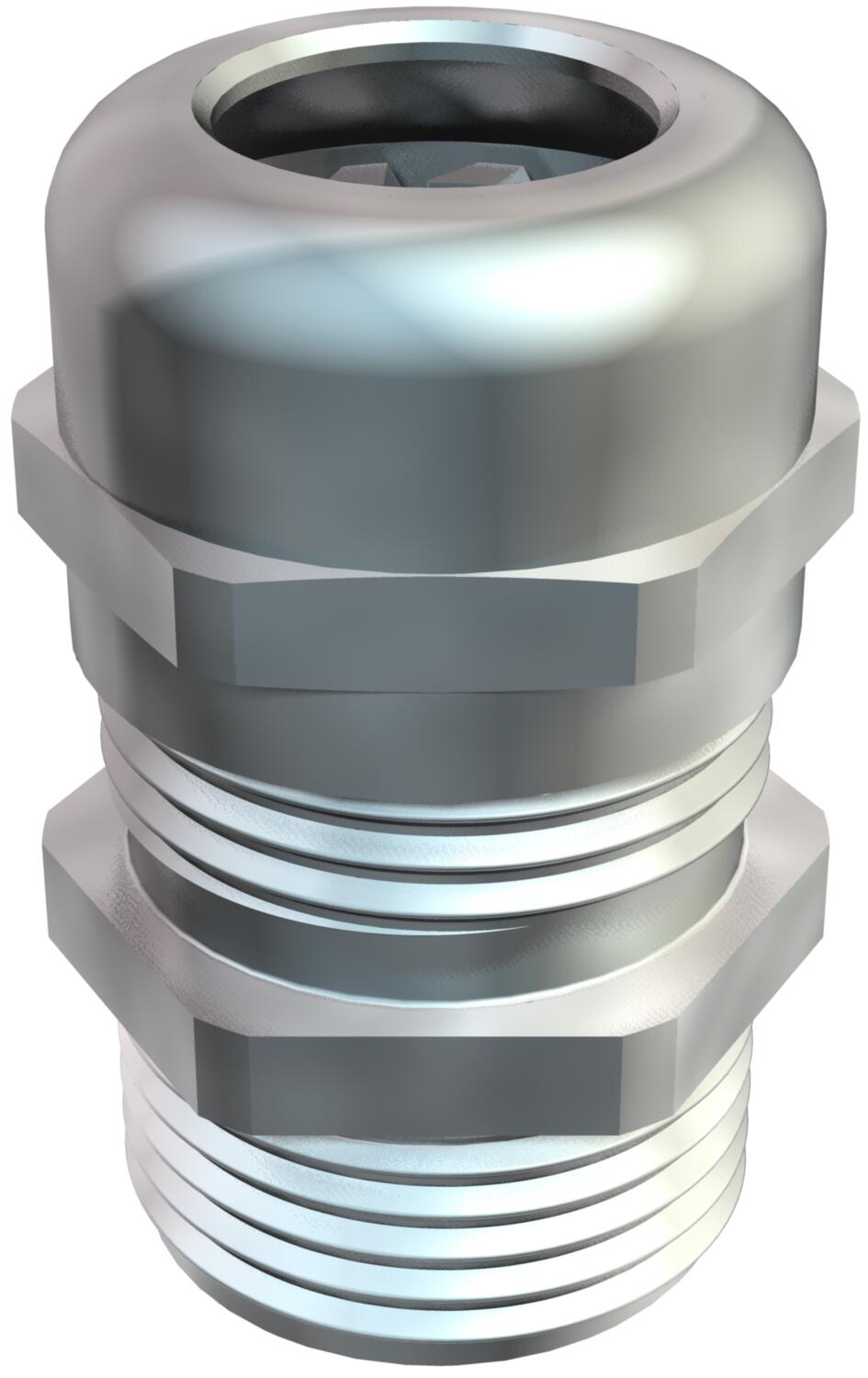

Cap nut cable gland, PG thread, long, nickel-plated

Item no. 2085771 | EAN 4012195841036

no
Product description

Product description

Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with long Pg connection thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.

Polyamide terminal insert.

Sealing ring of chloroprene/nitrile rubber.

O ring pre-mounted on connection thread.

Protection rating IP 68 at 5 bar: 1 hr.

Tested to DIN EN 62444.

With long connection thread.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread Pg
Technical data

Technical data

Bend protection no

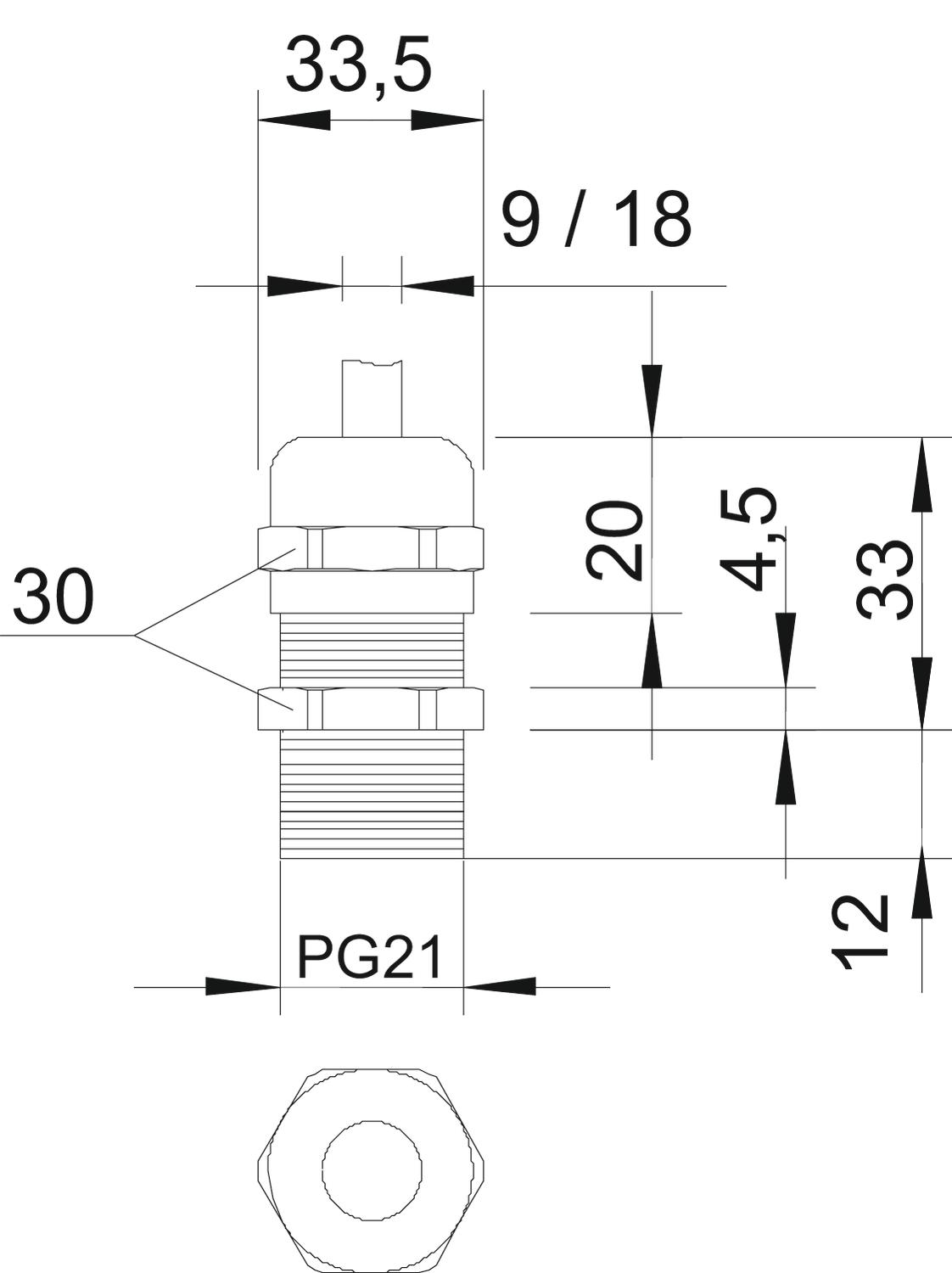

Dimension PG21
Dimension E 33,5 mm
Dimension L max. 33 mm
Dimension L1 12 mm
Dimension L2 4,5 mm
Dimension L3 20 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free no
Impact-resistant no
Material Brass
Nominal thread size 21
Permitted temperature range, max. 100 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 18 mm
Sealing area D, min. 14 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Surface Nickel-plated
Thread Pg 21
Thread length 12 mm
Thread type PG
Type of seal Sealing ring
Version for Straight
WAF 30
With locknut no
All types

All types

Types Thread Sealing insert, multiple Item no. Quantity SSU
V-TEC L PG9 MS Pg 9 no 2085739
50 piece
V-TEC L PG11 MS Pg 11 no 2085747
50 piece
V-TEC L PG13 MS Pg 13,5 no 2085755
50 piece
V-TEC L PG16 MS Pg 16 no 2085763
25 piece
V-TEC L PG21 MS Pg 21 no 2085771
25 piece
V-TEC L PG29 MS Pg 29 no 2085798
10 piece
V-TEC L PG48 MS Pg 48 no 2085836
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, PG thread Locknut, PG thread 169 MS PG21 2091216
100 piece
