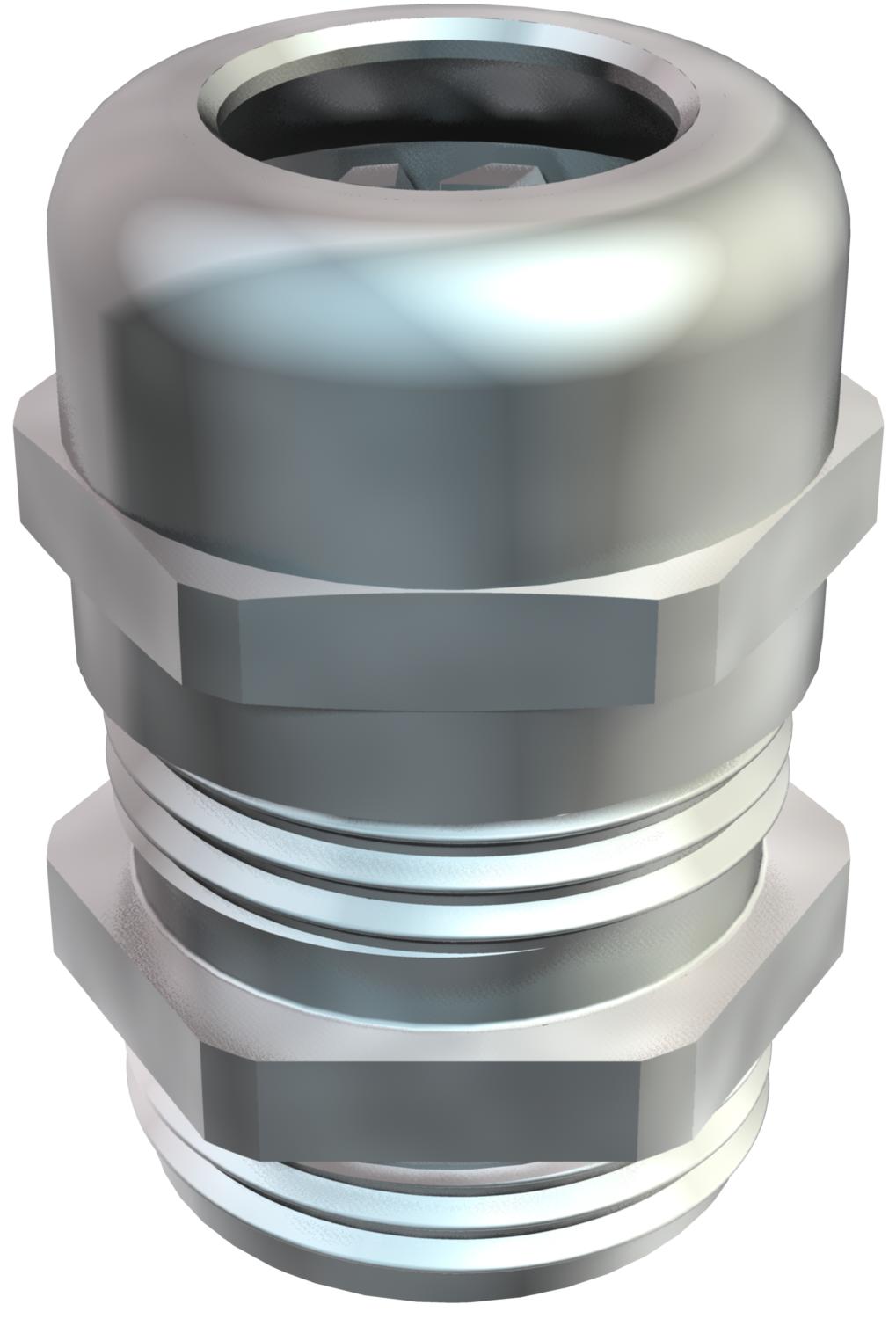

Cap nut cable gland, PG thread, nickel-plated

Item no. 2085607 | EAN 4012195189916

no
Product description

Product description

Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.

Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444.

"Normal" connection thread length, according to DIN 46320.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread Pg
Technical data

Technical data

Bend protection no
Dimension PG7
Dimension E 15,5 mm
Dimension L max. 20 mm
Dimension L1 5 mm
Dimension L2 3 mm
Dimension L3 12 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free no
Impact-resistant no
Material Brass
Nominal thread size 7
Permitted temperature range, max. 100 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 6,5 mm
Sealing area D, min. 2,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Surface Nickel-plated
Thread Pg 7
Thread length 5 mm
Thread type PG
Type of seal Sealing ring
Version for Straight
WAF 14
With locknut no
All types

All types

Types Thread Sealing insert, multiple Item no. Quantity SSU
V-TEC PG7 MS Pg 7 no 2085607
50 piece
V-TEC PG9 MS Pg 9 no 2085615
50 piece
V-TEC PG11 MS Pg 11 no 2085623
50 piece
V-TEC PG13 MS Pg 13,5 no 2085631
50 piece
V-TEC PG16 MS Pg 16 no 2085658
25 piece
V-TEC PG21 MS Pg 21 no 2085666
25 piece
V-TEC PG29 MS Pg 29 no 2085674
20 piece
V-TEC PG36 MS Pg 36 no 2085682
10 piece
V-TEC PG42 MS Pg 42 no 2085690
5 piece
V-TEC PG48 MS Pg 48 no 2085704
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

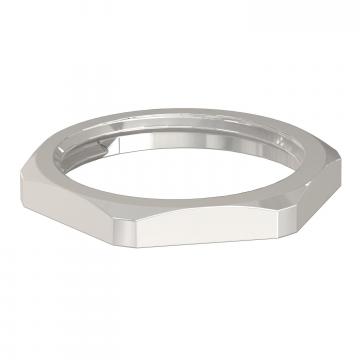

Locknut, PG thread Locknut, PG thread 169 MS PG 7 2091070
100 piece
Downloads

Download

V-TEC PG7 MS / 2085607
Download
