Ceiling hook

Item no. 3453820 | EAN 4012195513315

3453820 / 948 TG6
6 mm
70 mm
46 mm
1 kN
M6
Product description

Product description

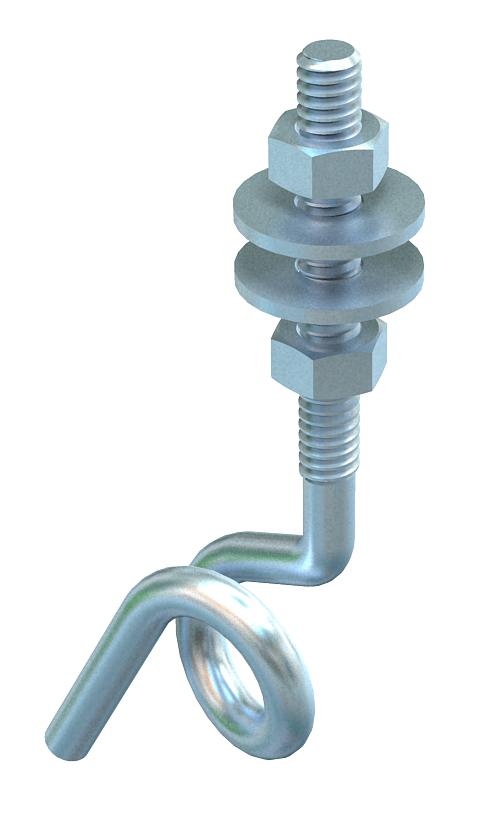

Tightly wound ceiling hook. Including two large washers Ø18 mm and M6 nuts.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 1 kN

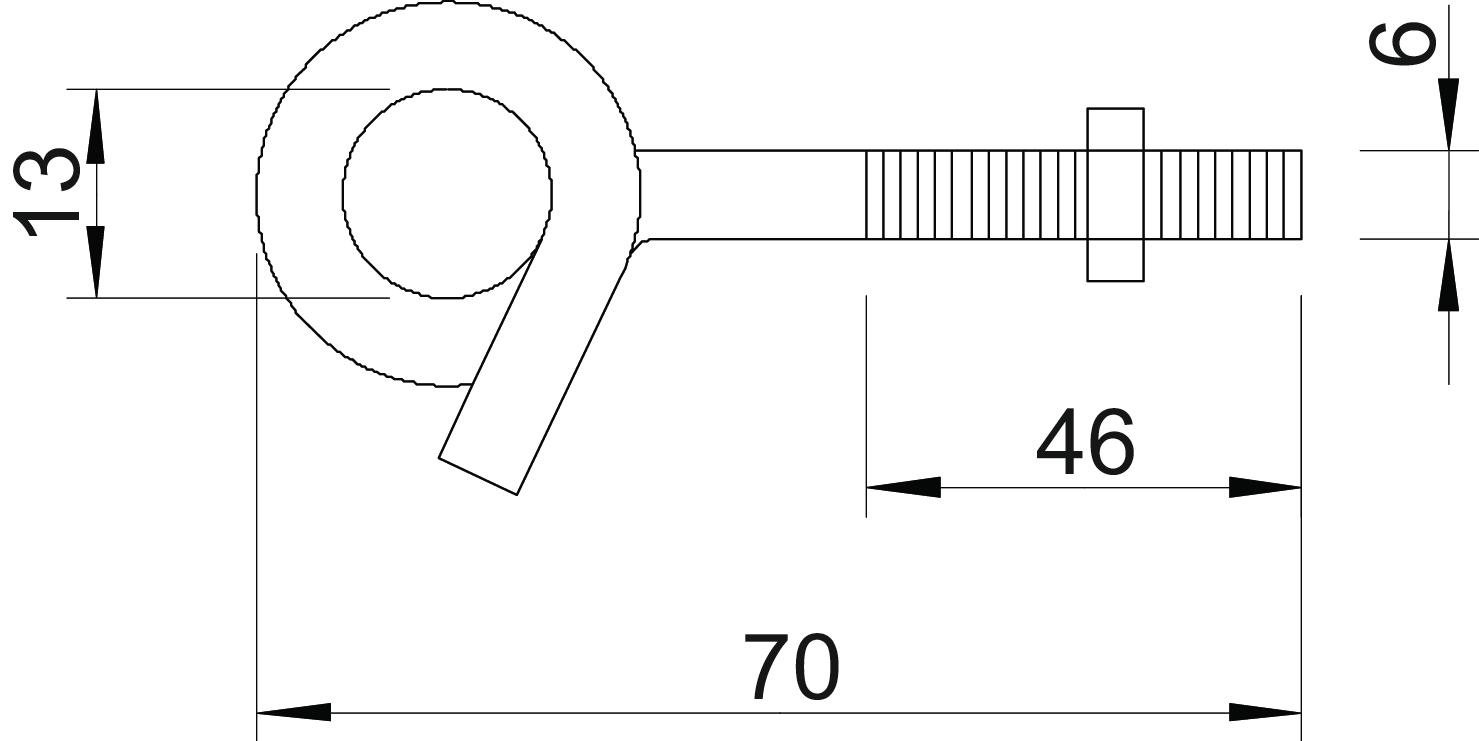

Dimension M6x70mm
Dimension d 6 mm
Dimension d Ø 13 mm
Dimension L 70 mm
Dimension L1 46 mm
hook diameter 13 mm
Length 70 mm
Material Steel
Material diameter 6 mm
Plastic-covered no
Surface Electrogalvanized
Thread M6
Thread length 40 mm
Washer Ø 18 mm
All types

All types

Types Material diameter Dimension L Dimension L1 Breaking load Thread Item no. Quantity SSU
948 TG6 6 mm 70 mm 46 mm 1 kN M6 3453820
25 piece
