Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT 82 | 90 | 5

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186089 | EAN 4012196848829

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

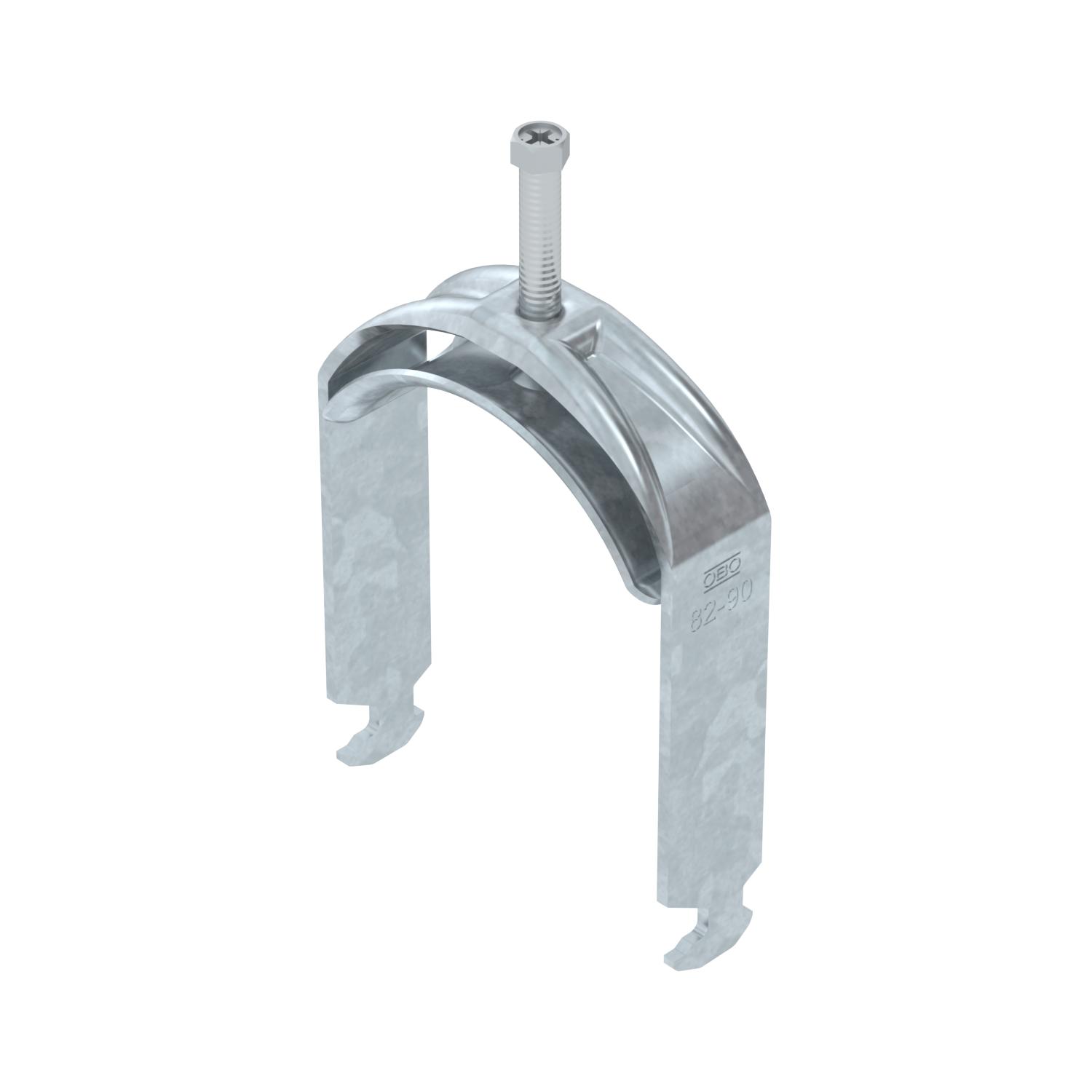

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. The counter-sleeve must be ordered separately.

Technical data

Technical data

Clamping range D, max.	90 mm
Clamping range D, min.	82 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,5636 kg CO₂e / 1 Piece

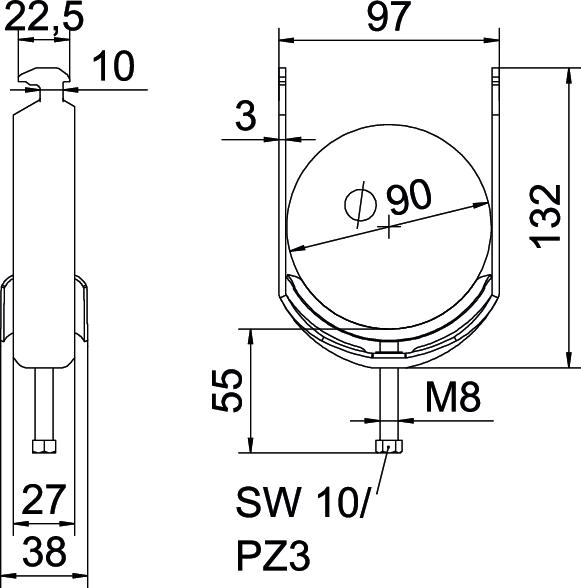

Dimension	82-90mm
Dimension A	27 mm
Dimension B	97 mm
Dimension C	38 mm
Dimension G (mm)	M8
Dimension H	132 mm
Dimension L	55 mm
Dimension t	3 mm
For pipe diameter, max.	90 mm
For pipe diameter, min.	82 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Height	132 mm
Length	27 mm

Length of external dimensions	38 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	3 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	97 mm
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H1-M-12 FT	8 mm	12 mm	3 Nm	1186002	piece	100 piece
BS-H1-M-16 FT	12 mm	16 mm	3 Nm	1186009	piece	100 piece
BS-H1-M-22 FT	16 mm	22 mm	3 Nm	1186016	piece	100 piece
BS-H1-M-28 FT	22 mm	28 mm	3 Nm	1186022	piece	100 piece
BS-H1-M-34 FT	28 mm	34 mm	3 Nm	1186029	piece	100 piece
BS-H1-M-40 FT	34 mm	40 mm	3 Nm	1186036	piece	100 piece
BS-H1-M-46 FT	40 mm	46 mm	5 Nm	1186042	piece	100 piece
BS-H1-M-52 FT	46 mm	52 mm	5 Nm	1186049	piece	100 piece
BS-H1-M-58 FT	52 mm	58 mm	5 Nm	1186056	piece	100 piece
BS-H1-M-64 FT	58 mm	64 mm	5 Nm	1186062	piece	100 piece
BS-H1-M-70 FT	64 mm	70 mm	5 Nm	1186069	piece	50 piece
BS-H1-M-76 FT	70 mm	76 mm	5 Nm	1186076	piece	25 piece
BS-H1-M-82 FT	76 mm	82 mm	5 Nm	1186082	piece	25 piece
BS-H1-M-90 FT	82 mm	90 mm	5 Nm	1186089	piece	25 piece
BS-H1-M-100 FT	90 mm	100 mm	5 Nm	1186097	piece	25 piece
