Product description

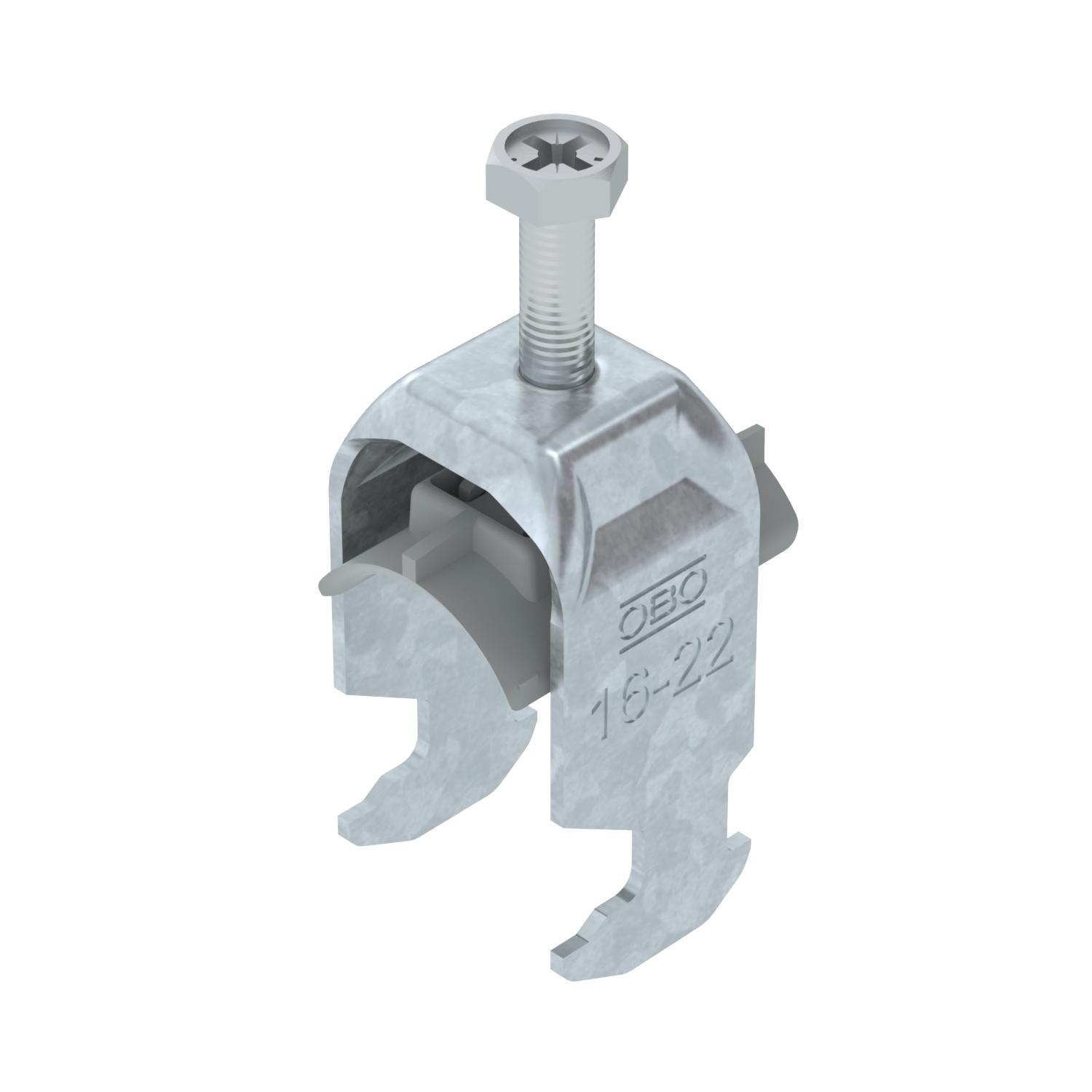

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data
Clamping range D, max. 22 mm Clamping range D, min. 16 mm Dimension 16-22mm For pipe diameter, max. 22 mm For pipe diameter, min. 16 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Length of external dimensions 34 mm Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Plate thickness 1,5 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 With counter-trough no With plastic trough yes Dimensions
Dimension A 22,5 mm Dimension B 27 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 52 mm Dimension L 35 mm Dimension t 1,5 mm Height 52 mm Length 22,5 mm Width 27 mm - All types
-
All types
- Downloads
-
Data sheet BS-H1-K-22 FT / 1186216 , 0.23MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity BS-H1-K-22 FT / 1186216 , 0.15MB , pdfREACH Declaration of conformity BS-H1-K-22 FT / 1186216 , 0.12MB , pdfRoHS Declaration of conformity BS-H1-K-22 FT / 1186216 , 0.12MB , pdfMounting instructions Bügelschelle H-Fuß Kunststoff , 3.08MB , pdf
