Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT 22 | 28 | 3
morepic-1 morepic-2

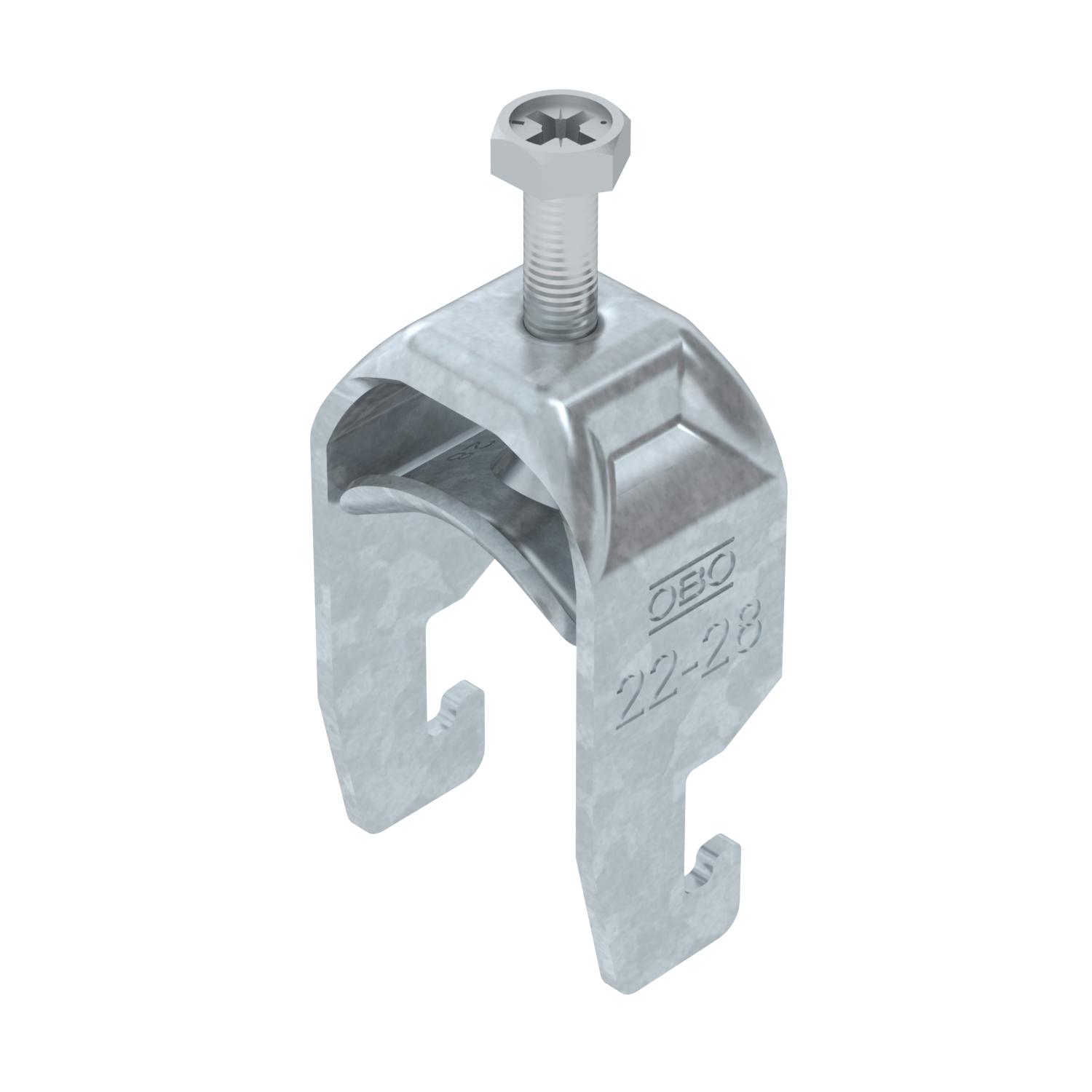

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186522 | EAN 4012196849901

Product description

Product description

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Function maintenance class E30
  • Function maintenance class E90

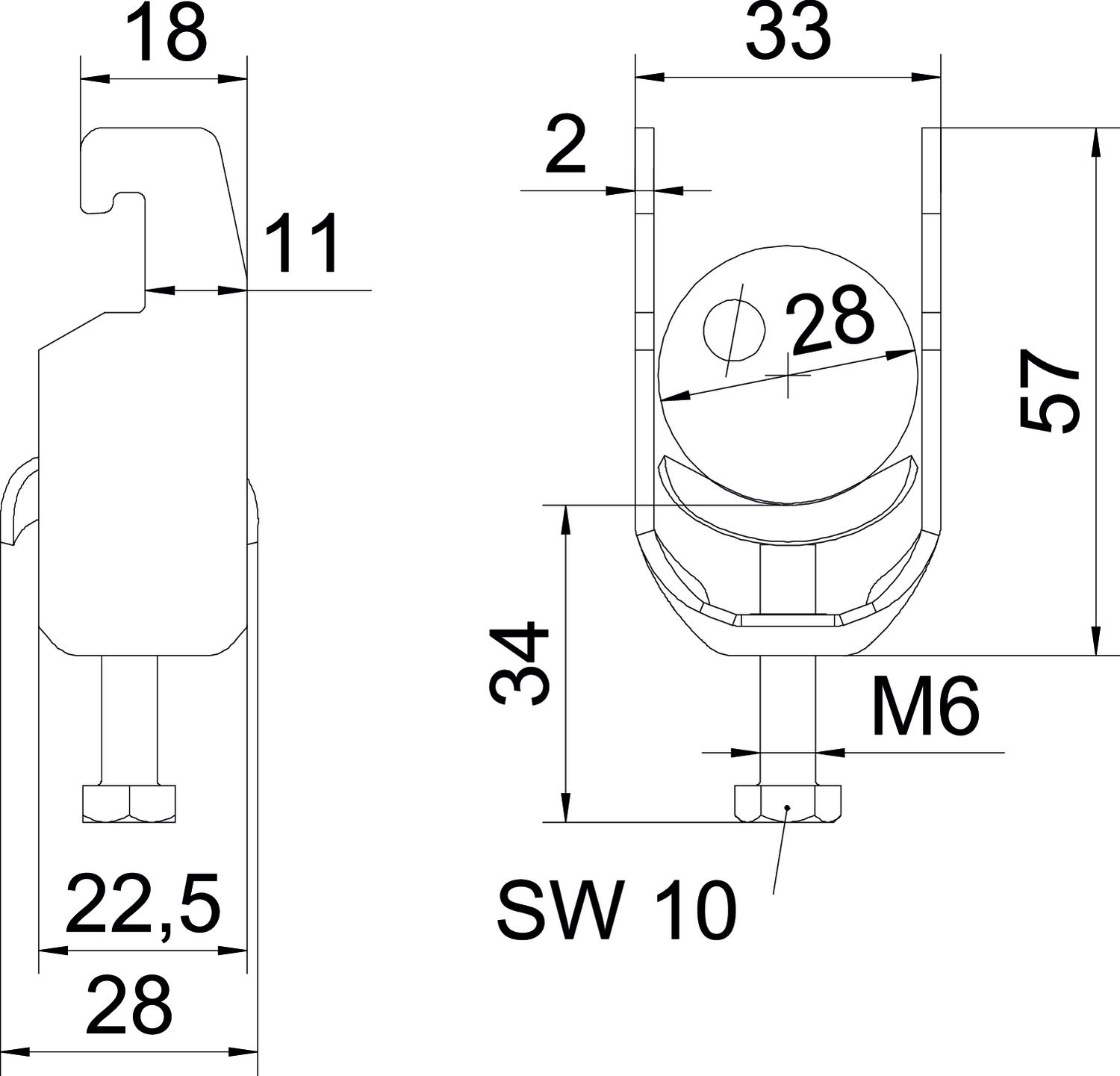

Technical data

Technical data

Clamping range D, max. 28 mm
Clamping range D, min. 22 mm
Dimension 22-28mm
Dimension A 22,5 mm
Dimension B 33 mm
Dimension C 28 mm
Dimension G (mm) M6
Dimension H 57 mm
Dimension L 34 mm
Dimension t 2 mm
For pipe diameter, max. 28 mm
For pipe diameter, min. 22 mm
for rail with slot width (with interval), max. 22 mm
for rail with slot width (with interval), min. 18 mm
Halogen-free yes
Height 57 mm
Length 22,5 mm
Length of external dimensions 28 mm
Maintain electrical functions yes
Material Steel
Material addition Steel
Material of trough Steel
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 1
Plate thickness 2 mm
Slot width 10 mm
Surface Hot-dip galvanised
Surface addition hot galvanised
Thread M6
Width 33 mm
With counter-trough no
With metal trough yes
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-U1-M-12 FT 8 mm 12 mm 3 Nm 1186502
100 piece
BS-U1-M-16 FT 12 mm 16 mm 3 Nm 1186509
100 piece
BS-U1-M-22 FT 16 mm 22 mm 3 Nm 1186516
100 piece
BS-U1-M-28 FT 22 mm 28 mm 3 Nm 1186522
100 piece
BS-U1-M-34 FT 28 mm 34 mm 3 Nm 1186529
100 piece
BS-U1-M-40 FT 34 mm 40 mm 3 Nm 1186536
100 piece
BS-U1-M-46 FT 40 mm 46 mm 5 Nm 1186542
100 piece
BS-U1-M-52 FT 46 mm 52 mm 5 Nm 1186549
100 piece
BS-U1-M-58 FT 52 mm 58 mm 5 Nm 1186556
100 piece
BS-U1-M-64 FT 58 mm 64 mm 5 Nm 1186562
100 piece
BS-U1-M-70 FT 64 mm 70 mm 5 Nm 1186569
50 piece
BS-U1-M-76 FT 70 mm 76 mm 5 Nm 1186576
25 piece
BS-U1-M-82 FT 76 mm 82 mm 5 Nm 1186582
25 piece
BS-U1-M-90 FT 82 mm 90 mm 5 Nm 1186589
25 piece
BS-U1-M-100 FT 90 mm 100 mm 5 Nm 1186597
25 piece
